Crest Audio PRO7200 - Block Diagram

p. 26

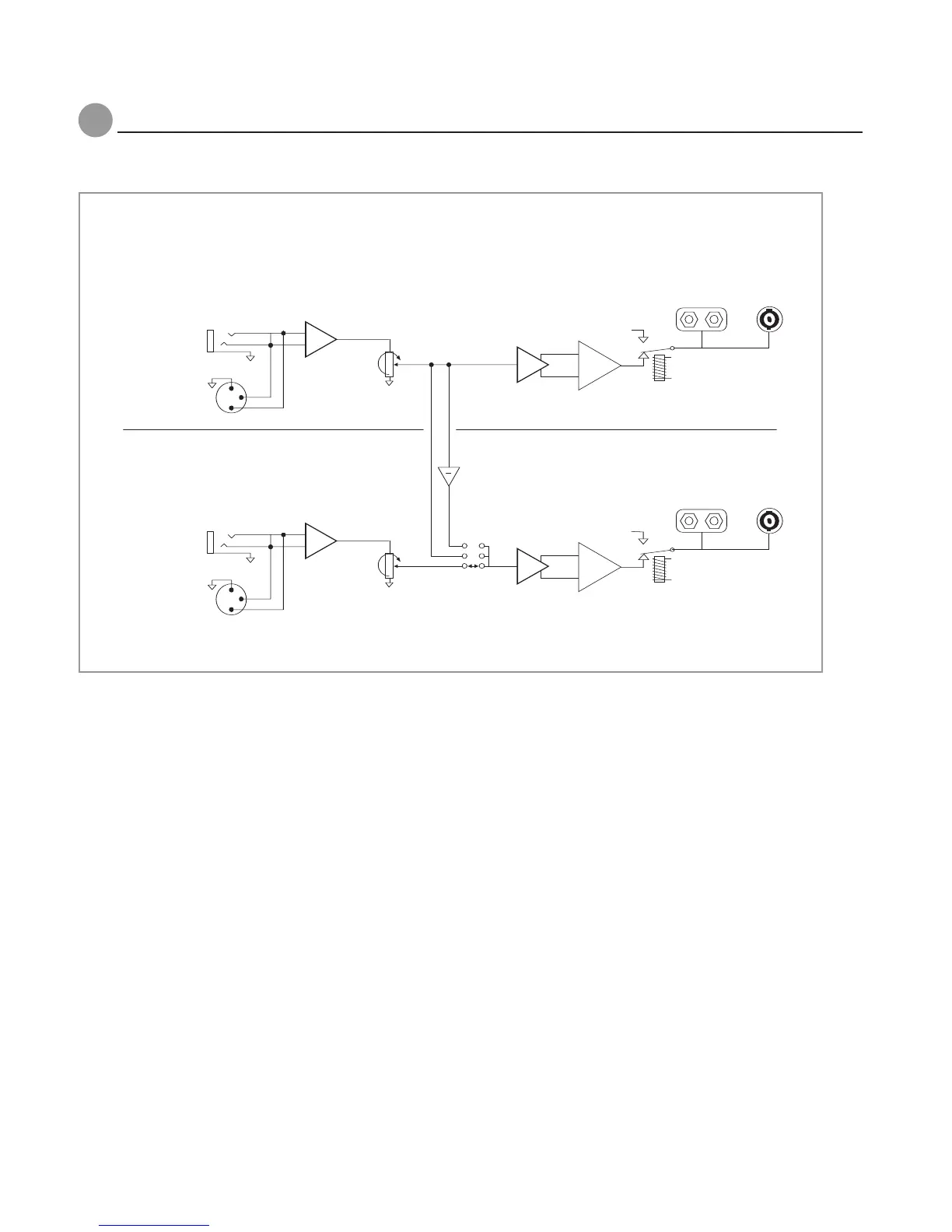

Block Diagram
b
A
ATTENUATOR
OUTPUT STAGE
OUTPUT RELAY
1
3
2
1
3
2
OUTPUT STAGE
OUTPUT RELAY
MODE SWITCH
A
B
C
A: STEREO
B: PARALLEL
C: BRIDGE
B
ATTENUATOR
Channel A
Inputs
Phoenix
Combicon
1/4”
TRS
Female
3-Pin XLR
Phoenix
Combicon
1/4”
TRS
Female
3-Pin XLR
Channel A
Outputs
5-Way
Binding Posts
Neutrik
Speakon
5-Way
Binding Posts
Neutrik
Speakon
Channel B
Inputs
Channel B
Outputs
SEE SECTION 5 FOR
OUTPUT CONNECTION DETAILS
