2.2.2 Changing emission filters and dichroic mirrors

Changing emission filters:

In order to change or add new emission filter sets follow the procedure below. Please refer to section 2.3.2

for both dichroic wheel and emission wheel positioning for filter exchange.

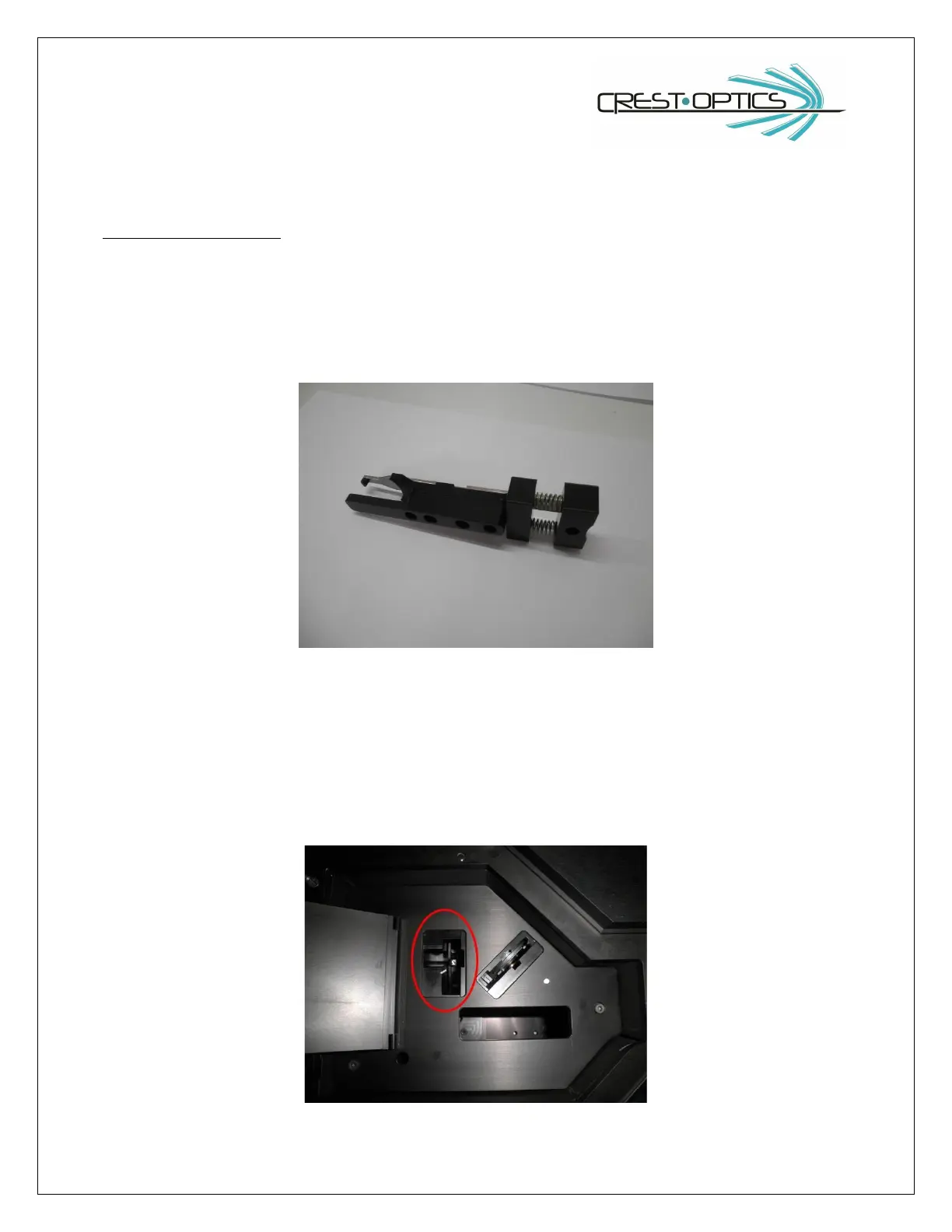

Figure: Emission Extraction tool

Insert the filter:

1. Locate the emission slot circled in the figure below
