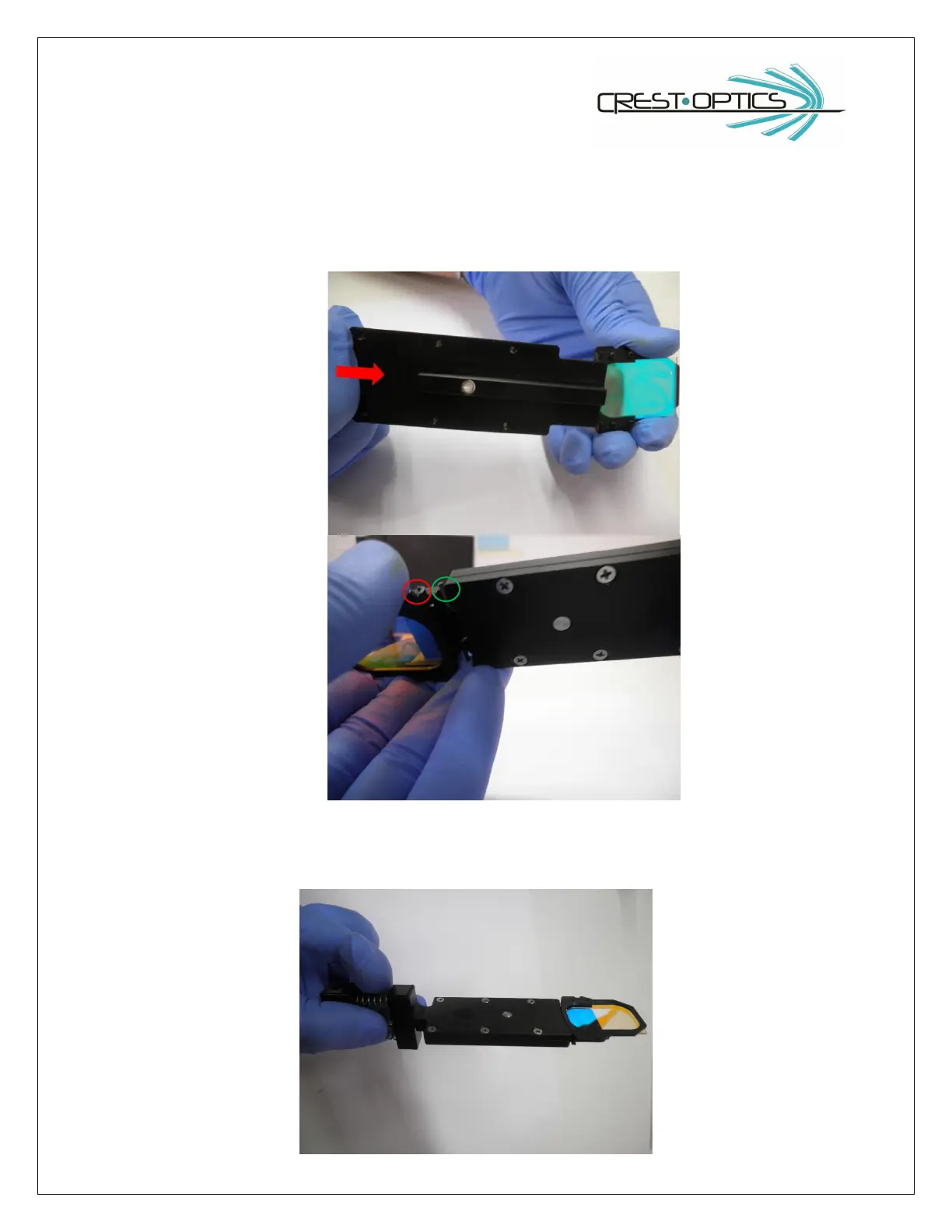

2. Push on the top of the dichroic tool and keeping it pushed place the dichroic mirror in it as shown in
figure below (pay attention to mount it with the coated surface toward the excitation light).
3. Release the tool in order to grab the filter in steady position. The two metal hooks (green circle above)
must grab the two corresponding hooks on dichroic holder (red circle above)
