crest Optics X-Light V2 TP - Page 20

20

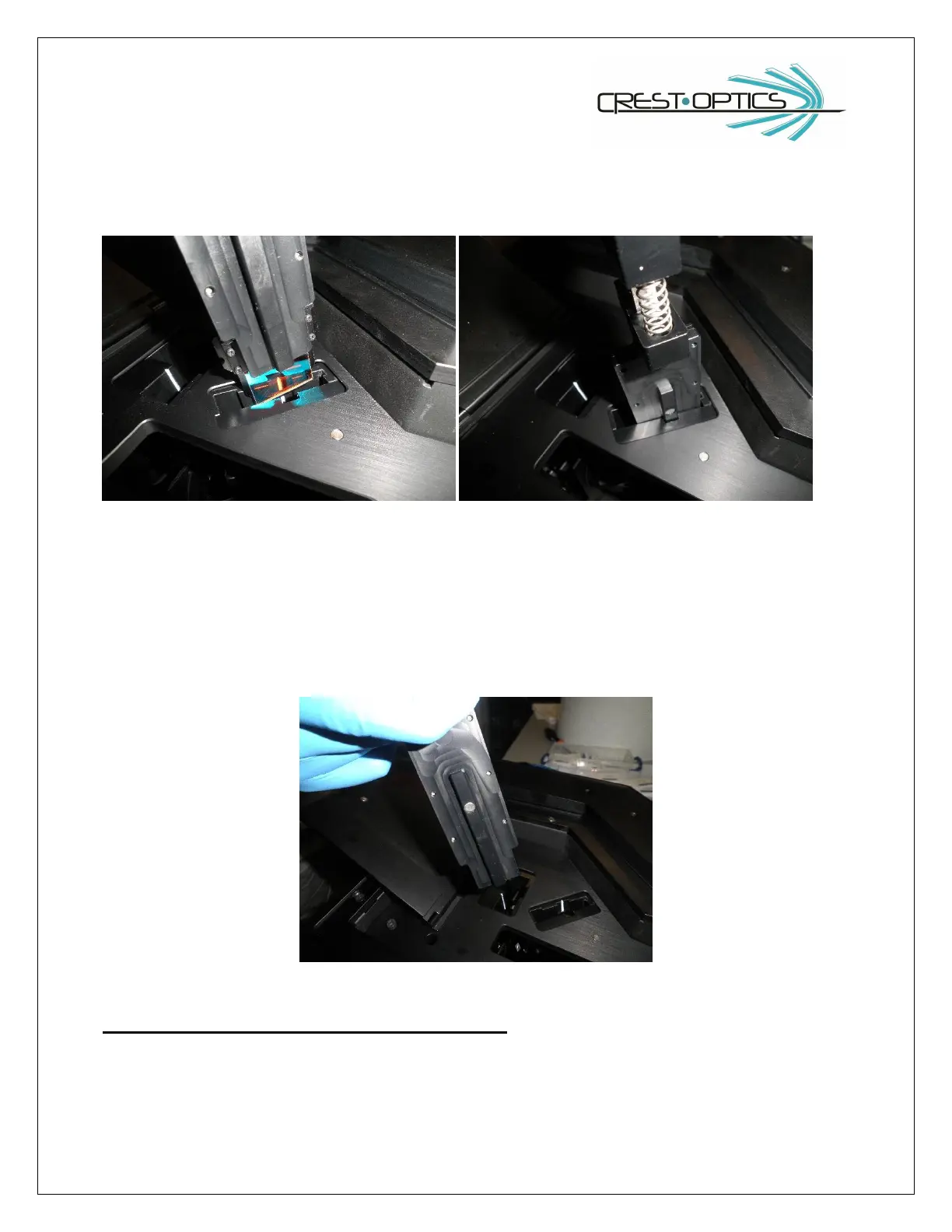

4. Insert the tool all the way down in the slot following the slot entry shape
5. Finally, push on the top of the tool again and extract it. The dichroic is correctly positioned into the
wheel.
In order to extract a filter follow the inverse procedure:
Insert the tool with the button on top pressed, once in position all the way down release the button and extract
the filter
