XY adjustment
Additionally, verify the beam spot alignment at the entrance of the objective through the XY Gimbal
adjustment.

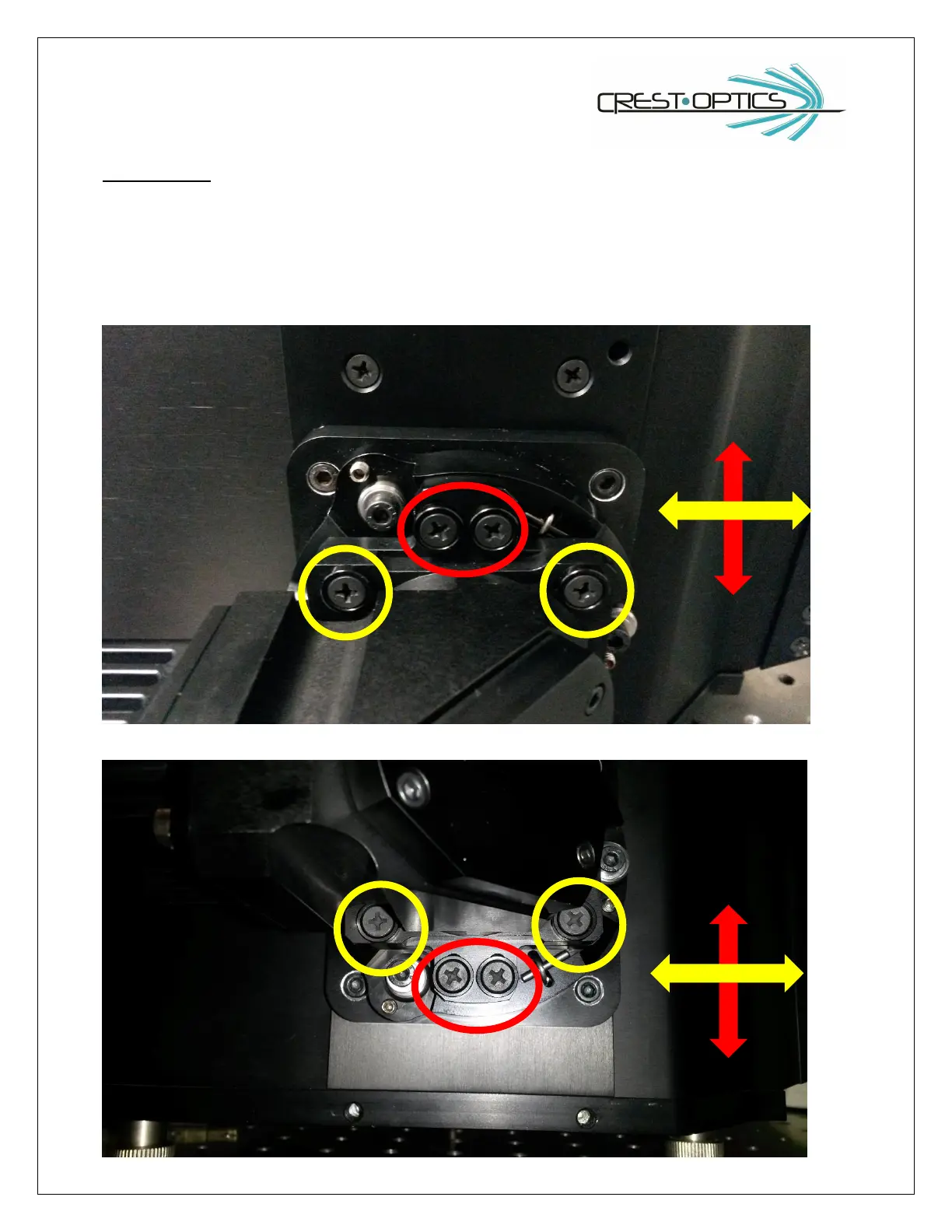

1. You have to adjust one axis at a time. You have 4 screws for X axis (circled in red) and 4 screws
for the Y axis (circled in yellow). The red and yellow arrows show the corresponding adjustment
directions. See pictures below
