35

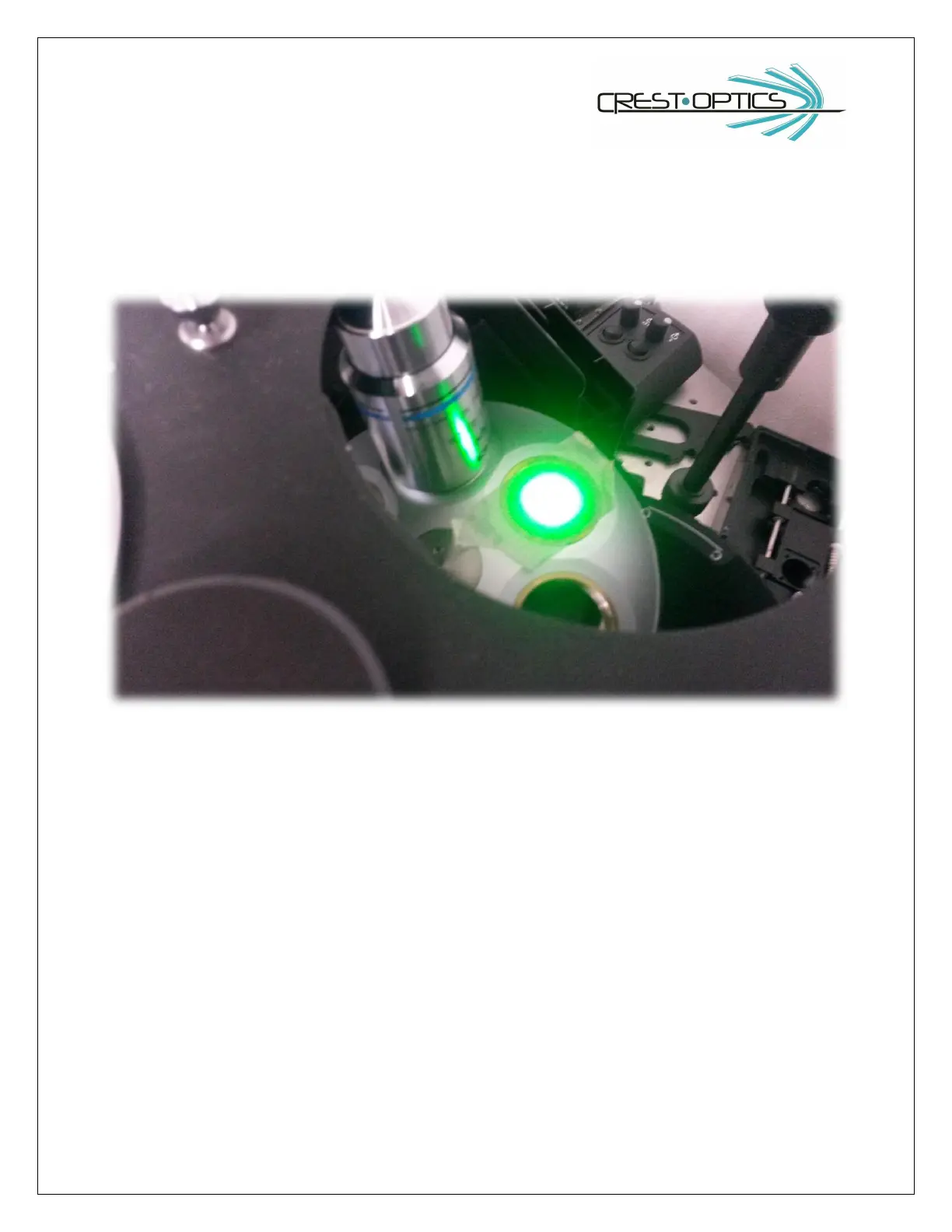

2. Adjust Gimbal overall position <XY> until you center the spot at the entrance of the objective
3. Tighten XY adjustment screws to fix the gimbal mount excitation position.
N.B. An iteration of both angle adjustment and XY adjustment could be needed to optimize alignment
