CRESTRON

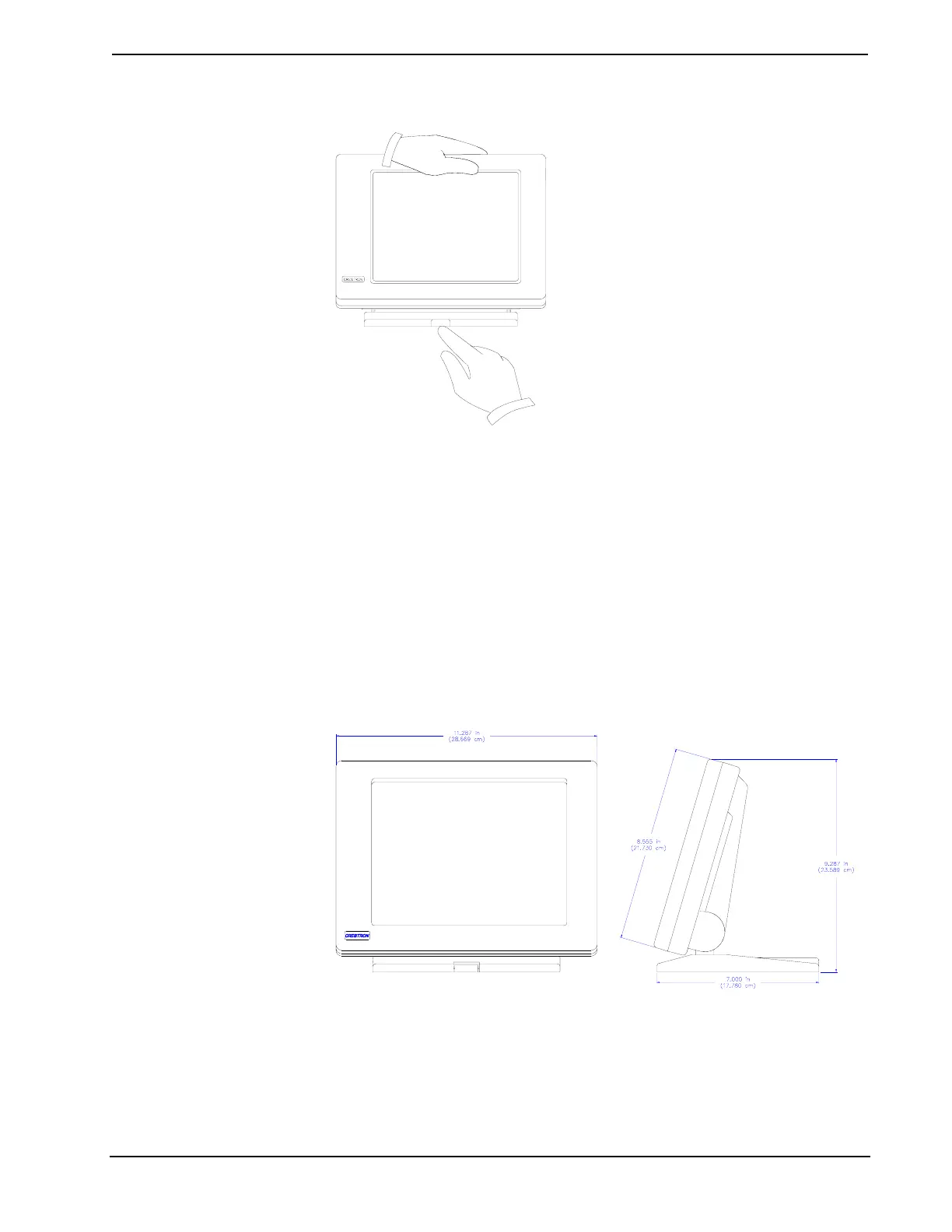

Hand Position for Tilting Touchpanel to Horizontal
Physical Description
Touchpanels
The 10.4-inch (26.4 cm) touch sensitive viewing screen is located on the front of the
Series 3200 touchpanel. The electronic hardware is housed in a high impact, black
molded plastic enclosure for the adjustable tiltcase configurations, shown after this
paragraph. This touchpanel is designed to be placed on a counter. It possesses a
hinged base, which can tilt from 0 to 70 degrees. Depress the button located at the
front of the base when pivoting the touchpanel to the horizontal position. A 6-pin, 6-
position RJ11 modular jack is located at the rear of the adjustable tiltcase base. Use
the cable assembly (supplied) to connect the touchpanel to the CN-RJ11 (supplied),
which attaches directly to the Cresnet network.
Physical Views of Tiltcase Series 3200 Touchpanel (CN-RJ11 not shown)
FRONT VIEW SIDE VIEW
The lectern mount configuration, shown after this paragraph, is denoted with the
letter “L” at the end of the nomenclature. The panel is housed in a black metal box
topped with a plastic cover. The 15-pin female high density D sub video output,
Operations Guide - DOC. 5725 Series 3200 Touchpanels 3
