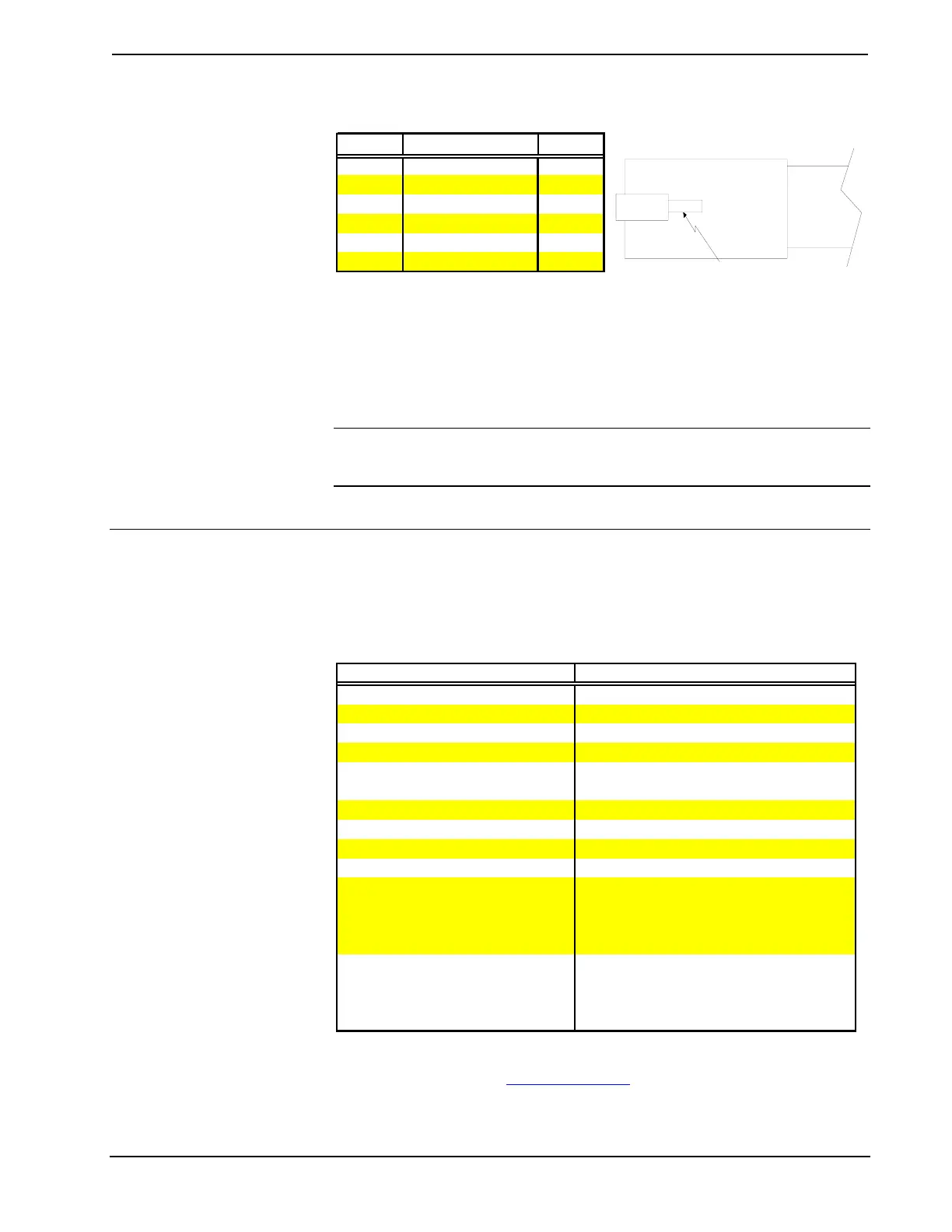

Page #9 background imageLoading...
Page #9 background image
CRESTRON
Six-Pin Jack Pinout (for CN-RJ11)
PIN # SIGNAL COLOR
1 +24 V (Network) WHT
2 +24 V (Network) BLK
3 Y (Data) RED
4 Z (Data) GRN
5 GND (Network) YEL
6 GND (Network) BLU
TAB (VISIBLE, ON TOP)
#1
Configuration Differences
There are two Series 3200 configurations available and selection depends on type of
installation (tiltcase or lectern mount). Tiltcase panels are referred to as the CT-3200
and lectern-mount panels are called CT-3200L. Each configuration has a 256-color
display and 1M byte of flash memory.
NOTE: Wall-mount and rack-mount kits are available options that can be purchased
with the lectern-mount configuration. Parts and instructions are provided with each
kit.
Leading Specifications
The table below and on the next page provides a summary of leading specifications
for the Series 3200 touchpanels. Dimensions and weight are rounded to the nearest
hundredth unit.
Leading Specifications for Series 3200 Touchpanels
SPECIFICATION DETAILS
Power Requirements
16 Watts, 24 VDC 0.66 Amp
SIMPL Windows
Version 1.21.04 or later*
CNX Operating System
Version 5.01.09x or later
CNX Monitor
Version 2.00 or later
CNMS, CNRACK, CNLCOMP
Version 3.16.08 or later
Operating System
ST-CP Operating System
Version 4.00.29 or later
ST-CP Monitor
Version 1.29 or later
VisionTools Pro (VT Pro)
Version 1.1.3 or later*
Memory
1 Mbyte flash memory
CT-3200, Tiltcase Model
Height: 9.29 in (23.59 cm)
Dimensions & Weight
Width: 11.29 in (28.67 cm)
(without CN-RJ11)
Depth: 7.00 in (17.78 cm)
Weight: 5.65 lb (2.56 kg)
CN-RJ11
Height: 2.00 in (5.08 cm)
Dimensions & Weight
Width: 3.25 in (8.26 cm)
Depth: 1.24 in (3.14 cm)
Weight: 0.40 lb (0.18 kg)
* The latest software versions can be obtained from the Software Downloads page
of Crestron’s website (www.crestron.com)
. New users are required to register in
order to obtain access to the FTP site.
Operations Guide - DOC. 5725 Series 3200 Touchpanels 5
