Programming with SIMPL Windows
NOTE: The following assumes that the reader has knowledge of SIMPL Windows.
If not, refer to the extensive help information provided with the software.
NOTE: The following are acceptable file extensions for programs that include a
infiNET dimmer, developed for specific control system types:
.smw: projectname.smw (SIMPL Windows source file)
.spz: projectname.spz (compiled file for 2-series)
NOTE: In the following description, the PAC2 control system is used.
SIMPL Windows is Crestron's software for programming Crestron control systems.
It provides a well-designed graphical environment with a number of workspaces
(i.e., windows) in which a programmer can select, configure, program, test, and
monitor a Crestron control system. SIMPL Windows offers drag and drop
functionality in a familiar Windows
®
environment.
This section describes a sample SIMPL Windows program that includes a
C2N-MNETGW gateway and CLW-DIM1RF dimmer.
Configuration Manager is where programmers “build” a Crestron control system by
selecting hardware from the Device Library. In Configuration Manager, drag the
PAC2 from the Control Systems folder of the Device Library and drop it in the upper
pane of the System Views. The PAC2 with its associated communication ports is
displayed in the System Views upper pane.

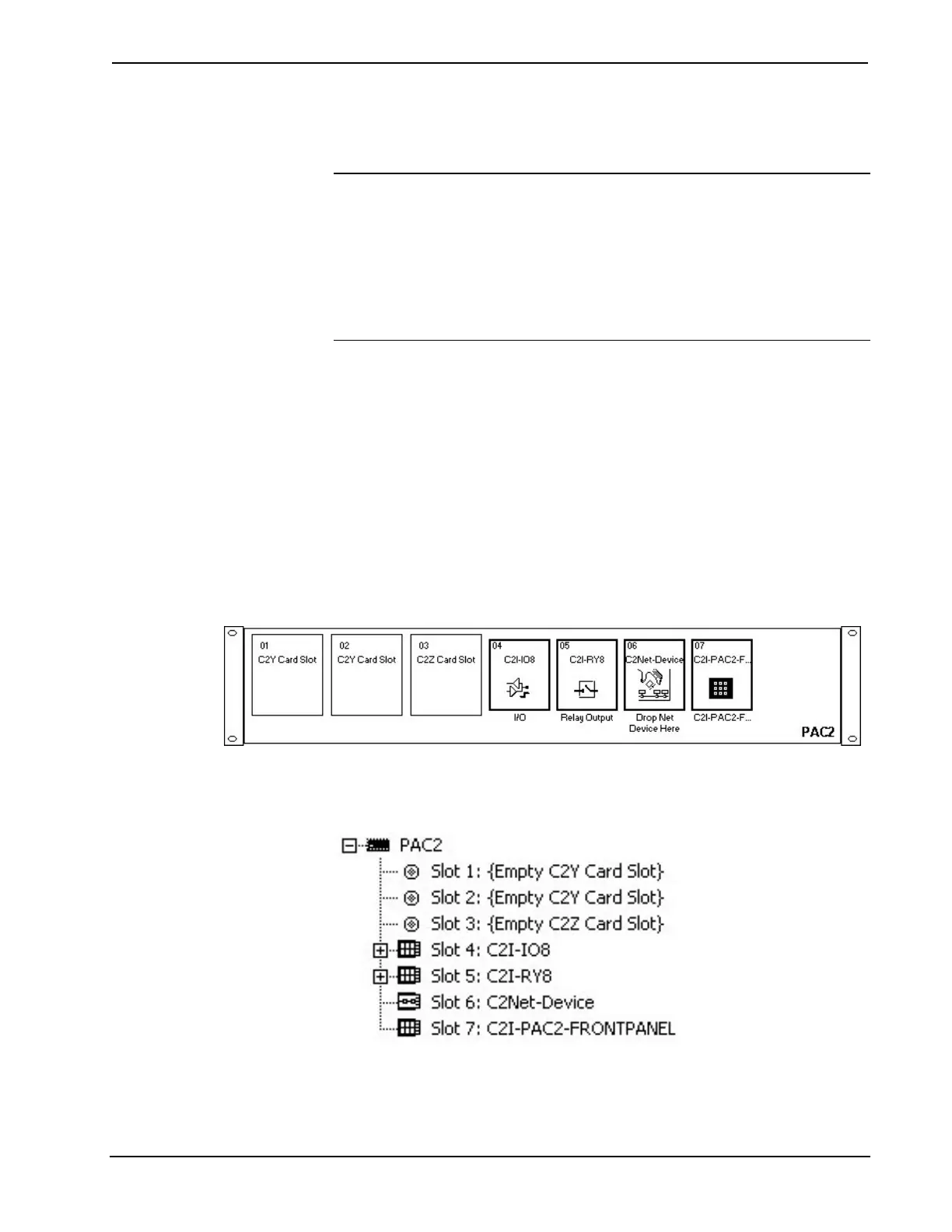

PAC2 System View
The System Views lower pane displays the PAC2 system tree. This tree can be
expanded to display and configure the communications ports.
Expanded PAC2 System Tree
