infiNET™ Dimmers Crestron CLW-DIM1/4RF, -DIMS1/4RF, -SLVD1RF
Physical Description
The -DIM1RF and -DIMS1RF have a light emitting diode (LED) with adjustable
brightness (via Crestron programming software), a rocker button, and a three-
position mode selection switch as shown in the following diagrams. The button may
be pushed at the top or bottom to perform certain functions. Pushing the button in the
middle does not do anything. The function of the pushbutton is determined by the
position of the mode selection switch. For more information, refer to “Operation” on
page 9.

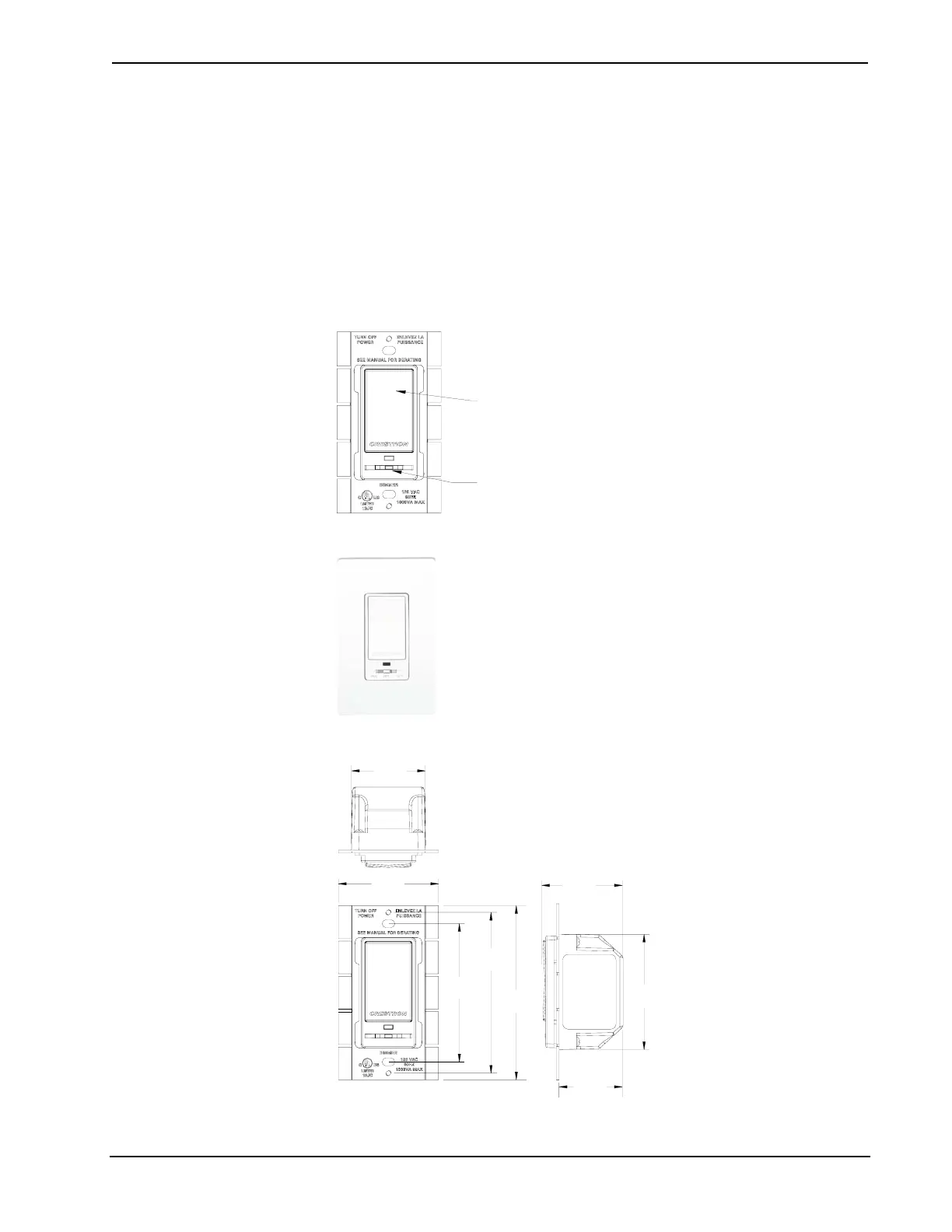

Parts of CLW-DIM1RF and -DIMS1RF
RUN
SET OFF
Button
Mode Selection Switch
CLW-DIM1RF/-DIMS1RF Shown in White
Physical View of CLW-DIM1RF/-DIMS1RF (Clockwise from Top; Top, Side, and Front)
RUN SET OFF
1.75 in
(4.45 cm)
2.38 in
(6.03 cm)
3.28 in
(8.32 cm)
3.81 in
(9.68 cm)
4.13 in
(10.48 cm)
1.88 in
(4.77 cm)
2.70 in
(6.86 cm
)
1.50 in
(3.81 cm)
4 • infiNET Dimmers: Crestron CLW-DIM1/4RF, -DIMS1/4RF, -SLVD1RF Operations Guide - DOC. 6396
