Crestron CLW-DIM1/4RF, -DIMS1/4RF, -SLVD1RF infiNET™ Dimmers
The -DIM4RF and -DIMS4RF have a light emitting diode (LED) with adjustable
brightness (via Crestron programming software), four pushbuttons, and a three-
position mode selection switch as shown in the following diagrams. Each of the
buttons may be pushed to perform certain functions. The function of each pushbutton
is determined by the position of the mode selection switch. For more information,
refer to “Operation” on page 9.

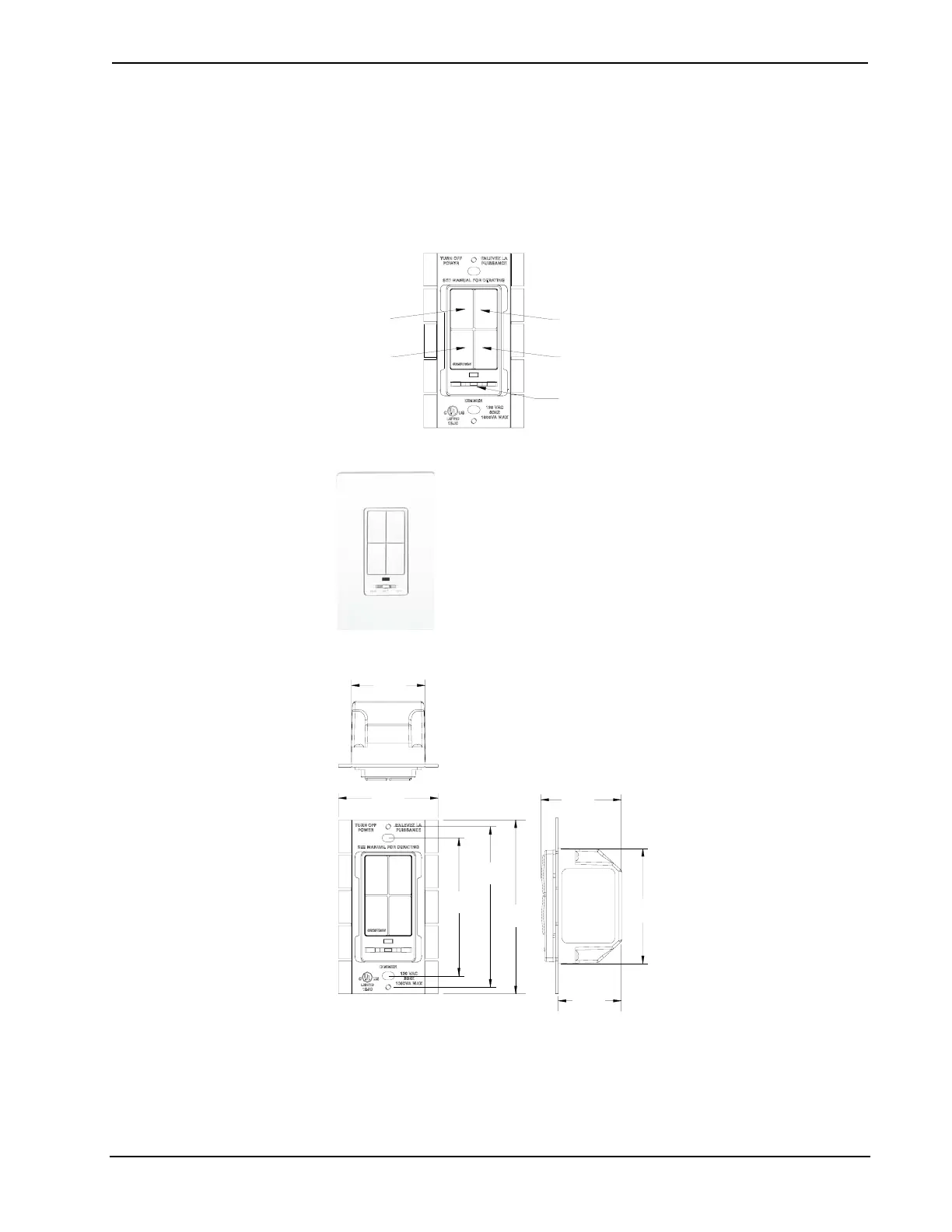

Parts of CLW-DIM4RF, -DIMS4RF
Button 2
Mode Selection Switch
Button 4Button 3
Button 1
OFFSETRUN
CLW-DIM4RF/-DIMS4RF Shown in White
Physical View of CLW-DIM4RF/-DIMS4RF (Clockwise from Top; Top, Side, and Front)
1.75 in
(4.45 cm)
2.38 in
(6.03 cm)
3.28 in
(8.32 cm)
3.81 in
(9.68 cm)
4.13 in
(10.48 cm)
1.88 in
(4.77 cm)
2.70 in
(6.86 cm)
1.50 in
(3.81 cm)
RUN
SET OFF
The -SLVD1RF is similar in appearance to the -DIM1RF and -DIMS1RF but does
not have the three-position mode selection switch. The brightness of the LED on the
-SLVD1RF is not programmable.
Operations Guide - DOC. 6396 infiNET Dimmers: Crestron CLW-DIM1/4RF, -DIMS1/4RF, -SLVD1RF • 5
