Crestron DM-RMC-SCALER-S/S2 DigitalMedia 8G Fiber Receiver
Operations & Installation Guide – DOC. 7324B DigitalMedia 8G Fiber Receiver: DM-RMC-SCALER-S/S2  19

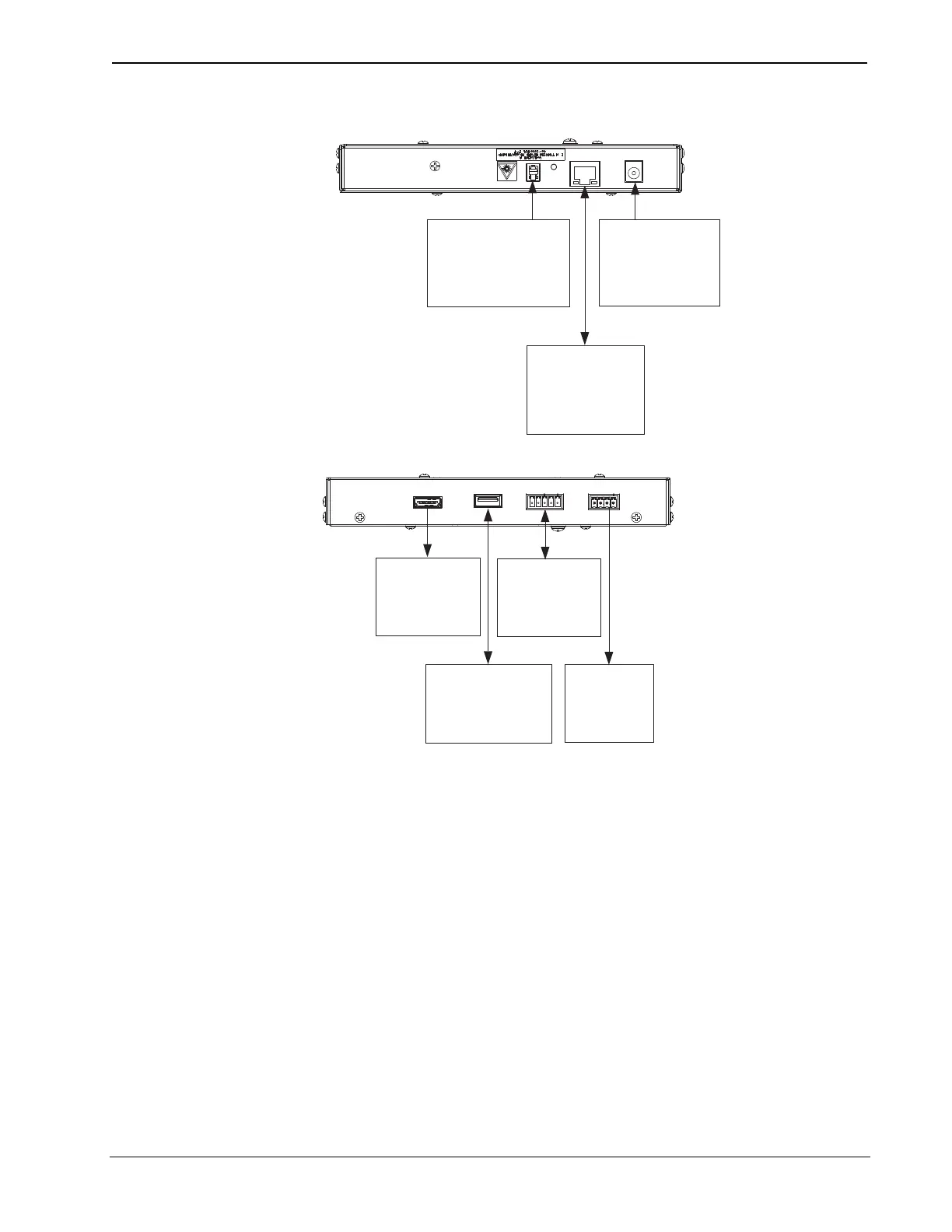

Hardware Connections for the DM-RMC-SCALER-S2 (Top Panel)
LAN:
10BASE-T/
100BASE-TX
Ethernet to Local
Network Device
24 V
0.75A MAX:
From Power Pack
(Included)
DM IN
SMF/LC:
From DM Switcher,
Transmitter, or Other
DM Device
Hardware Connections for the DM-RMC-SCALER-S/DM-RMC-SCALER-S2 (Bottom Panel)
HDMI OUT:
Digital Video/
Audio Output
USB HID:
To/From USB
HID-Compliant
Device
COM:
To/From
RS-232
Device
IR:
To IR
Controllable
Device
