Crestron DM-TX-201-C User Manual

DigitalMedia 8G+™ Transmitter 201 Crestron DM-TX-201-C
Applications

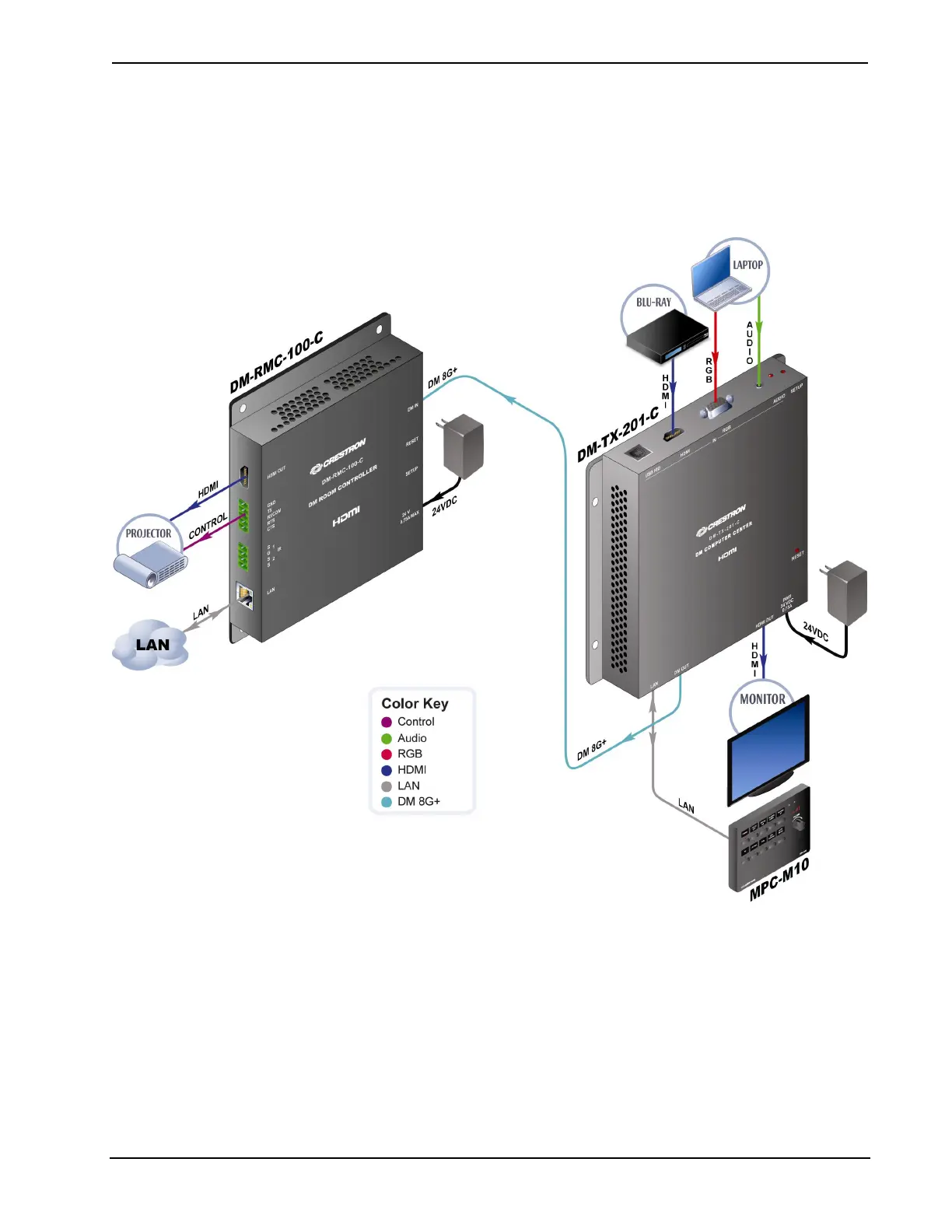

The following diagram shows a DM-TX-201-C in a standalone application. In this
type of application, the DM-TX-201-C is used with a DM 8G+ receiver/room
controller such as the DM-RMC-100-C and is not used with a DM switcher.
DM-TX-201-C in a Standalone Application
For more information on DM-TX-201-C applications, refer to the latest version of
the Crestron DigitalMedia Design Guide (Doc. 4789).
4 • DigitalMedia 8G+™ Transmitter 201: DM-TX-201-C Operations & Installation Guide – DOC. 6958B

Crestron DM-TX-201-C Specifications

General

Type	Network transmitter
Duplex system	Full, Half
Auto-negotiation	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3at
RJ-45 ports quantity (transmitter)	2
Product color	Black
Output current	0.75 A
Output voltage	24 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	32 mm
Width	187 mm
Height	165 mm
Weight	721 g
