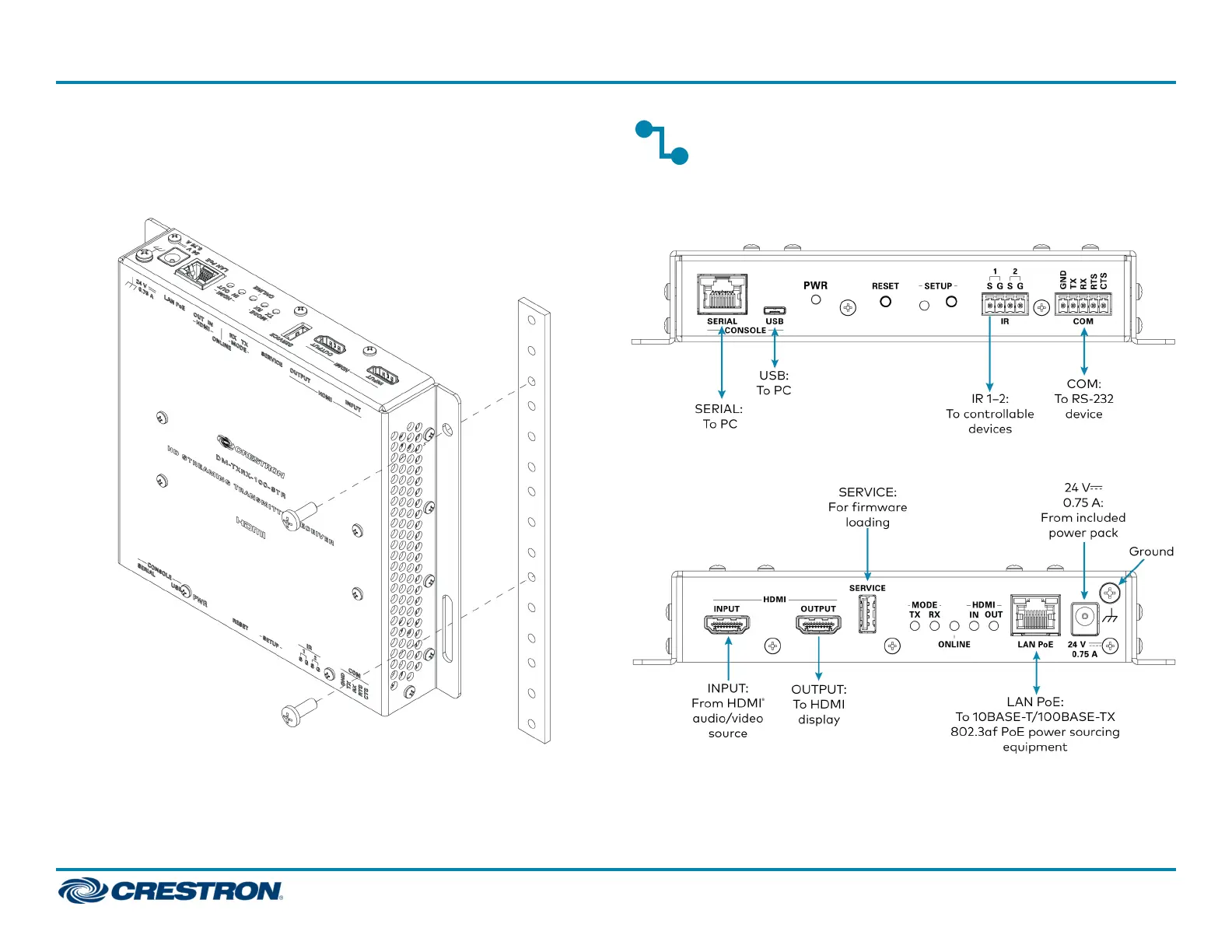

Mounting onto a Rack Rail
Using two mounting screws (not included), mount the left or right
mounting flange of the device onto the front or rear rail of a rack.
Mounting onto a Rack Rail
Connect the Device
Connect the device as required for the application.
Front Panel Connections
Rear Panel Connections
DM-TXRX-100-STR
