Crestron TPS-6 Isys™ 5.7” Tilt Touchpanel

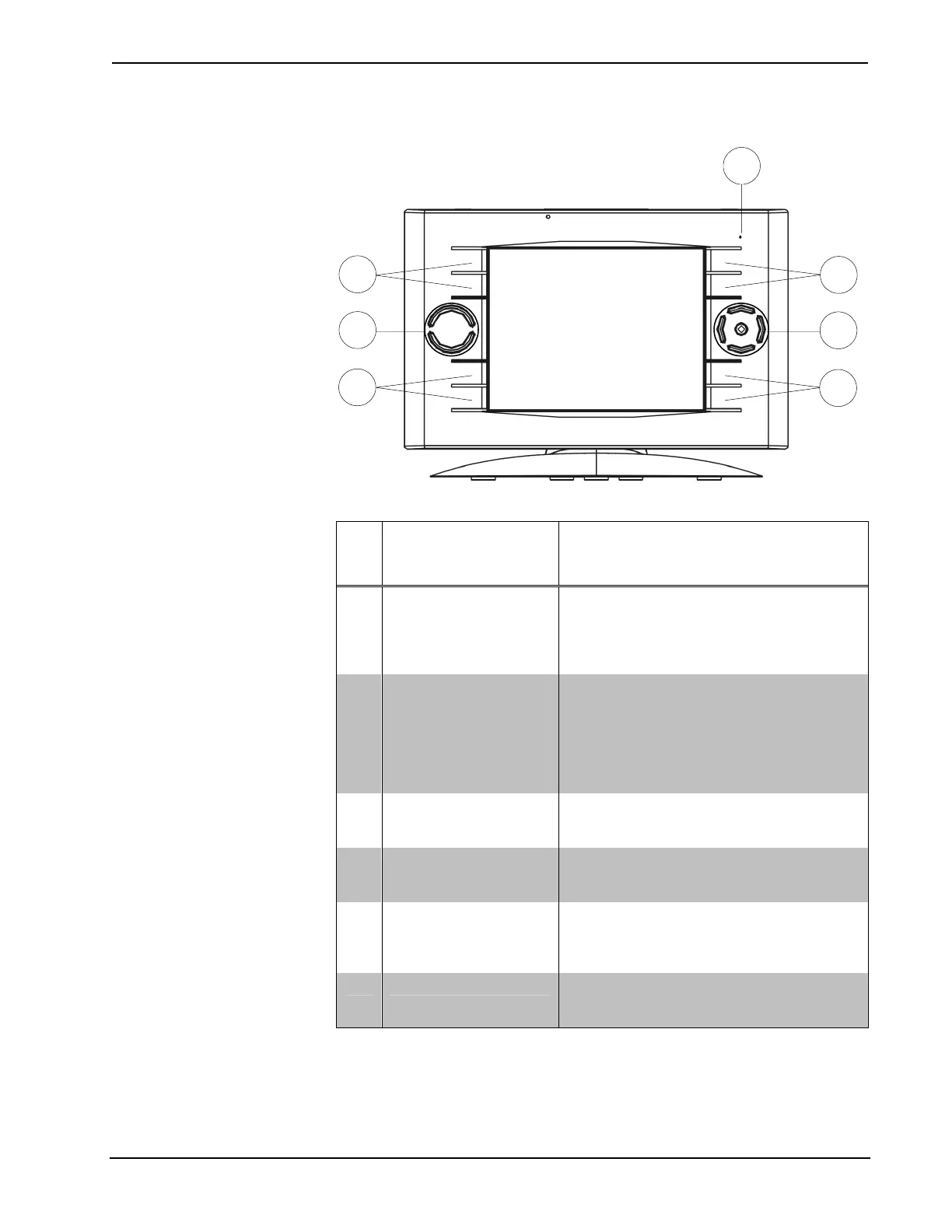

TPS-6 (Front View)
5
6
3
4
4
4
4
Connectors, Controls & Indicators
# CONNECTORS,
CONTROLS &
INDICATORS
DESCRIPTION
1 SLEEP
(1) Programmable top-mounted pushbutton
(left “trigger” key), initiates Sleep mode, also
resets touchpanel if held for five seconds,
starting up at first page of the installed
project
2 BRIGHTNESS
(1) Programmable top-mounted pushbutton
(right “trigger” key), normally sets display
brightness level. Toggles between high,
medium, low and standby. Toggling can be
enabled/disabled from setup menu (refer to
“BACKLIGHT” which starts on page 24 for
details)
3 POWER LED
(1) Green LED, indicates DC power supplied
from Cresnet network or 24 volt DC power
supply
4 HARD KEYS
(8) Optional programmable pushbuttons;
engravable backlit* text (sold separately);
default engraving included
5 UP/DOWN
(2) Optional programmable “up/down”
pushbuttons, backlit, engravable backlit* text
on bezel (sold separately); default engraving
included
6 THUMBPAD
(5) Optional programmable pushbuttons for
4-way directional navigation and “enter”,
backlit
* Text engraving on the TPS-6-W-S white model is not backlit.
Operations Guide – DOC. 6945A Isys™ 5.7” Tilt Touchpanel: TPS-6 • 9
