Isys™ 5.7” Tilt Touchpanel Crestron TPS-6

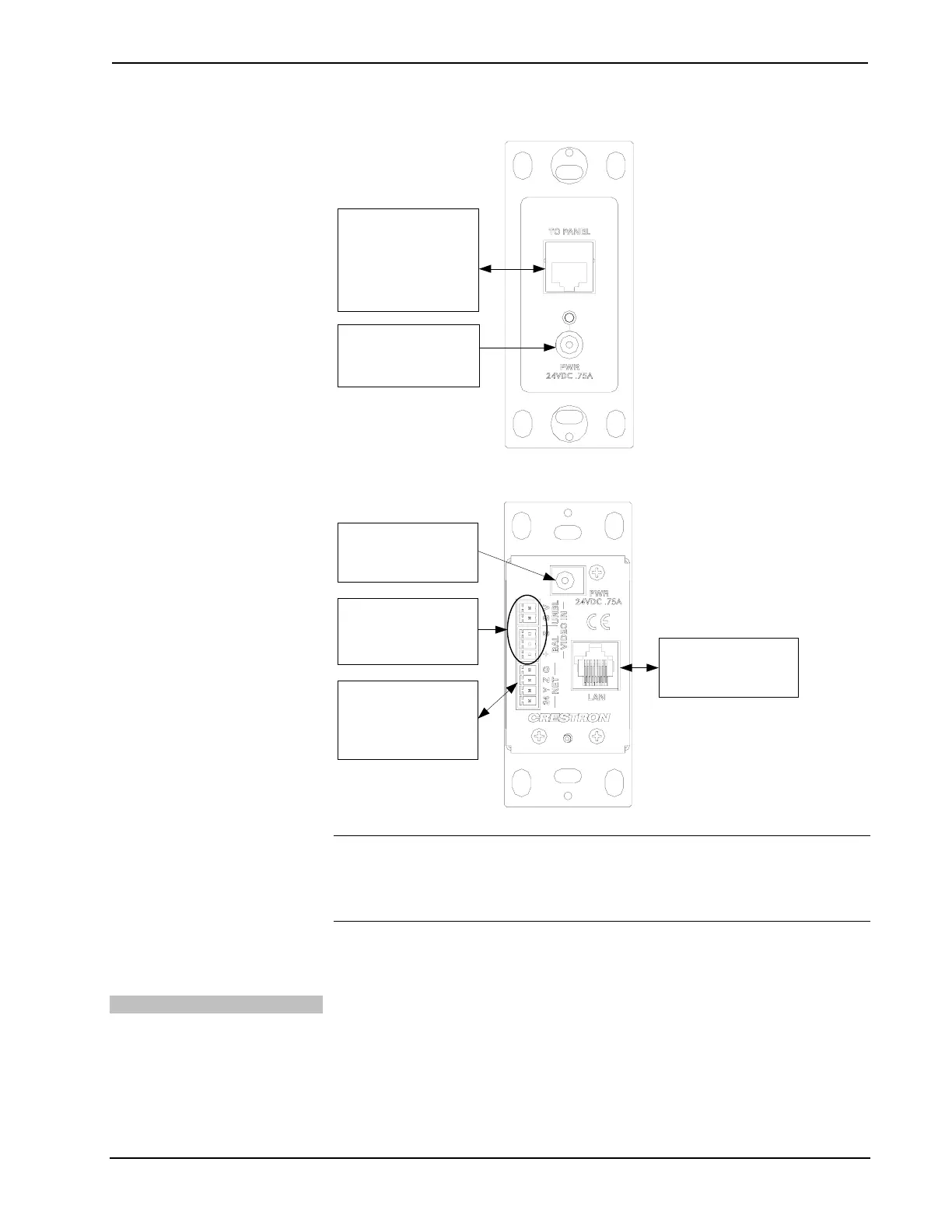

Hardware Connections for the TPS-6X-IMCW (Front)
TO PANEL:
Connect to
TPS-6
via 10-Pin RJ-50
Cable
POWER:
From DC
Power Pack
Hardware Connections for the TPS-6X-IMCW (Rear)
POWER:
From DC
Power Pack
VIDEO IN:
Balanced or
Unbalanced Source
NET:
To Control System
and Other Cresnet
Devices
LAN:
10/100BASE-T
to LAN
NOTE: Ensure the TPS-6X-IMCW is properly grounded.
NOTE: The TPS-6X-IMCW can be powered via the 24 VDC jack on either the
front or the back of the unit if the NET port is not being used to power the module.
Recommended Cleaning
Touchscreen
Keep the surface of the touchscreen free of dirt, dust or other materials that could
degrade optical properties. Long-term contact with abrasive materials can scratch the
surface, which may detrimentally affect image quality.
For best cleaning results, use a clean, damp, non-abrasive cloth with any
commercially available non-ammonia glass cleaner. Bezels may not provide a
complete watertight seal. Therefore, apply cleaning solution to the cloth rather than
28 • Isys™ 5.7” Tilt Touchpanel: TPS-6 Operations Guide – DOC. 6945A
