Crestron TPS-6 Isys™ 5.7” Tilt Touchpanel

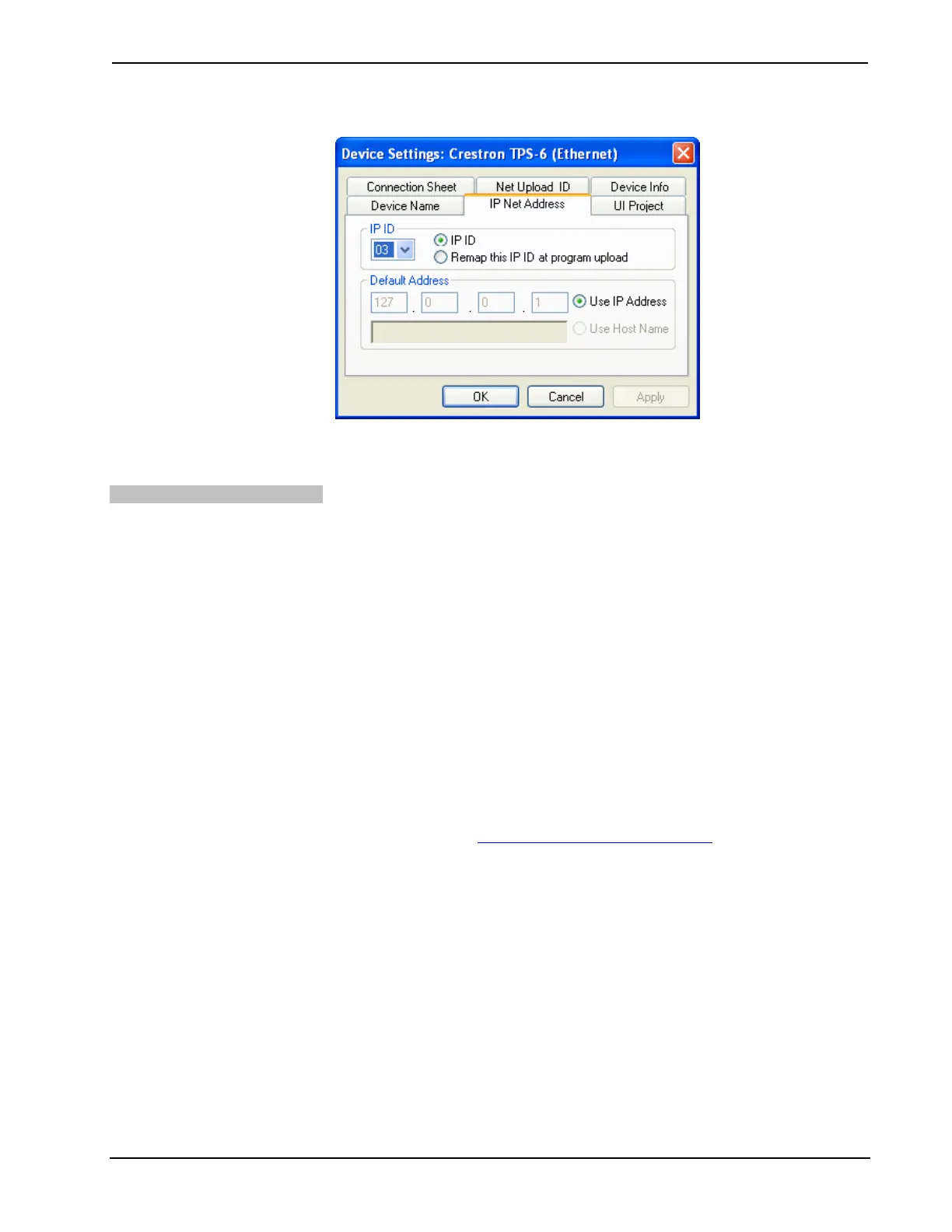

“TPS-6 (Ethernet) Device Settings” Window
5. The ID code specified in the SIMPL Windows program must match the Net
ID, or IP ID of each unit. Refer to “Identity Code” which starts on page 10.
Program Manager
Program Manager is the view where programmers “program” a Crestron control
system by assigning signals to symbols.
The symbol can be viewed by double clicking on the icon or dragging it into Detail
View. Each signal in the symbol is described in the SIMPL Windows help file (
F1).
Programming with VisionTools Pro-e
Touchpanel screens should be created in VisionTools
®
Pro-e (VT Pro-e) to allow
switching of source signals to desired outputs as well as selection of the system
mode. There are no special programming requirements to use the functions of the
TPS-6 in a room control system.
Multi-Mode Objects
Multi-mode objects offer high-
erformance programming!
The single most advanced VT Pro-e high performance programming technique
involving the TPS-6 is the concept of multi-mode objects. A multi-mode object (i.e.
button, legend, etc.) is an object drawn on a VisionTools Pro-e page that can have
one or more active and inactive visible settings (modes).
For examples, refer to
www.crestron.com/exampleprograms and search for multi-
mode object examples. This file contains the VT Pro-e touchpanel files and SIMPL
Windows files that illustrate the high-performance capabilities of multi-mode
objects.
Operations Guide – DOC. 6945A Isys™ 5.7” Tilt Touchpanel: TPS-6 • 33
