Crestron TPS-6 Isys™ 5.7” Tilt Touchpanel
DIAGNOSTICS
The Diagnostics button on the MAIN MENU should only be used under the
supervision of a Crestron customer service representative during telephone support.
Many options available on the DIAGNOSTICS menu, shown in the following
illustration, are numeric in nature and their interpretation is beyond the scope of this
manual.

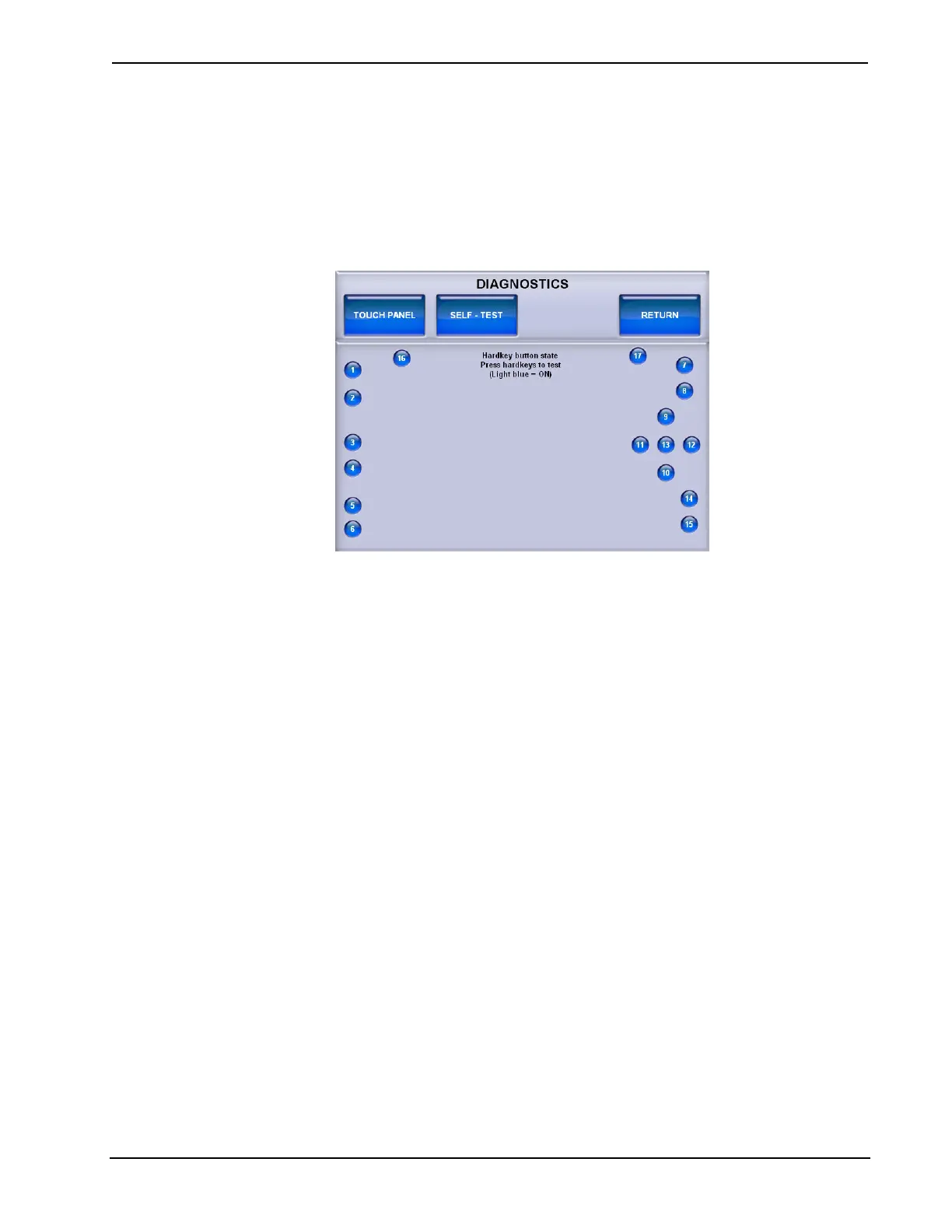

DIAGNOSTICS Menu
Hardware Hookup
The TPS-6 comes in a soft felt bag to protect it during shipping.
For Cresnet or Ethernet connection or to upgrade touchpanel firmware, the TPS-6
must be connected to the TPS-6X IMCW Interface Module (included), which in turn
must be connected to a control system via Cresnet or Ethernet. For details, refer to
the latest version of the TPS-6X-IMCW Installation Guide (Doc. 6874).
Make the necessary connections as called out in the illustrations that follow. Refer to
“Network Wiring” on page 10 before attaching the 4-position terminal block
connector. Apply power after all connections have been made.
When making connections to the TPS-6X-IMCW, use Crestron power supplies for
Crestron equipment.
Operations Guide – DOC. 6945A Isys™ 5.7” Tilt Touchpanel: TPS-6 • 27
