3.6-Inch Wall Mount Touchpanel Crestron Isys
®
TPS-4L
Supplied Hardware for the TPS-4L
DESCRIPTION PART NUMBER QUANTITY
Mounting Clip 2014237 4
Overlay Template Cutout 4007314 1
Conn, Plug, 4 Pin, SKT, Single Row 2003576 1
Screw, #06-AB, 2-1/2”, Pan Head 2014276 2
NOTE: The following drawings are not to scale. Do not attempt to use them to
prepare the hole in the mounting surface.

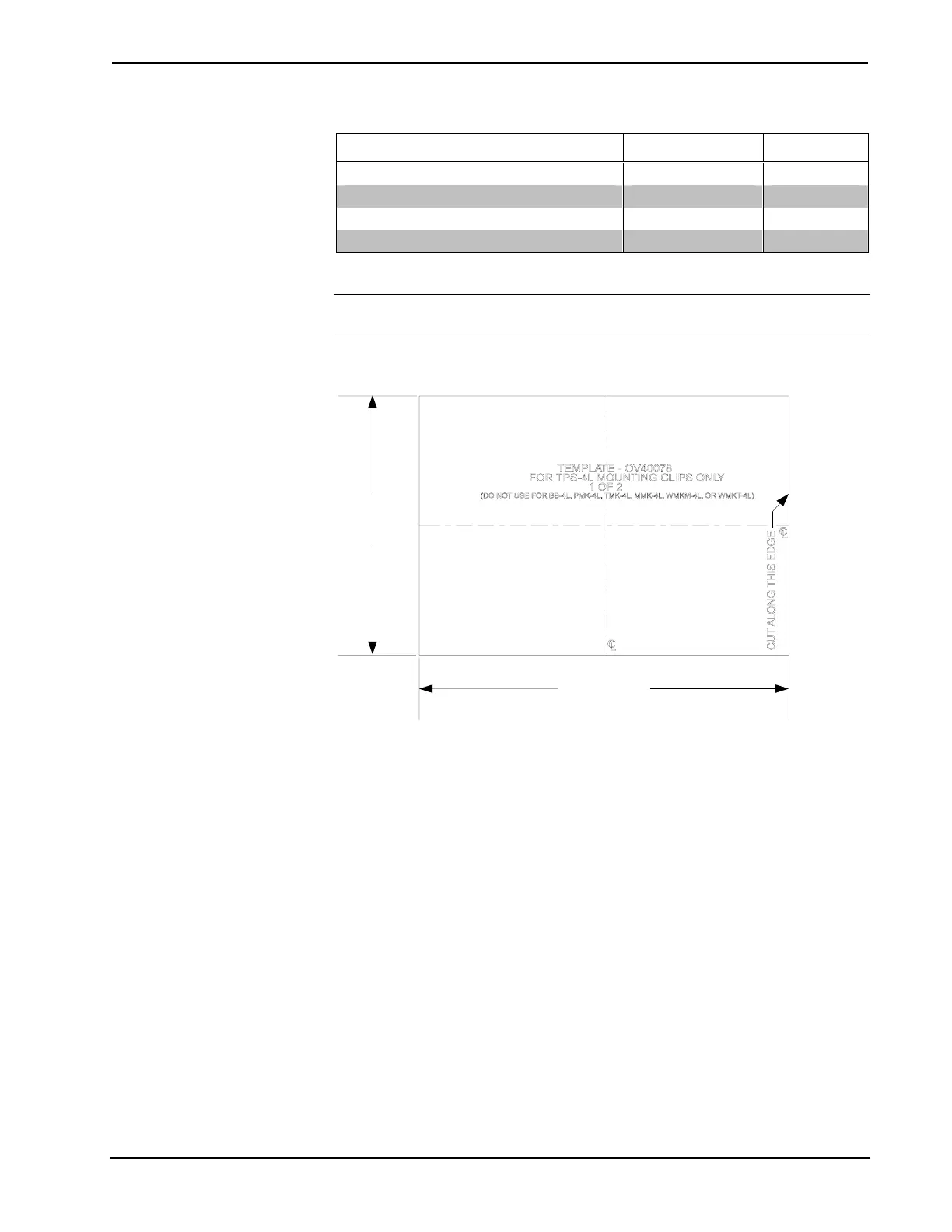

TPS-4L Cutout Dimensions (4007314, 1 of 2)
4 1/4 in
(105 mm)
5 1/2 in
(140 mm)
12 • 3.6-Inch Wall Mount Touchpanel: TPS-4L Operations & Installation Guide – DOC. 6449A
To Next Page
