Crestron Isys
®
TPS-4L 3.6-Inch Wall Mount Touchpanel
• Additional TPS-4L devices are assigned different Net ID (for Cresnet
devices) or IP ID (for Ethernet devices) numbers as they are added.
• If necessary, double click a device to open the “Device Settings” window
and change the Net ID or IP ID as shown in the following figures.

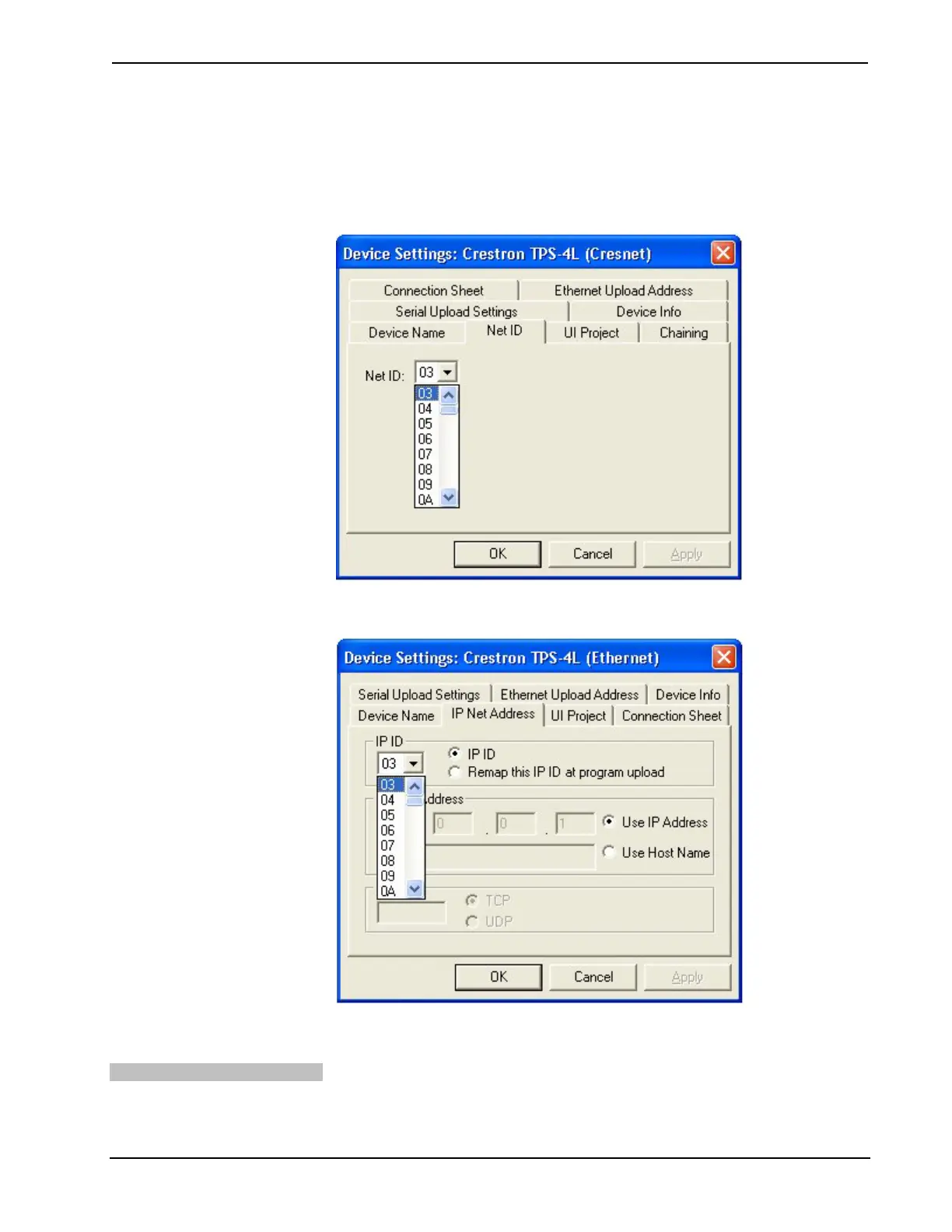

“TPS-4L Device Settings” Net ID Window
“TPS-4L Device Settings” IP ID Window
• The ID code specified in the SIMPL Windows program must match the Net
ID of each unit. Refer to “Identity Code” on page 7.
Program Manager
Program Manager is the view where programmers “program” a Crestron control
system by assigning signals to symbols.
Operations & Installation Guide – DOC. 6449A 3.6-Inch Wall Mount Touchpanel:
TPS-4L • 19
