Configure the TST-902
RF Setup
On the
TST-902 Setup
screen, tap
RF Setup
to display the
RF Setup
screen.

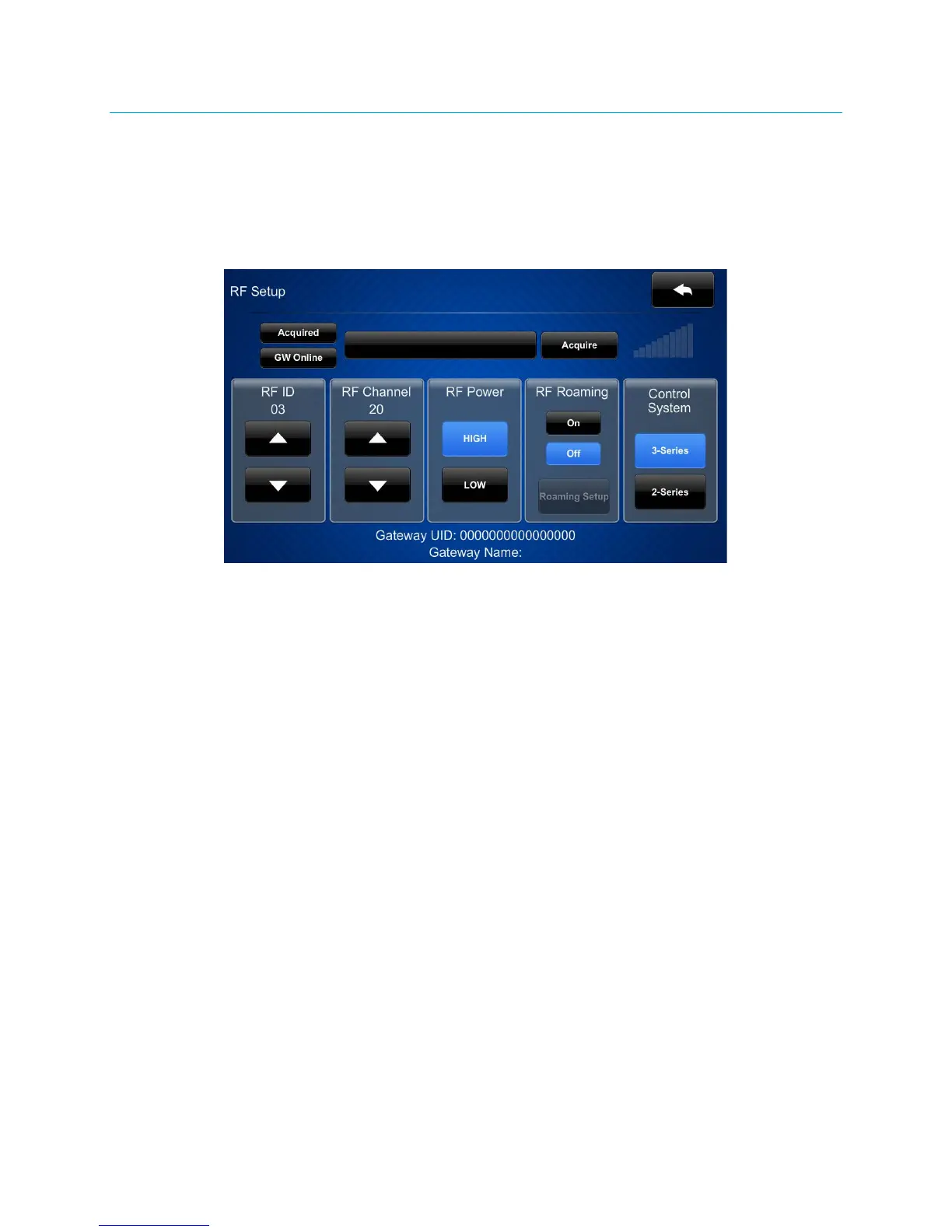

RF Setup Screen
The
RF Setup
screen shows RF signal strength, gateway UID, and gateway name. It also
has controls for acquiring the TST-902; setting the RF ID, RF channel, and RF power;
enabling RF roaming; and selecting the series of the control system.
Before a TST-902 can be used with a Crestron control system, it must first be acquired by a
Crestron Extended Range (RF) Wireless gateway (sold separately). To acquire a TST-902,
perform the following procedure:
1. Use a stylus or other thin-tipped object to press
ACQUIRE
on the gateway to enter
Acquire mode. The accompanying LED illuminates, indicating the unit is ready to
link with the touch screen.
2. On the TST-902’s
RF Setup
screen, tap
Acquire
. The screen displays an “Acquire
in progress” message, and the TST-902 is automatically acquired by the gateway
within 2 minutes.
3. When the screen displays an “Acquire OK” message, press
ACQUIRE
on the
gateway to exit Acquire mode. The LED turns off.

Crestron TST-902 Specifications

General

Color depth	24 bit
Display type	TFT
Backlight type	LED
Contrast ratio	700:1
Display diagonal	8.7 \
Display brightness	300 cd/m²
Display resolution	1008 x 588 pixels
Touchscreen technology	Projected capacitive system
Audio formats supported	MP3
Wi-Fi	-
Product color	Black
Internal memory	1000 MB
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Power supply location	External
AC adapter output voltage	24 V
Power consumption (typical)	7 W

Weight and Dimensions

Depth	19 mm
Width	264 mm
Height	164 mm
Weight	808 g
