5”/7”10.1” Touch Screens Crestron TSW-552/752/1052
12
•
5”/7”/10.1” Touch Screens: TSW-552/752/1052 Configuration Guide – DOC. 7578A

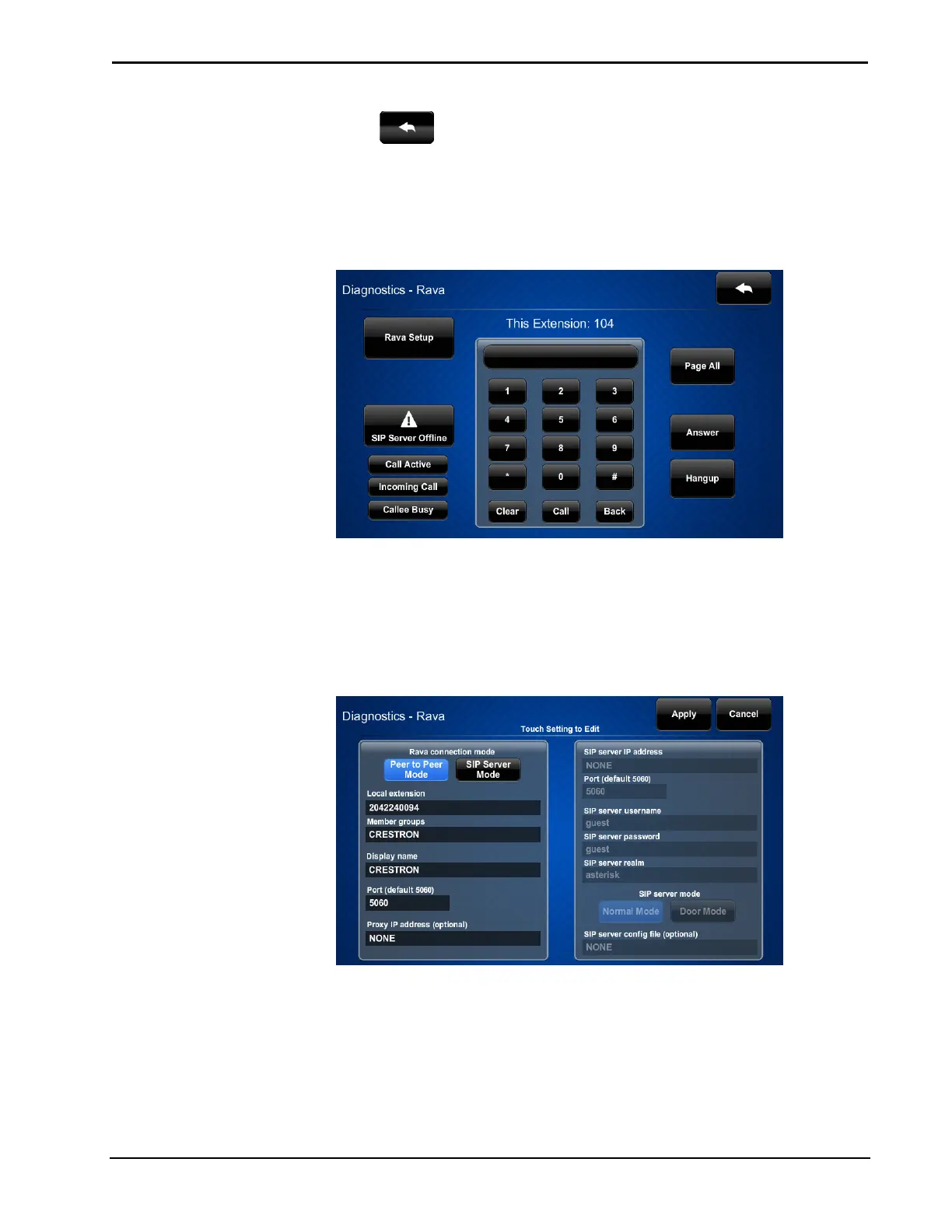

Touch to return to the “Diagnostics” menu.
Rava Test
On the “Diagnostics” menu, touch Rava Test to display the “Diagnostics – Rava”
menu.
“Diagnostics - Rava” Menu
The “Diagnostics - Rava” menu provides controls for testing the use of Crestron’s
Rava™ SIP Intercom with the touch screen. They can be used to test projects and
settings. If the intercom works but the project does not, there is an issue with the
project; if the intercom does not work, there is an issue with the settings.
The Rava Setup button opens a second “Diagnostics – Rava” screen for Rava Setup.
“Diagnostics - Rava” (Rava Setup) Screen
This screen provides controls to switch between Peer to Peer Mode and SIP Server
Mode, and when in the latter, controls to switch between Normal Mode and Door
Mode. Touching the other fields on the screen opens the on-screen keyboard or on-
screen numeric keypad, as appropriate.
When all settings have been entered, touch Apply to store them or Cancel to ignore
any changes. Touching either one returns the display to the “Diagnostics – Rava”
menu.
