LAN Test
On the “Diagnostics” menu, touch LAN Test to display the “Diagnostics – LAN”
screen.

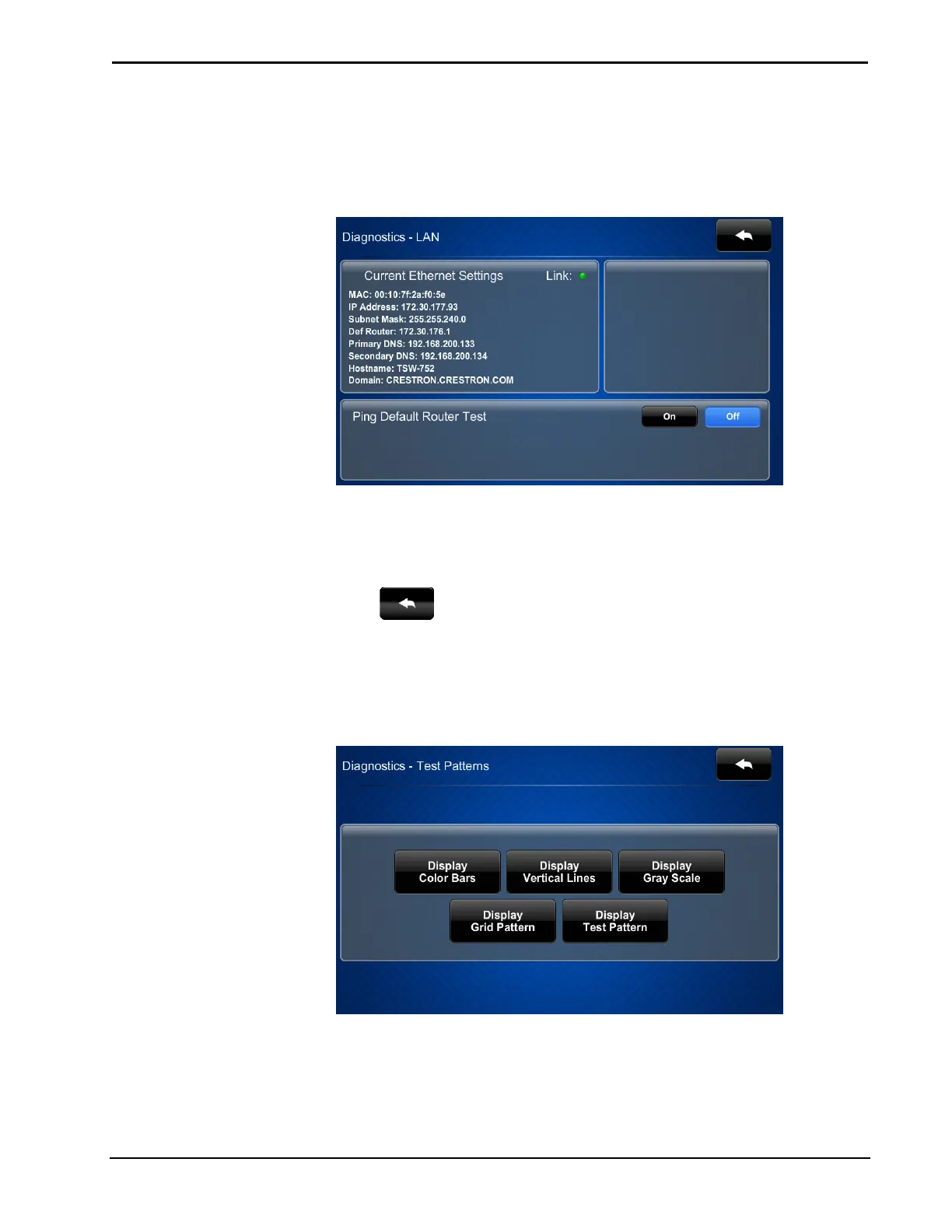

“Diagnostics – LAN” Screen
The “Diagnostics – LAN” screen displays the touch screen’s Mac and IP Address,
Subnet Mask, Def Router, Primary DNS, Secondary DNS, Hostname, and Domain.
This screen also contains a Link indicator to show the status of the Ethernet
connection and controls to test the connection to the default router.
Touch
to return to the “Diagnostics” menu.
Test Patterns
On the “Diagnostics” menu, touch Test Patterns to display the “Diagnostics - Test
Patterns” screen.
“Diagnostics - Test Patterns” Screen
The “Diagnostics - Test Patterns” screen contains buttons for selecting the different
available test patterns: Display Color Bars, Display Vertical Lines, Display Gray
Scale, Display Grid Pattern, and Display Test Pattern.
