Crestron TSW-770 User Manual

100 • TSW-70 Series Product Manual — Doc. 8550E

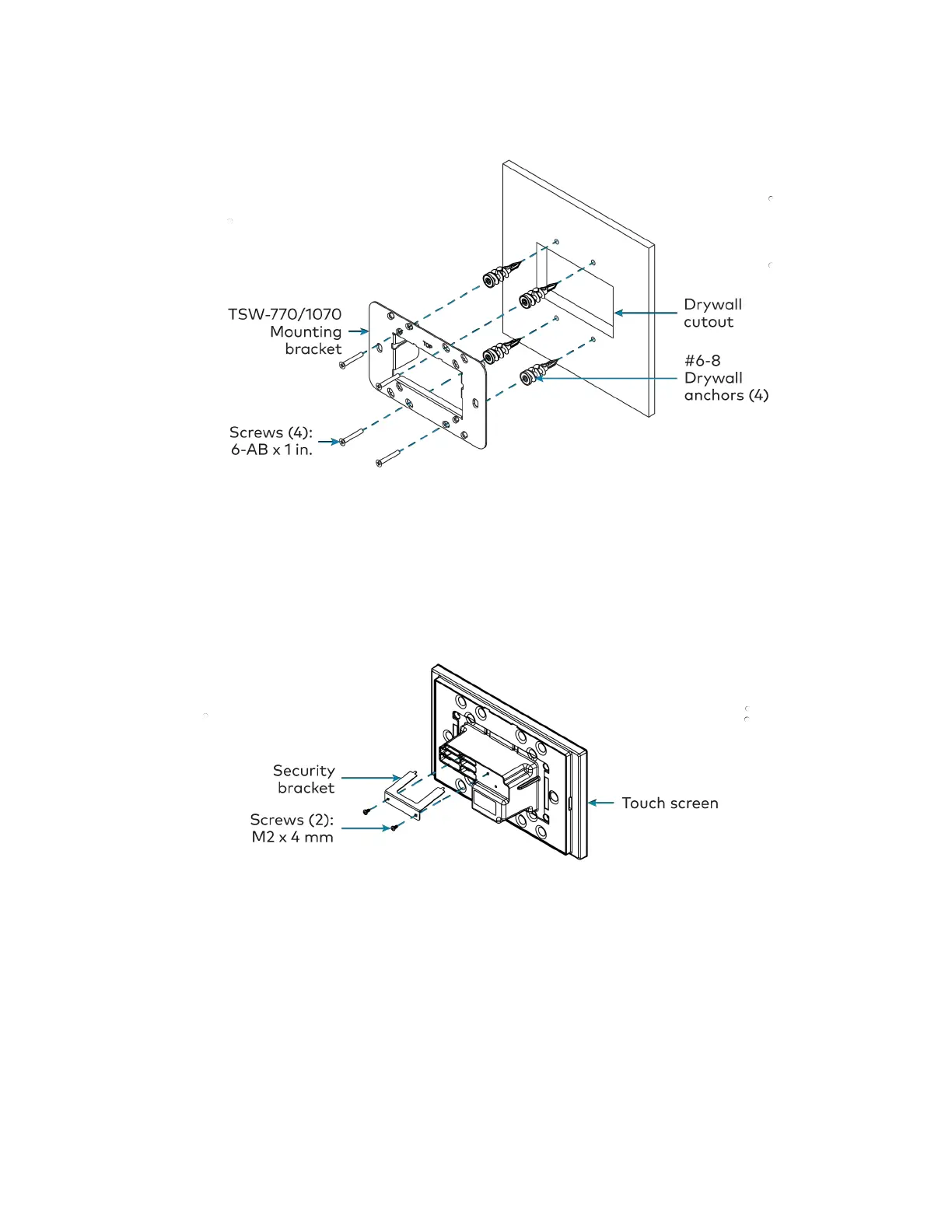

5. Attach the mounting bracket to the anchors using the four 6-ABx 1in. screws as shown in
the image below.
Install the Security Bracket (Optional)
The included security bracket may be attached to the touch screen to prevent unauthorized
removal after installation. The security bracket snaps into place behind the mounting bracket so
that the touch screen cannot be removed without using the included release key.
Use the two M2 x 4 mm screws to attach the security bracket to the touch screen rear housing as
shown in the following illustration.

Crestron TSW-770 Specifications

General

Display Size	7 in. (178 mm) diagonal
Touch Technology	Capacitive
Operating Temperature	32° to 104° F (0° to 40° C)
Contrast	800:1
Backlight	LED
RAM	2 GB
Power	PoE (802.3af)
Network	10/100 Mbps Ethernet
Audio	Speakers, Microphone
Mounting	Surface
Brightness	350 cd/m²
Ethernet	10/100 Mbps
Wi-Fi	802.11a/b/g/n/ac
Bluetooth	Bluetooth 4.2
Speakers	Yes
Video	H.264
Processor	Quad Core
Resolution	1280 x 800 pixels
