Crestron TSW-770 User Manual

148 • TSW-70 Series Product Manual — Doc. 8550E
Audio Setup
Tap Audio Setup on the Setup screen to display the Audio Setup screen.

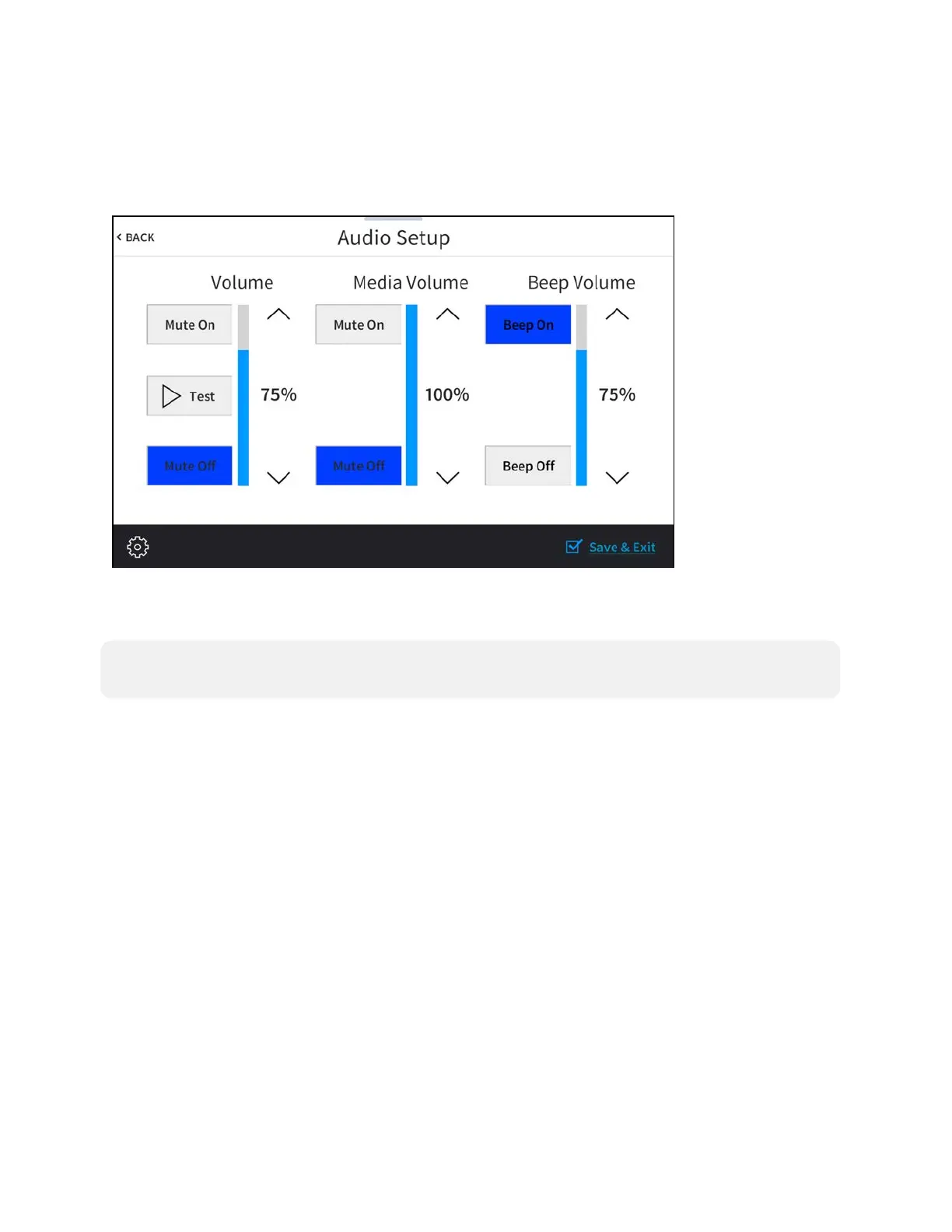

AudioSetupScreen
Use the Audio Setup screen to control the master volume, media volume, and beep volume
settings for the touch screen.
NOTE: The Media Volume controls adjust the H.264 streaming media level in relation to the
Volume controls.
l
Volume
o
Tap the up and down arrow buttons to raise or lower the touch screen master
volume incrementally from 0 to 100%.
o
Tap Mute On or Mute Off to mute or unmute the master volume.
o
Tap Test to play a test recording at the current volume level.
l
Media Volume
o
Tap the up and down arrow buttons to raise or lower the touch screen media volume
incrementally from 0 to 100%.
o
Tap Mute On or Mute Off to mute or unmute the media volume.
l
Beep Volume
o
Tap the up and down arrow buttons to raise or lower the touch screen beep volume
incrementally from 0 to 100%.
o
Tap Beep On or Beep Off to turn the beep volume on or off.
Tap < BACK to return to the Setup screen.

Crestron TSW-770 Specifications

General

Display Size	7 in. (178 mm) diagonal
Touch Technology	Capacitive
Operating Temperature	32° to 104° F (0° to 40° C)
Contrast	800:1
Backlight	LED
RAM	2 GB
Power	PoE (802.3af)
Network	10/100 Mbps Ethernet
Audio	Speakers, Microphone
Mounting	Surface
Brightness	350 cd/m²
Ethernet	10/100 Mbps
Wi-Fi	802.11a/b/g/n/ac
Bluetooth	Bluetooth 4.2
Speakers	Yes
Video	H.264
Processor	Quad Core
Resolution	1280 x 800 pixels
