TSW-570PR Installation
Use the following procedures to install the TSW-570Ptouchscreen.
Install the Mounting Bracket
The TSW-570PR can be mounted into drywall and other surfaces, or it can be mounted onto a
wall stud.
NOTE: Additional mounting options are possible using the TSW-UMB-70 universal mounting
bracket, TSW-UMB-570P-PMK preconstruction mounting kit, or TSW-UMB-70-BBI wall mount
back box. For more information, refer to the product pages at www.crestron.com.
Preconstruction Installations

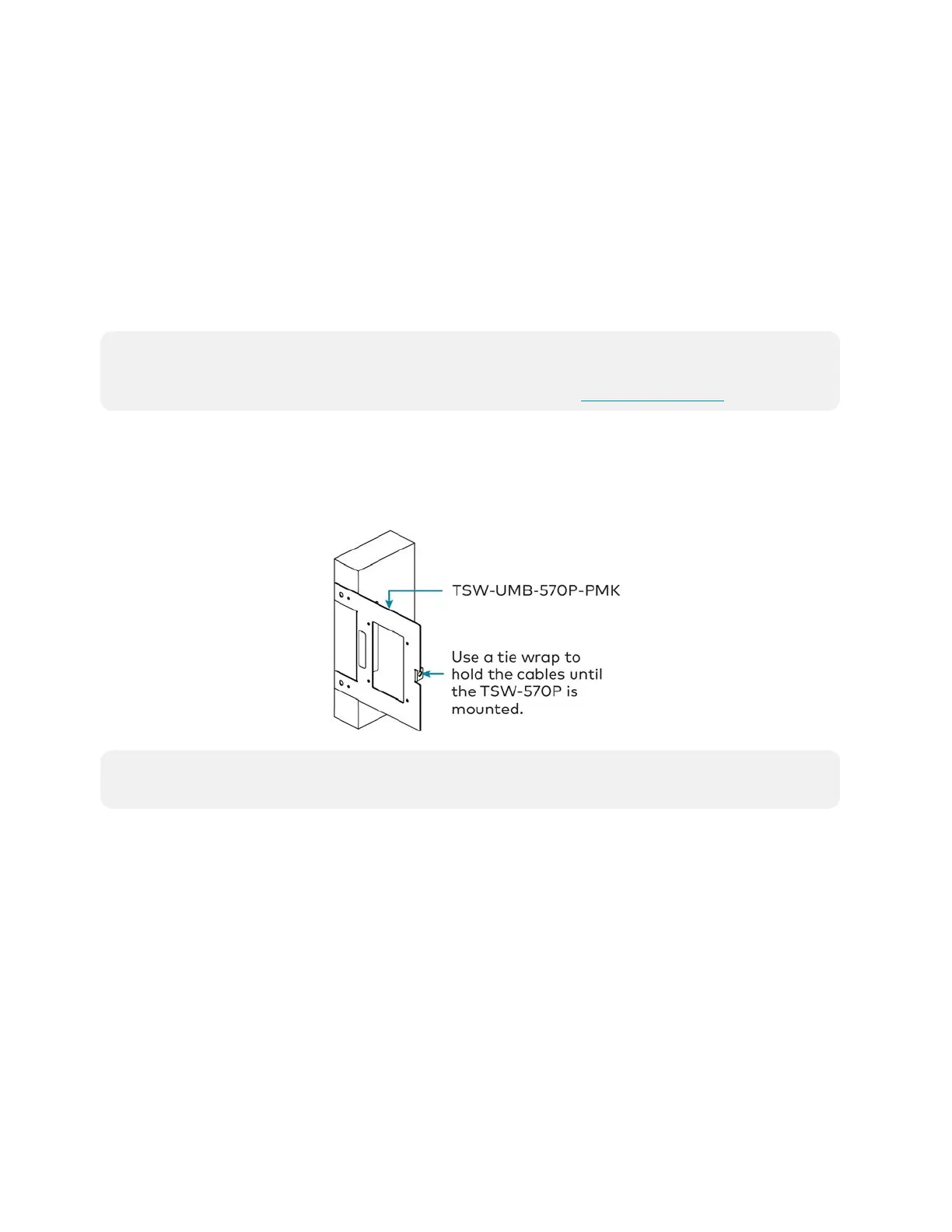

To install the TSW-570PR mounting bracket in preconstruction applications, use standard
drywall nails or screws (not included)to attach the TSW-UMB-570P-PMK mounting bracket to a
wall stud.
NOTE:Allowan air gap of at least 12 in. (305 mm)in the wall cavity above and below the touch
screen for heat dissipation.
Postconstruction Installations
To install the TSW-570PR mounting bracket in postconstruction applications:
1. Use the TSW-UMB-570P-PMK mounting bracket as a cutout template by turning the
bracket to face the wall, ensuring it is level, and tacking it to the wall temporarily with
finishing nails (not included)throughthe smaller holes around the cutout opening.
2. Create an opening in the surface by tracing the cutout opening with an appropriate
drywall saw.
3. Loosen the two screws on the TSW-UMB-70 mounting bracket.
