Crestron TSW-770 - TSW-770 R and TSW-1070 R Installation

Product Manual — Doc. 8550E TSW-70 Series • 125

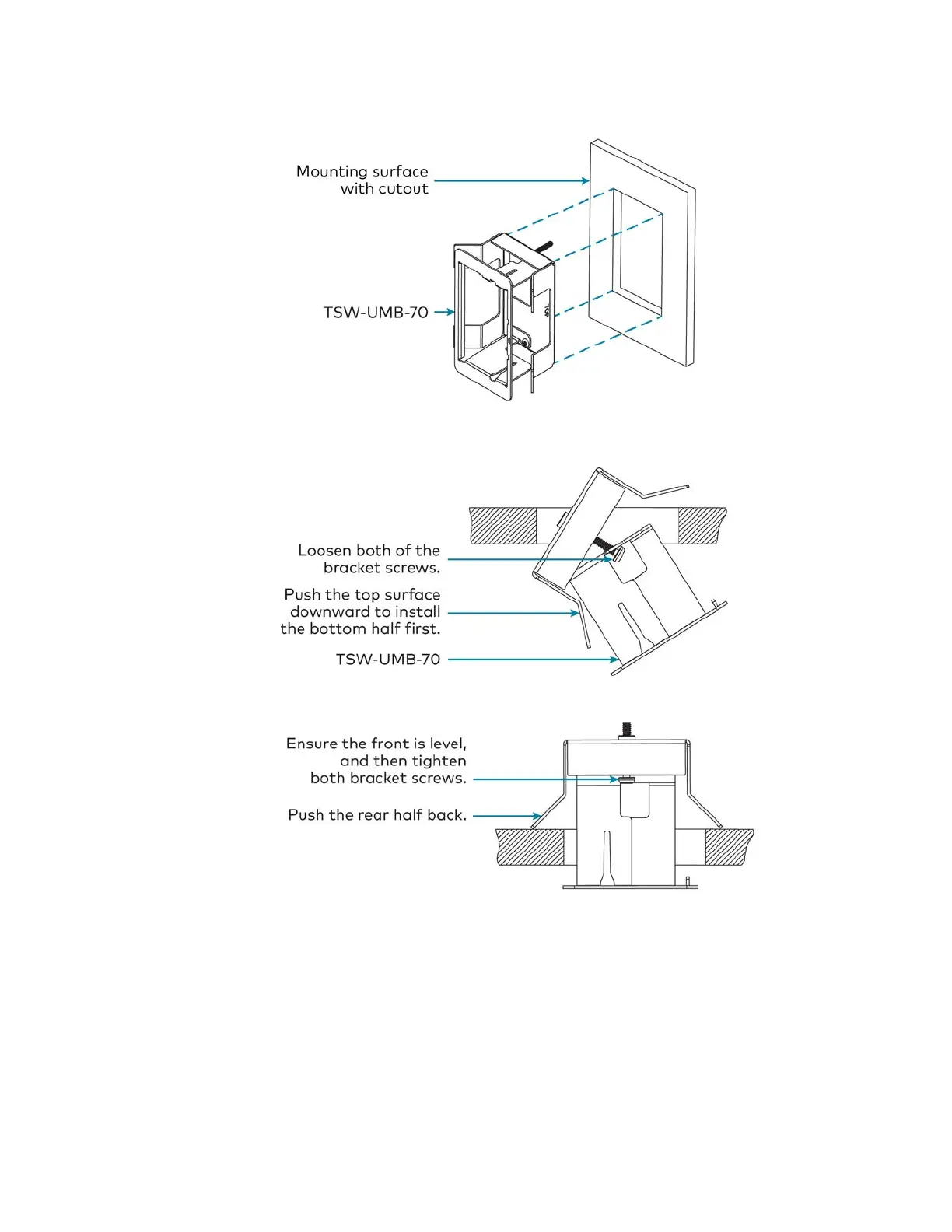

4. Install the TSW-UMB-70, left side first, into the opening.
5. Push the rear half of the mounting bracket back so that it is seated behind the mounting
surface completely.
6. Ensure the front of the TSW-UMB-70 is level, and then tighten the two bracket screws.
