Product Manual — Doc. 8550E TSW-70Series • 119

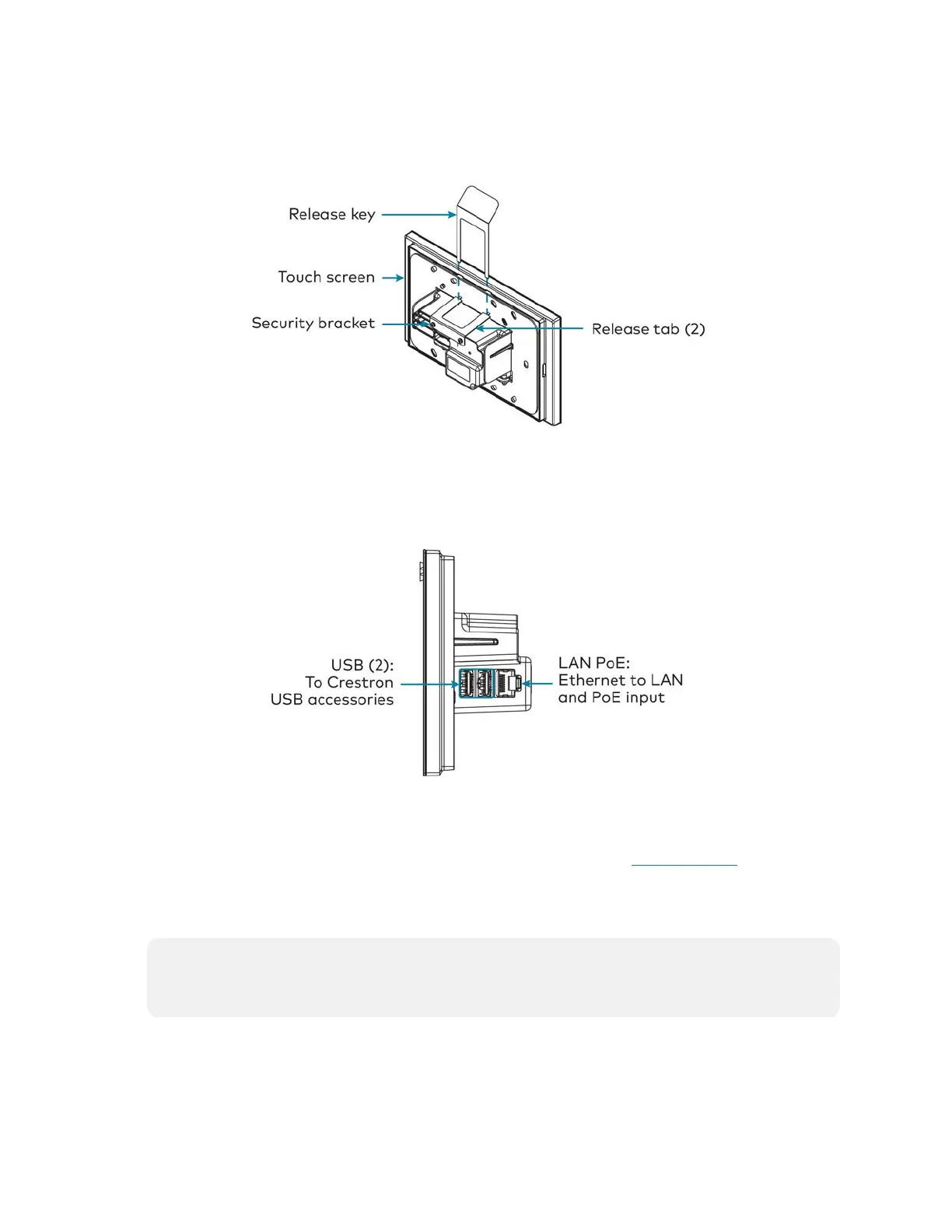

To remove the touch screen after installation, use the included release key to push down on the

security bracket release tabs as shown in the following illustration while gently pulling the touch

screen away from the mounting bracket.

Connect the Touch Screen

Route all necessary cables through the rear of the mounting bracket, and then make connections

to the side of the touch screen rear housing.

Observe the following when connecting the touch screen:

Power and data connection is provided to the touch screen by a single Ethernet cable. A

Crestron PoE (Power over Ethernet) power supply, such as the PWE-4803RU, or a PoE-

capable network switch is recommended (neither included).

The USB ports are used to connect compatible Crestron LED accessories to the touch

screen.

NOTE: The TSW-770-GV may use either PoE or PoE+ to supply power to compatible LED

accessories over USB; the TSW-1070-GV requires at minimum PoE+ to supply power to

LED accessories over USB.

Apply power after all connections have been made.
