1. Connect the DC jack to the AV IN port of the front dashcam. When connected properly, the video
of the rear camera is shown PiP (Picture in Picture) wise on the LCD screen of the front camera

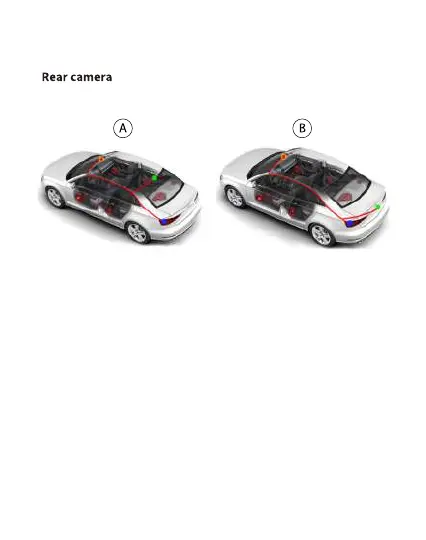

2. Rear camera can be installed on two places :
a)is on the back windshield
b)near the name plate area(Bumper) of your car as shown in images A and B.
3. Place and install the rear camera with the help of stickers(Wind Shield) or screws(bumper).
4. (Optional) Connect the red wire of the Rear cam extension cable to the power of the backup light
and the black to the ground. Then the video Of the rear camera will be shown in large on the
LCDscreen once the car is put in reverse.
The rear camera comes with six meter cable, that is to be connected to the front camera
Follow the below steps for installation:
