Crossfire XS-8K - DUAL AMP INPUT & SPEAKER CONNECTION (STRAPPED); MASTER & SLAVE RCA CONNECTION

MASTER & SLAVE RCA CONNECTION
"SLAVE UNIT"
positive terminal of the subwoofer's voice coil
must be connected to the positive terminal of the MA
of the subwoofer's voice coil must be connected to po
When in strapped mode connection, XS-8K & XS-8X the minimum working impedance
is 2 Ohms. Any impedance (load) lower than 2 Ohms can damage the ampliers.
When wiring two ampliers to a single subwoofer, please make sure power handling capabilities will
not be exceeded.
Caution !!

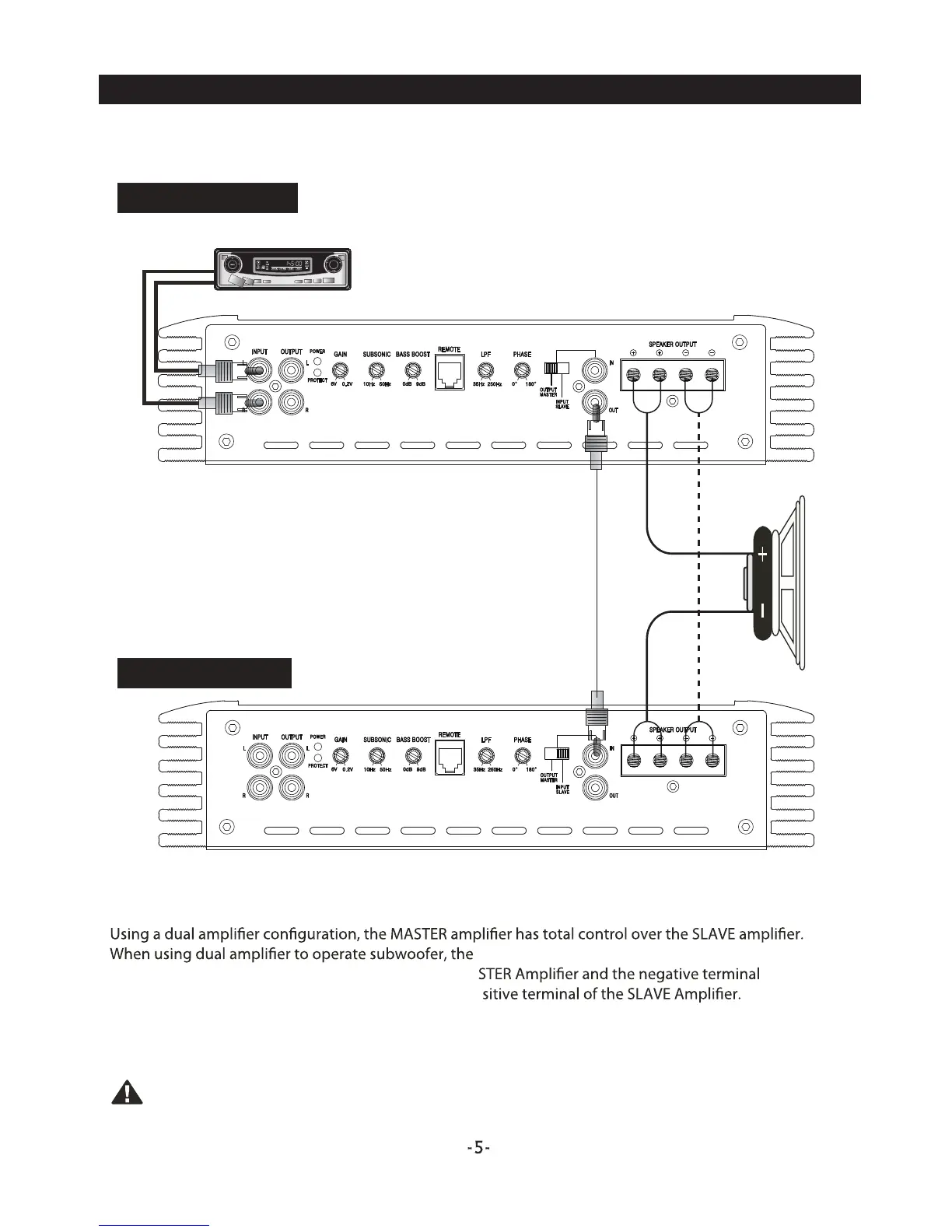

DUAL AMP INPUT & SPEAKER CONNECTION ( STRAPPED )
"MASTER UNIT"
4~2ohms
HEAD UNIT
