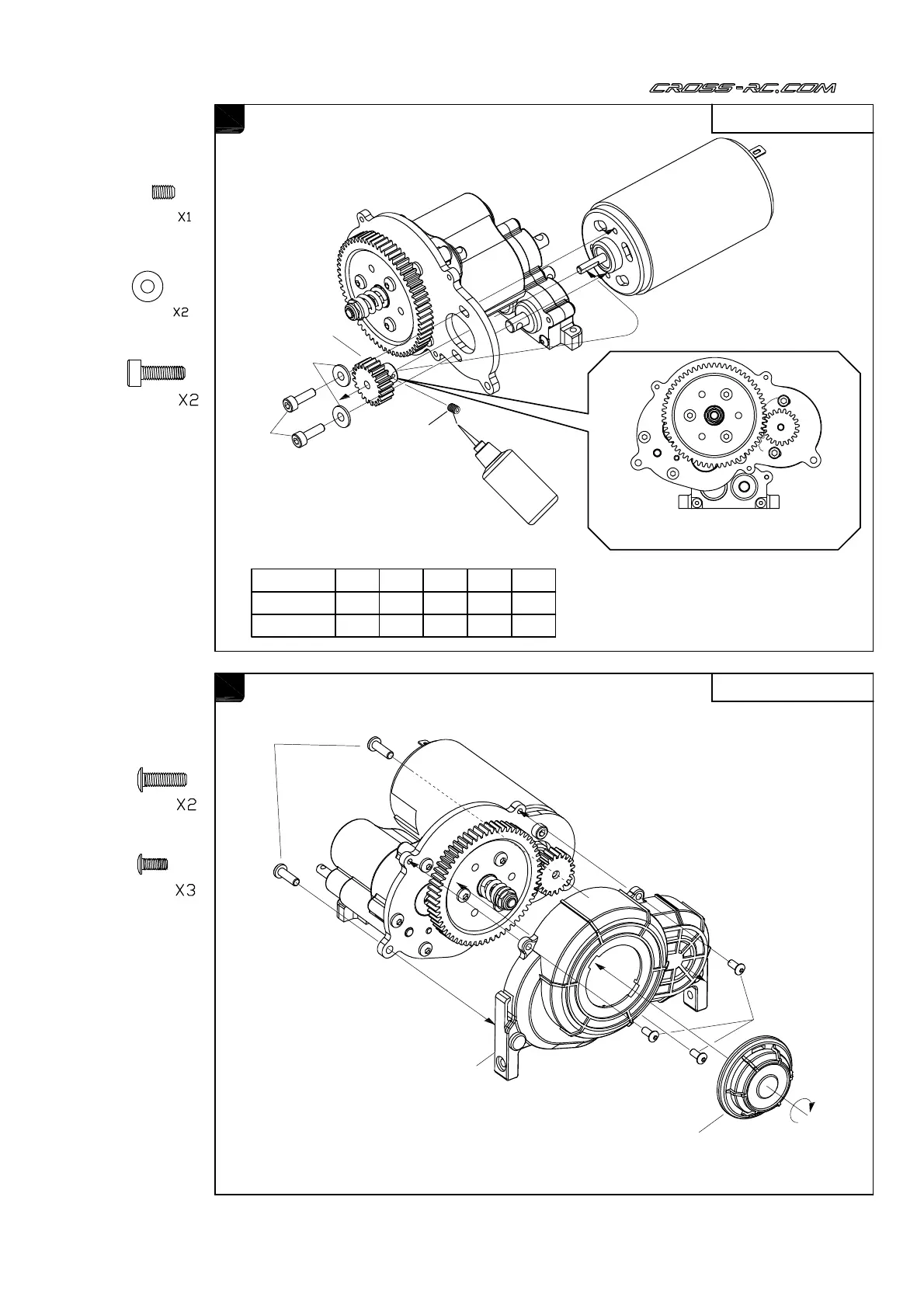

CROSSRC EMOX2 - Motor and Gearbox Integration; Final Reduction Ratio Information; Gearbox Mounting

Final reduction ratio
4
EMOX2
11401
M3x4
11401
THREAD
LOCK
41768
14102
Ø3xØ7x0.5
14102
M3x10
11107
11107
Tips:
Tighten the screws with one sheet of
paper inserted between both gears.
11207
M3x10
11216
M2.5x6
5
EMOX2
11207
11216
226401
226402
16
Fast
Slow
16T 17T 18T
Motor gear
19T 20T
22.1
48.3
20.8
45.4
19.6
42.9
18.6
40.6
17.8
38.9
LOCK
