Clip SGD
Appendix 2
IR Link User Guide
Use IR Link to change settings, upgrade firmware, download log events,
and perform calibration

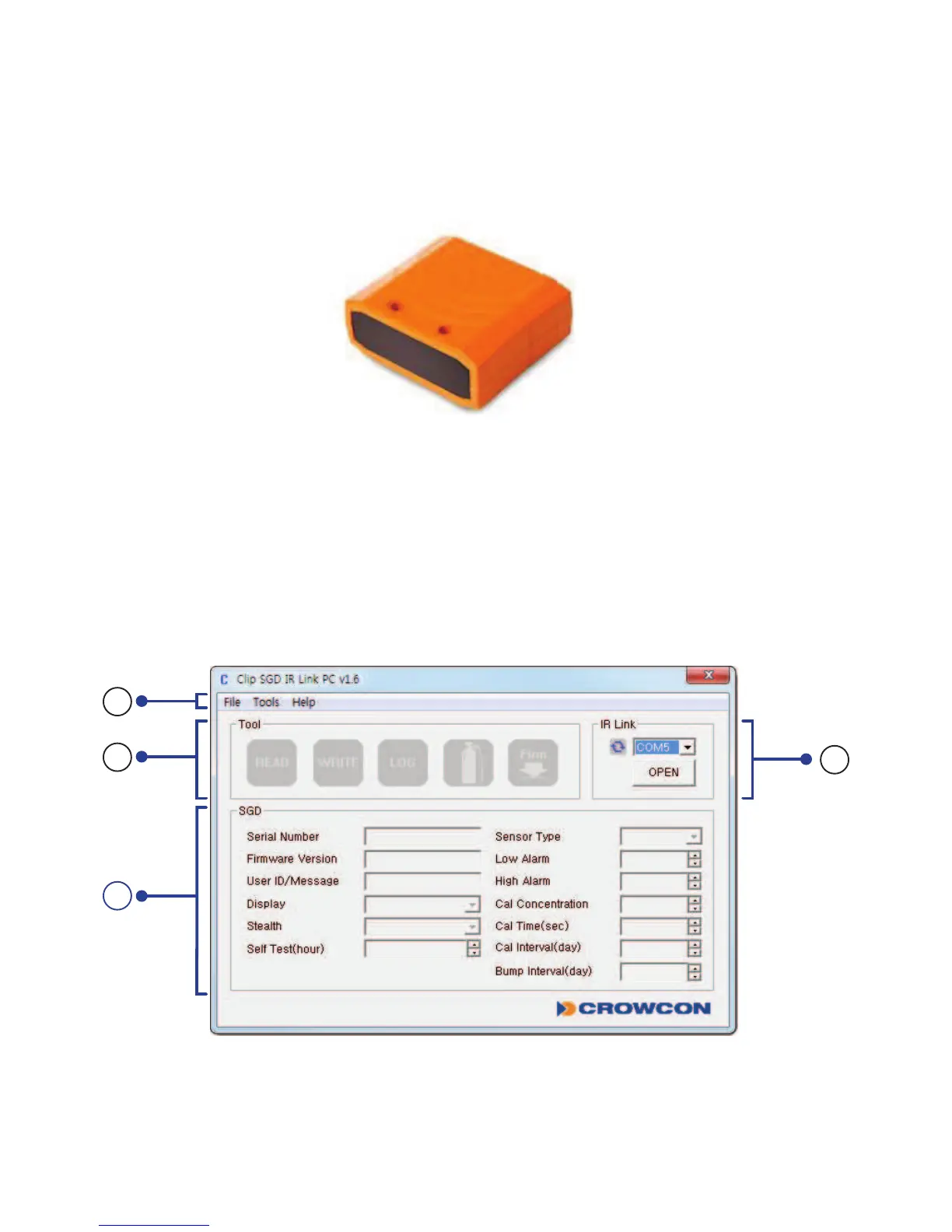

Getting started
To฀interact฀with฀Clip฀SGD,฀the฀software฀must฀be฀installed฀on฀your฀computer.฀Plug฀in฀the฀IR฀
Link฀cable.฀Then,฀place฀the฀topside฀of฀the฀SGD฀face฀down฀to฀the฀IR฀Link฀LCD.
4
2
1
3
