Macro-Tech 600/1200/2400 Power Amplifiers
Page 20 Reference Manual

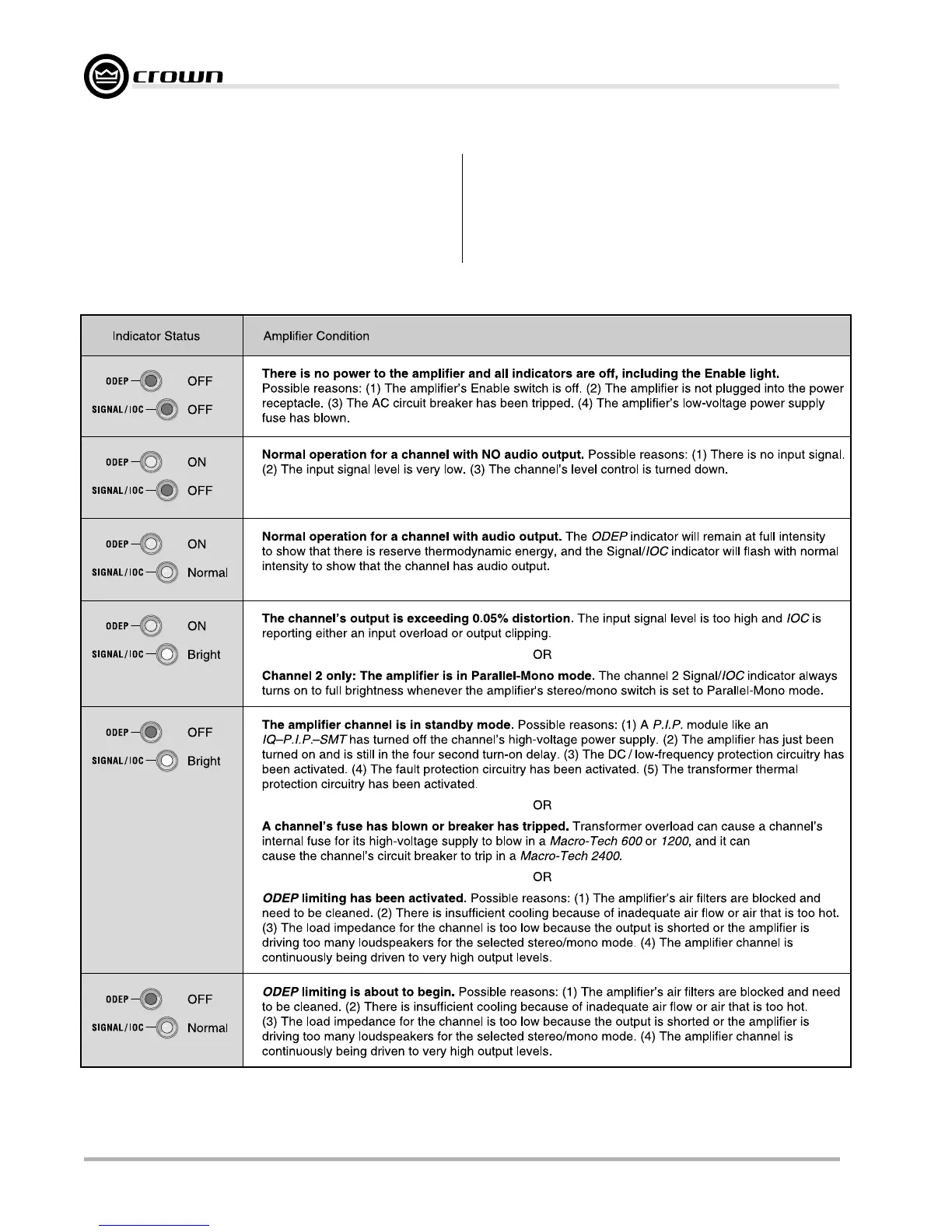

The table in Figure 4.2 shows the possible states for the
ODEP and Signal/IOC indicators. It also describes the
conditions that may be associated with the different in-
dicator states. The Enable indicator will be off with the
first indicator state, “There is no power to the amplifier.”
All other conditions in the table will occur with the En-
able indicator turned on. It is important to note the pos-
sible states of the indicators in the rare event that you
experience a problem. This can greatly aid in deter-
mining the source of problems. Please contact your lo-
cal Crown representative or our Technical Support
Group for futher assistance.
Fig. 4.2
Macro-Tech
ODEP
and Signal/
IOC
Indicator States
