Crown Macro-Tech MA-1200 - Typical Crosstalk for the Macro-Tech 1200; Typical Crosstalk for the Macro-Tech 2400

Macro-Tech 600/1200/2400 Power Amplifiers
Page 35
Reference Manual
100 1 K 10 K 20 K
FREQUENCY (Hz)
dB
TEF
®
100 1 K 10 K 20 K
FREQUENCY (Hz)
dB
TEF
®

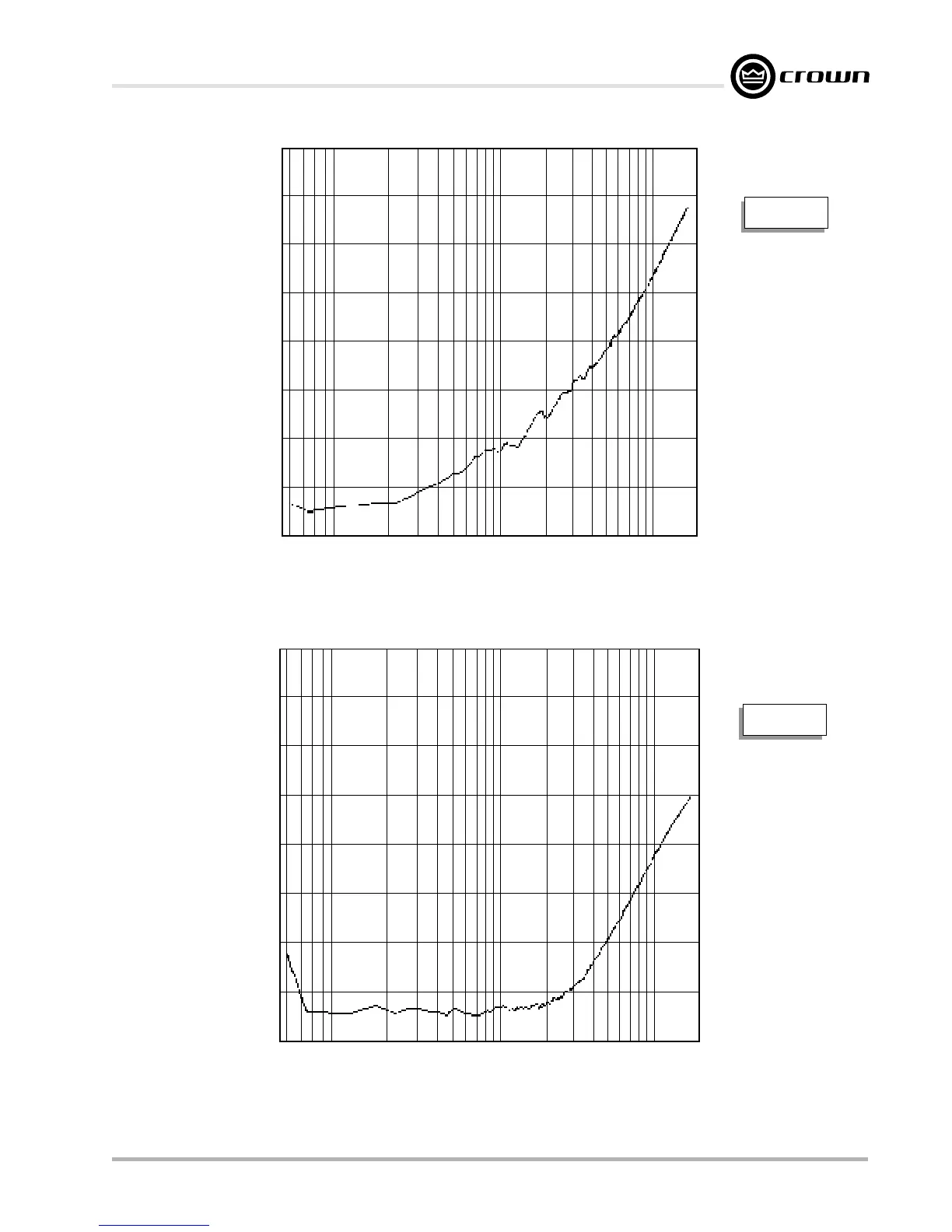

Fig. 6.12 Typical Crosstalk for the Macro-Tech 1200
–66
–72
–78
–84
–90
–96
–102
TEF
Measurement
Fig. 6.13 Typical Crosstalk for the Macro-Tech 2400
–60
–66
–72
–78
–84
–96
–90
TEF
Measurement
