Crown PIP-LITE - Diagram; PIP-USP3 and PIP-USP3;CN Signal Flow Block

page 25
Reference Manual
Networked PIP Series

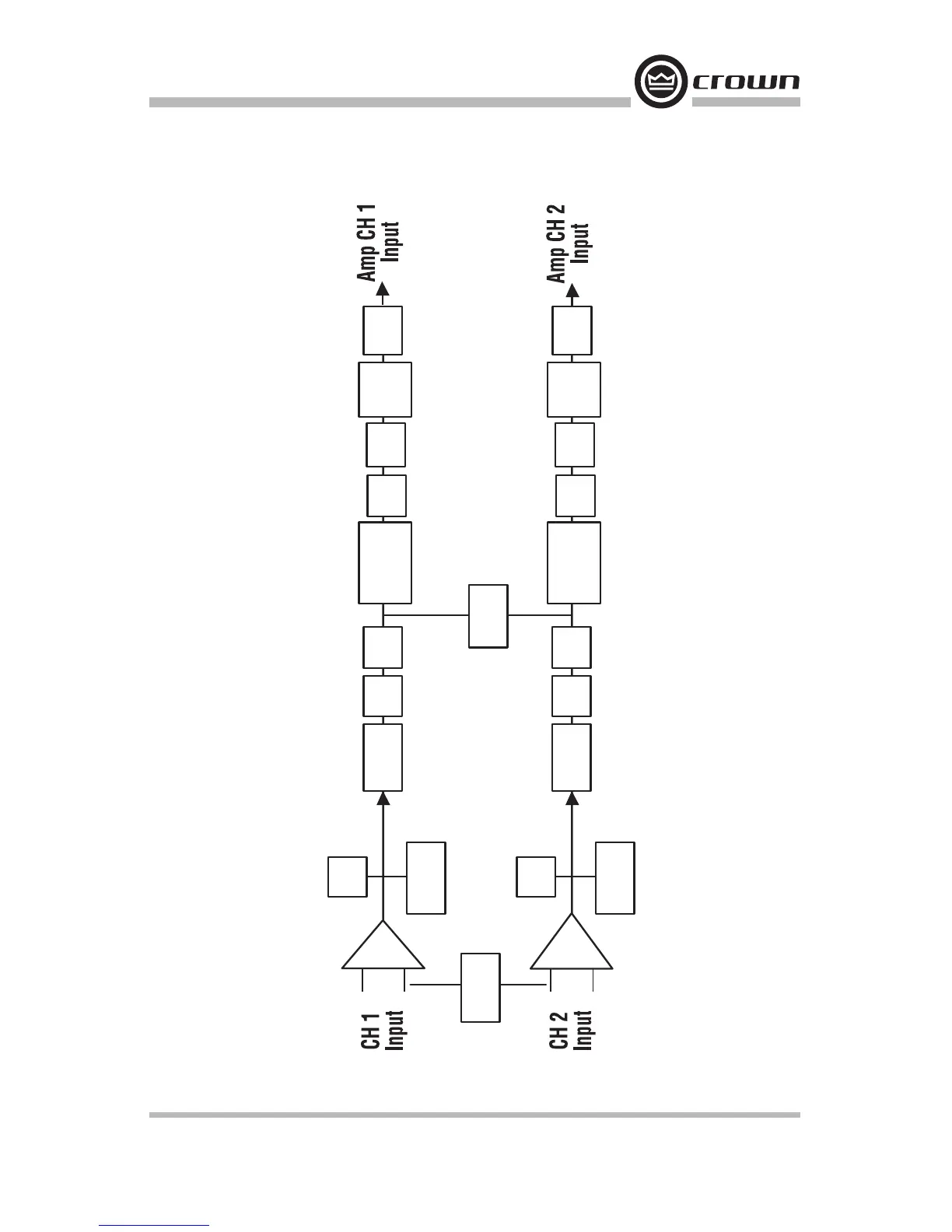

Figure 5.2 shows the system block diagram of the USP3 and USP3/CN.
Figure 5.2 PIP-USP3 and PIP-USP3/CN Signal Flow Block Diagram
Band Pass
Filters and Gain
EQ
Filters
Input
Compressor
Input
Delay
EQ
Filters
Output
Delay
Output
Limiters
Output
Fader
and Mute
Input
Meter
Auto Standby
Gat e
Signal
Generators
Input Source
Selector
Band Pass
Filters and Gain
EQ
Filters
Input
Compressor
Input
Delay
EQ
Filters
Output
Delay
Output
Limiters
Output
Fader
and Mute
Input
Meter
Auto Standby
Gat e
