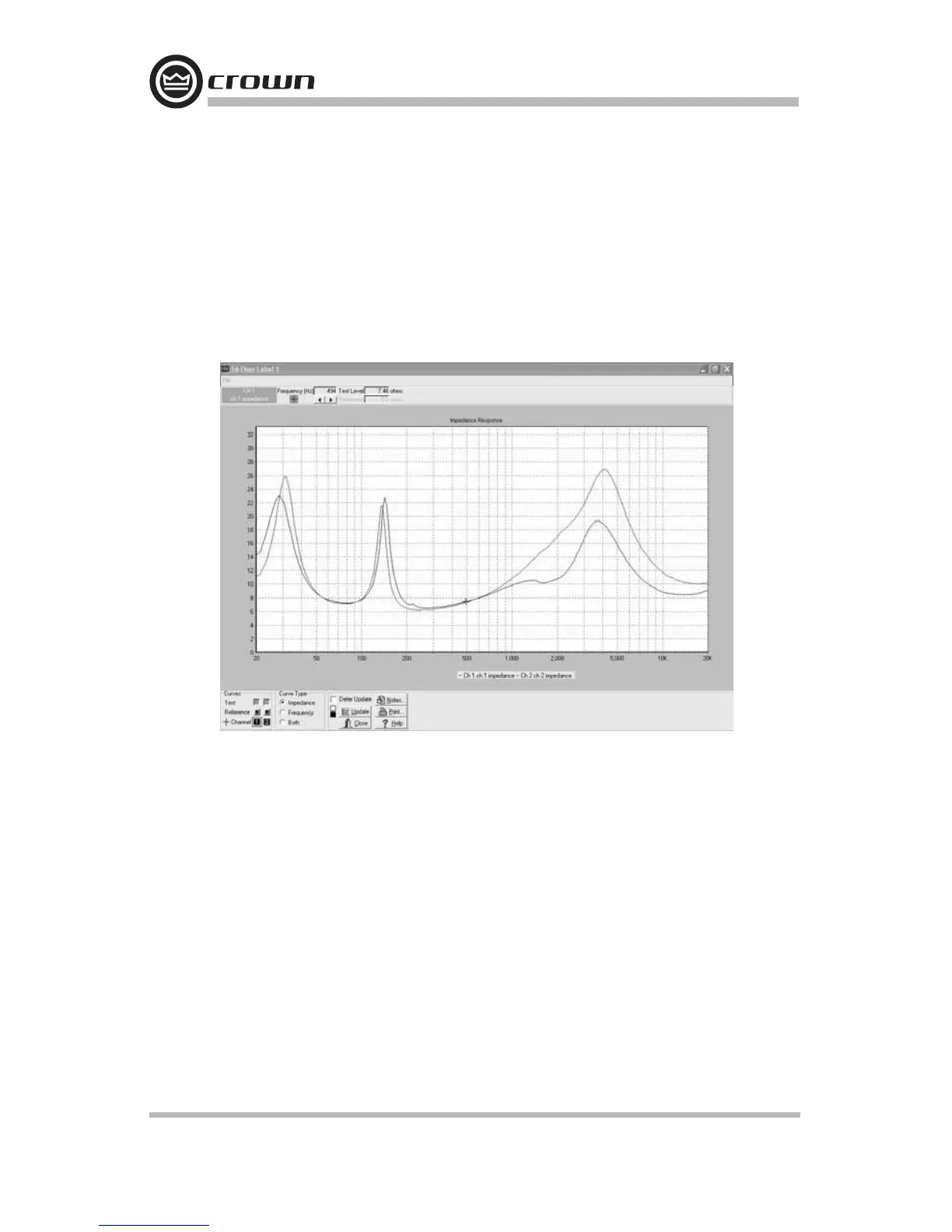

Figure 5.4 Typical Impedance Test Plot of Full-Range Speaker
Curves
Clicking on the "Curves" button will allow you to look at any of the curves that were gener-
ated as the result of tests performed. These curves are displayed in a separate Curve Viewer.
Some typical curves are shown in Figures 5.4, 5.5 and 5.6.
In Figure 5.4, find the File Menu at the top left of the impedance plot. The first choice is
“Export View to .DIF...” .DIF is a common spreadsheet file format. “Notes” allows you to
attach added information that will be saved in the file.
