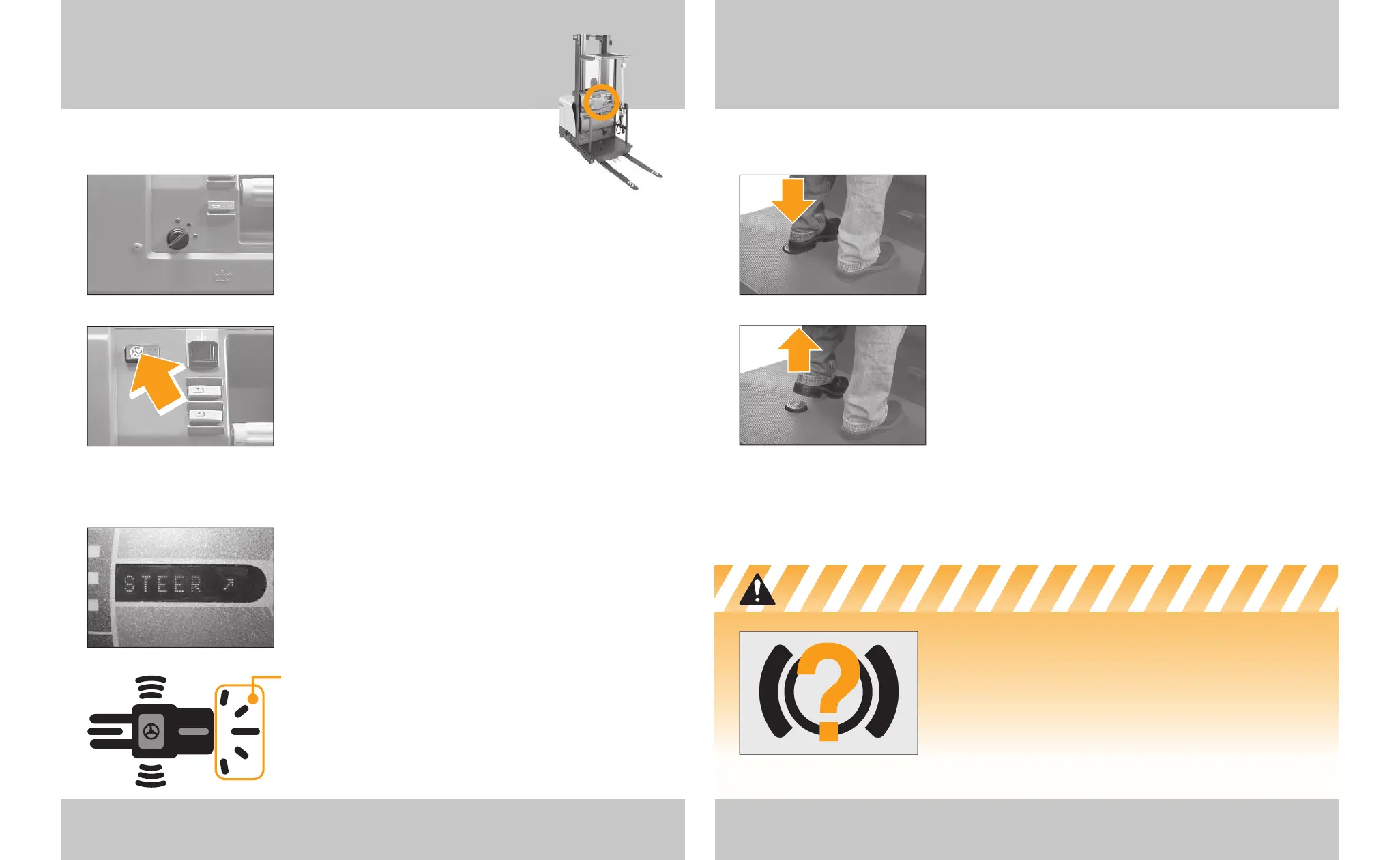

Foot Brake 20
Foot Brake
19 Power On & Off
Power On & Off
KEY SWITCH
• Turn the key sideways to TEST.
Check that the alarm and all display lights are working.
• Let go of the key and it will return to ON.
• Turn the key vertical to shut the truck off. Always
turn the key to OFF when leaving the truck.
EMERGENCY DISCONNECT
Anytime the truck isn’t working right, fi rst stop the truck
and then press the emergency disconnect to cut power
to all truck functions, including steering.
Don’t use the truck. Report the problem to your
supervisor.
Turn the key switch to OFF and back to ON to
reconnect the battery and reset the emergency
disconnect button.
DRIVE WHEEL DIRECTION INDICATOR (without wire guidance opt.)
When you fi rst step on the brake pedal, and until the
truck begins to travel, the display will show the
approximate drive wheel position.
DRIVE WHEEL DIRECTION INDICATORS (with wire guidance opt.)
The green light in the center shows you that the drive
wheel is straight (within 1 degree).
The yellow lights to either side show the approximate
position of the drive wheel while turning.
BRAKE OFF
Step all the way down on the brake pedal. The brake is
"off" and you can travel.
Note:
Slowing or stopping the truck by plugging (see
page 21), requires power to the drive motor. You must
have the brake pedal all the way down for plugging
to work.
BRAKE ON
Take your foot off of the brake pedal to apply the
brake. When you release the brake pedal, power is cut
to the drive motor. Remember, with the brake applied,
you can't use plugging, (see page 21).
Know the Hazards
MAKE SURE YOUR BRAKES WORK
Test the brake on your truck at the start of each shift.
Know the distance it takes to stop before you start
working.
If at any time the stopping distance is too long for you
to stop safely, don't drive the truck. Report any
problem to your supervisor.
