XLS Series Power Amplifiers
page 9
Operation Manual
2 Setup
2.6.2 Bridge-Mono Mode
INPUTS: Use a custom “Y” adapter cable, wired
to split the signal and invert the polarity for the
Channel 2 amplifier input as shown in Figure
2.10. We recommend you label the ends of the Y
adapter to help make sure to connect the correct
end to each amplifier input.
Connect the Y adapter between the signal source
and each amplifier input (Figure 2.11).
NOTE: Crown provides a reference of wiring pin
assignments for commonly used connector
types in the Crown Amplifier Application Guide
available at www.crownaudio.
OUTPUTS: There are two ways to wire the ampli-
fier output connectors for Bridge-Mono mode:
1) Wire the speaker across the red binding post
of each channel (Figure 2.11). Do not use the
black binding posts when the amp is being oper-
ated in Bridge-Mono mode.
2) Wire the speaker only to the top Speakon con-
nector as shown in Table 3 and Figure 2.12.
NOTE: The Channel 1 and 2 level controls
MUST be set to identical settings when
operating the XLS amplifier in Bridge-
Mono mode.

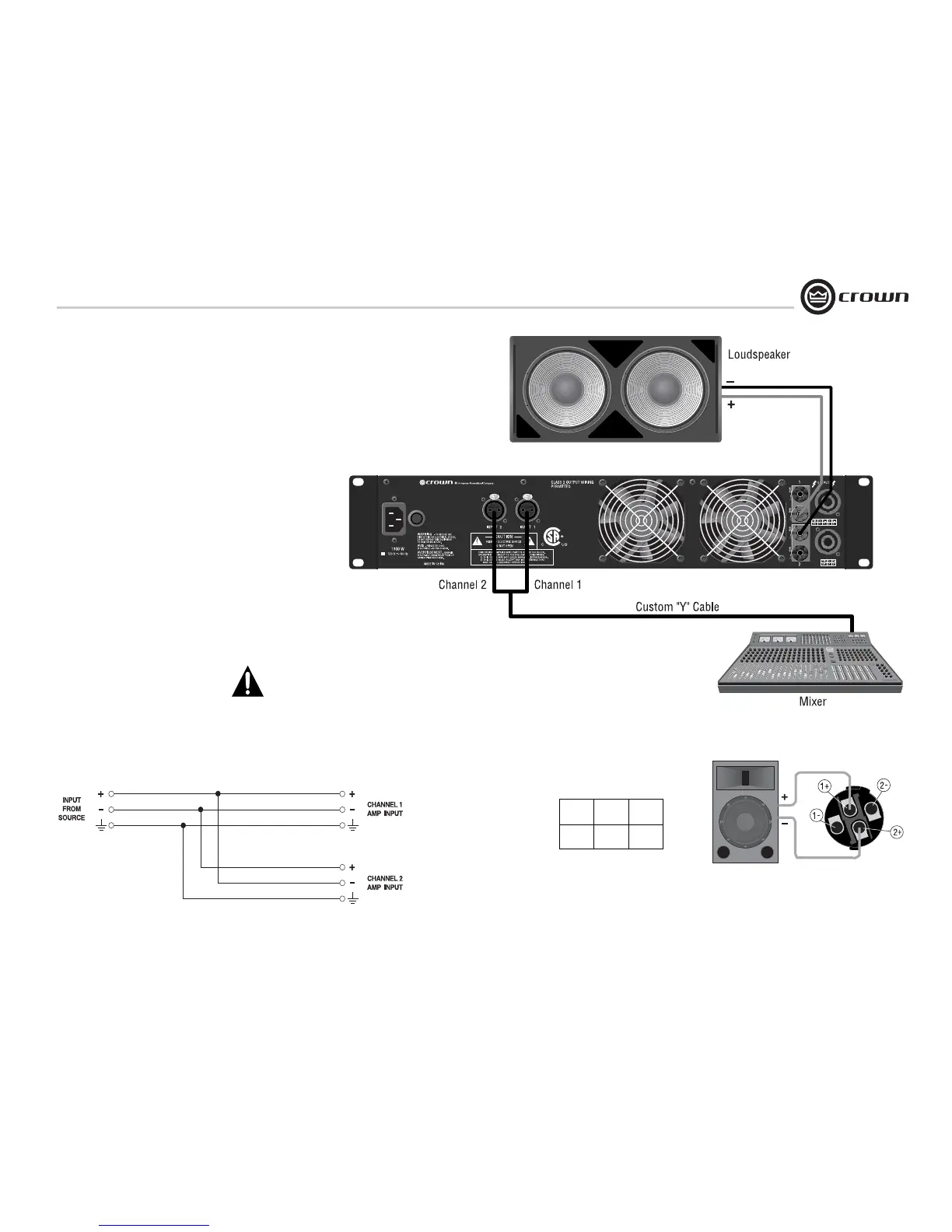

Figure 2.10
Custom Y-Input
Cable
Figure 2.11 Bridge-Mono Wiring of 5-Way Binding Posts
Figure 2.12 Alternate Bridge-Mono Wiring:
Loudspeaker Wired to Amplifier’s Top
Speakon
Connector
PIN 1+ 2+
CH 1+ 1–
Top Speakon Wiring for Bridge-Mono
Table 3
