XTi2.5 系列功率放大器XTi2.5 Series Power Amplifier
13
Operation Manual 操作手册
5. Wiring (continued)
5.5 Factory Preset #5: SUBSYNTH
Putting the amplifier in SUBSYNTH mode allows you to turn on the SubHarmonic Synth feature for use with a subwoofer
on both channels. The inputs are automatically summed, a 90Hz 4th order (24dB/octave) filter is enabled on both Channel
1 and Channel 2, and the SubHarmonic Synth feature is turned on at +12dB level. The XTi2.5 Series amplifiers come pre-
loaded with a preset that makes it easy to configure the amplifier for this operation.
Before you get started ensure that you:
2. Connect signal source to Channel 1 and Channel 2 using XLR connectors (the amplifier inputs will automatically be
summed together when selecting this preset).

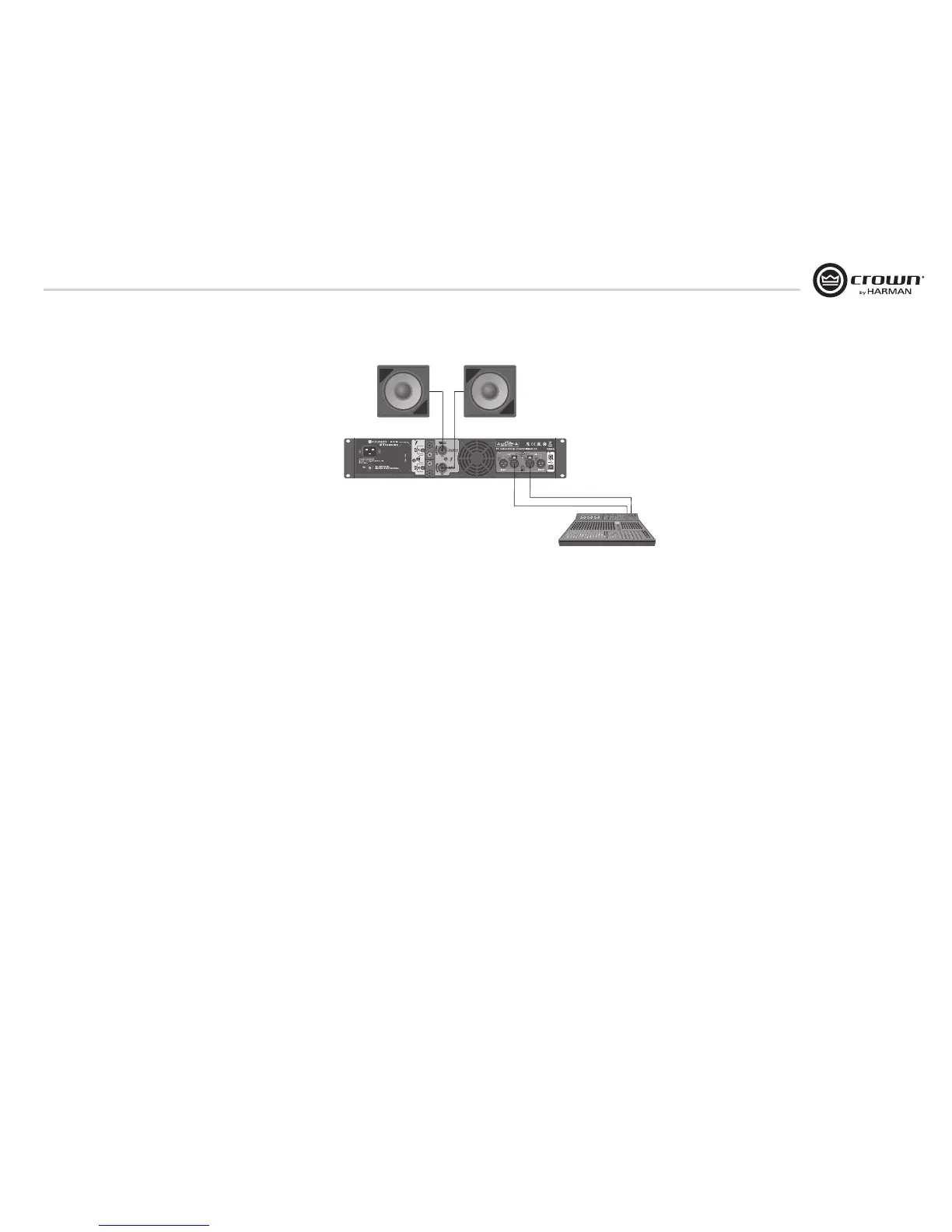

3. Connector the speaker as shown.
a. Connect a speaker to each channel output using Speakon©, Banana Plugs, or bare wire
Follow these quick steps to configure the amplifier for SUBSYNTH operation:
1. Push the “Set/Enter” button and you will see the word “Preset” flashing.
2. Push the “Set/Enter” button again to enter the list of presets in the amplifier.
3. Push the “Next/Down” or “PREV/UP” button until the screen displays “SUBSYNTH”.
4. Push the “Set/Enter” button to confirm your selection.
5. The display will now read “SUBSYNTH” with the Y icon and XOV icon highlighted.
5.5 出厂预设#5：SUBSYNTH（次谐波合成器）
功放在SUBSYNTH（次谐波合成器）模式下时，您可以开启SUBSYNTH（次谐波合成器）功能，以在两
个通道上使用低音单元。输入将自动合并，且两个通道都将启用一个90Hz第4（24dB/octave）滤波，
当达到+12dB时，SUBSYNTH功能开启。XTi2.5系列功放预先装载的预设允许用户作简单配置即可使
用。
在开始之前，请确保：
1. 使用XLR连接接口将音源连接到通道1和通道2。（当选择此预设时，功放输入将自动合并到一
起）
2. 如图连接扬声器。
a. 使用Speakon输出接口、香蕉插头和裸线将扬声器连接到每通道输出。
根据如下步骤设置功放作SUBSYNTH操作：
1. 按下Set/Enter按键，“Preset”闪烁。
2. 再次按下Set/Enter按键，进入功放预设清单。
3. 按下Next/Down或Prev/up按键，直到屏幕显示”SUBSYNTH”。
4. 按下Set/Enter按键，确认选择。
5. 显示屏显示“SUBSYNTH”字样，同时Y图标和SUBSYNTH图标点亮。
