Error found on the device (no commissioning performed)
No errors found and the device is currently transmitting or receiving data
Operating normally

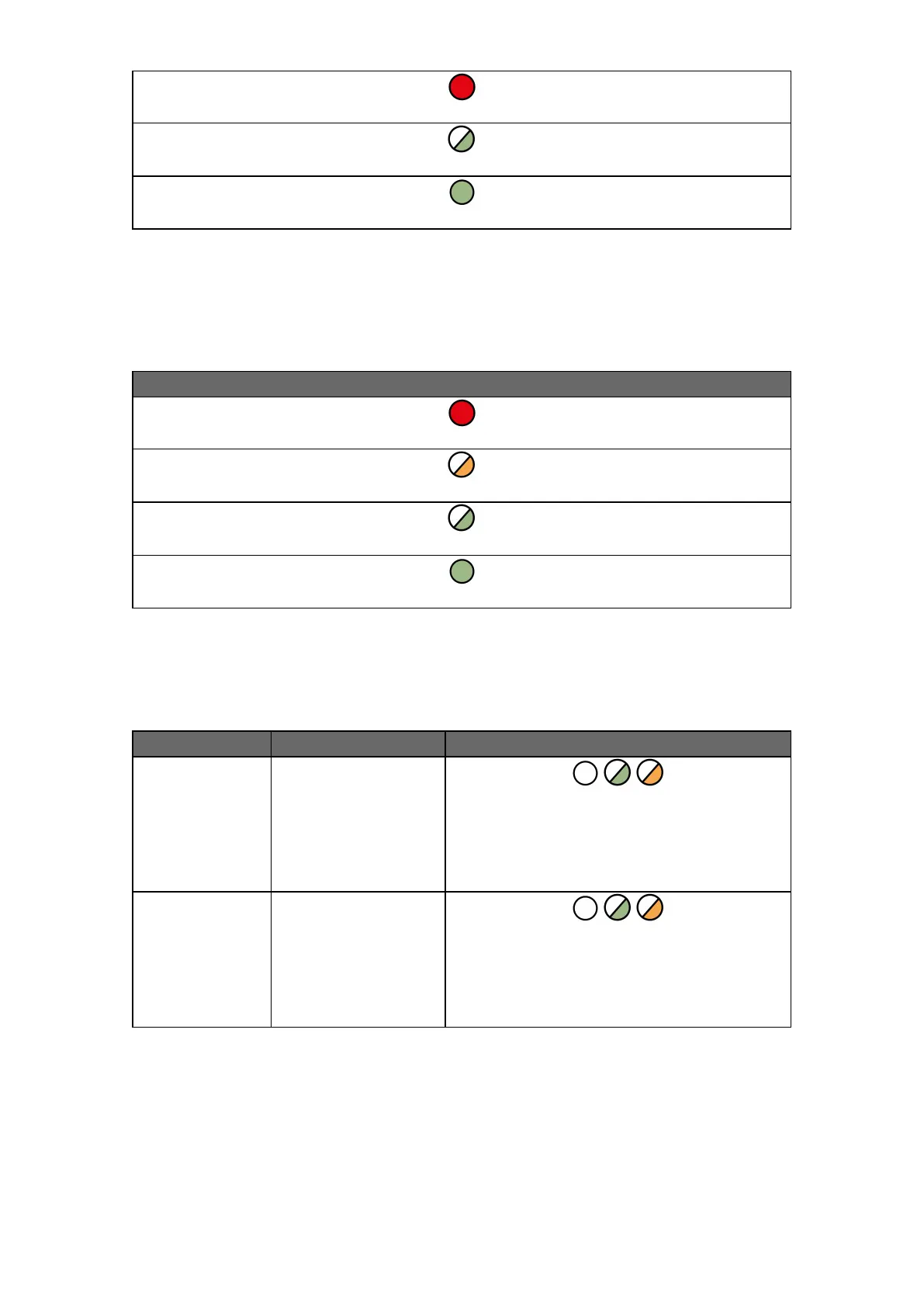

Figure 12 - Quiescent/Normal State LEDs
From the quiescent/normal state, press button A. Only LED 1 will show.
LED 1
No signal / SIM not ready or LAN not connected
Registering / Signal is unacceptable / LAN connected but cannot transmit data
Signal is acceptable (3/10) but could be improved
Signal 4/10 (or above) or LAN connected
Figure 13 – Connectivity Section
There are 2 additional LEDs shown as PNL and ETH.
LED DESCRIPTION LED DESCRIPTION
PNL
Serial connection to
panel
Indicates if any of the serial connections to
a panel are in use. If the LED is flashing
green, data is being transferred. This LED
will not be lit if there is no serial integration
to the panel.
ETH
LAN connection to
customer’s network
Indicates if there is a LAN connection to the
customer’s router. If the LED is flashing
green, data is being detected on the local
link. This LED will not be lit if there is no
physical LAN connected.
Figure 14 – Additional LEDs
RADIO ONLY TROUBLESHOOTING
Q. How can I fail my signalling paths without having to disconnect them?
A. To fail each path, from Quiescent/Normal state, press Button A. Press and hold B
