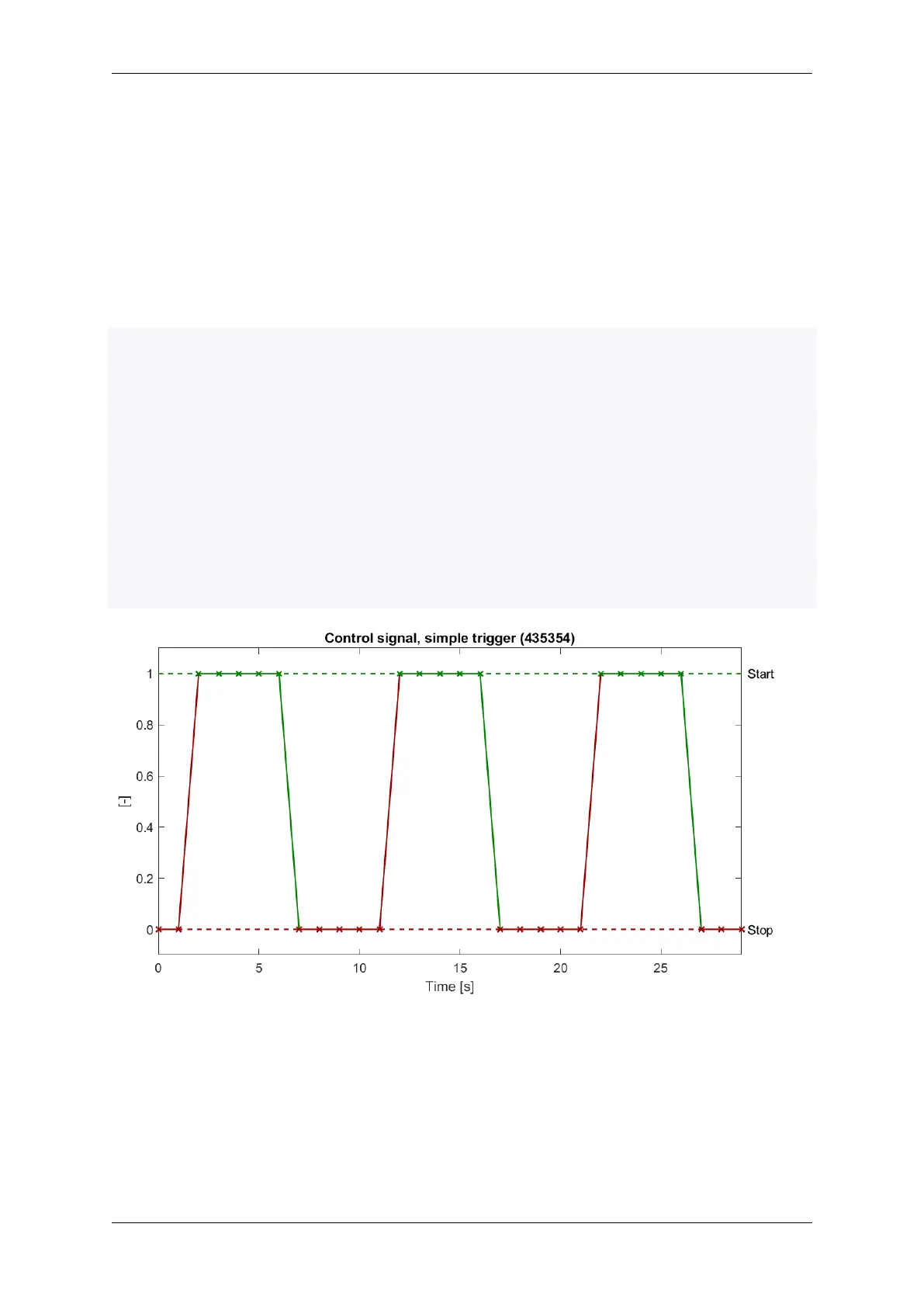

Example: Start / stop on simple discrete value. In this example the start / stop is controlled via a single
byte.
Start trigger:
• High: 01
16
⇒ on
• Low: 01
16
⇒ on
Stop trigger:
• High: 00
16
⇒ off
• Low: 00
16
⇒ off
"start": {
"id_format": 1,
"id": "00435354",
"id_mask": "1FFFFFFF",
"data_mask": "FF",
"data_high": "01",
"data_low": "01"
},
"stop": {
"id_format": 1,
"id": "00435354",
"id_mask": "1FFFFFFF",
"data_mask": "FF",
"data_high": "00",
"data_low": "00"
}
Example: Start / stop on J1939 broadcast speed. This can be used to start logging when a vehicle is
moving.
Start trigger:
• High: 0000070000000000
16
⇒ 7 km/h
• Low: 0000030000000000
16
⇒ 3 km/h
Stop trigger:
• High: 0000010000000000
16
⇒ 1 km/h
