6
3(10)
161 145 07 02-01
02. INSTALLATION
2.1. CTC 950 with one heating circuit without hot water.
• Electrical diagram D-580070

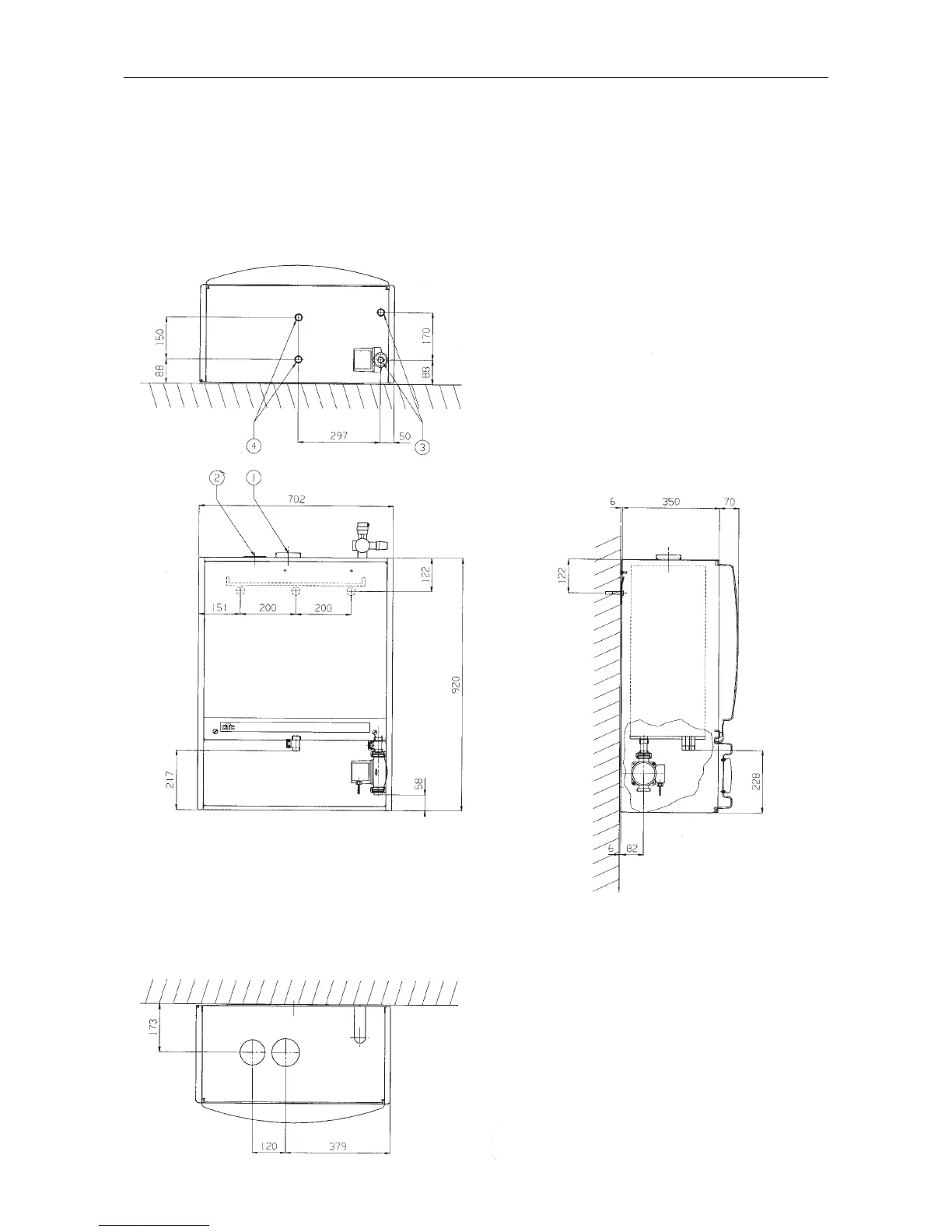

Dimensions
1. Flue outlet diam 82 mm internal
with high temp sealing diam 80 mm
2. Air inlet hose diam 80 mm internal
3. Flow G 3/4” internal/external
4. Return G 3/4” external
