Figure 7
NOTE: The crowned (rounded) surface of the front
bell washers should be against the shoulder screw,
between the front ball wheel and deck gauge wheel
bracket. The cupped surface of the bell washer should
be against the deck.
• If the gauge wheels have excessive clearance with
the surface below, lower the wheels to the index
hole that provides the approximate 1/2" clearance
as described above.
Refer to Leveling the Deck on page 17 of this manual for
more detailed instructions regarding various deck
adjustments.
Starting the Engine
WARNING: Do not operate the tractor if the
interlock system is malfunctioning. This
system was designed for your safety and
protection.
NOTE: Refer to the TRACTOR SET-UP on page 8 of this
manual for Gasoline and Oil fill-up instructions.
• Insert the tractor key into the ignition switch.
• Place the PTO knob in the disengaged (OFF)
position.
• Engage the tractor’s parking brake.
• Place the throttle control in the FAST position
• Pull the choke control outward.
• Turn the ignition key clockwise to the START
position. After the engine starts, release the key. It
will return to the ON position.
IMPORTANT:
Do NOT hold the key in the START
position for longer than ten seconds at a time. Doing so
may cause damage to your engine’s electric starter.
• After the engine starts, deactivate the choke
control.
NOTE: Upon starting the engine, a metallic ticking
may occur. This is caused by the hydraulic lifter
leakdown during storage. Run the engine for five
minutes. The noise will normally cease in the first
minute. If noise continues, run the engine at mid-throttle
for twenty minutes. If noise persists, have the engine
serviced by your Cub Cadet dealer.
NOTE: Do NOT leave the choke control on while
operating the tractor. Doing so will result in a "rich" fuel
mixture and cause the engine to run poorly.
Stopping the Engine
WARNING: If you strike a foreign object,
stop the engine, disconnect the spark plug
wire(s) and ground against the engine.
Thoroughly inspect the machine for any
damage. Repair the damage before restarting
and operating
• If the blades are engaged, place the PTO knob in
the disengaged (OFF) position.
• Place the throttle control near the FAST position
• Turn the ignition key counterclockwise to the STOP
position.
• Remove the key from the ignition switch to prevent
unintended starting.
Engaging the Parking Brake
To engage the parking brake:
• Fully depress the brake pedal and hold it there
while gently pushing the parking brake lever
downward.
• Hold the parking brake lever down while removing
your foot from the brake pedal.
• Once engaged, the parking brake lever and the
brake pedal will lock in the “down” position.
To disengage the parking brake:
• Slightly depress the brake pedal.
NOTE: The parking brake must be engaged if the
operator leaves the seat with the engine running or the
engine will automatically shut off.
Driving The Tractor
WARNING: Avoid sudden starts, ex-
cessive speed and sudden stops.
WARNING: Do not leave the seat of the
tractor without first placing the PTO knob in
the disengaged (OFF) position, depressing
the brake pedal and engaging the parking
brake. If leaving the tractor unattended, also
turn the ignition key off and remove the key.

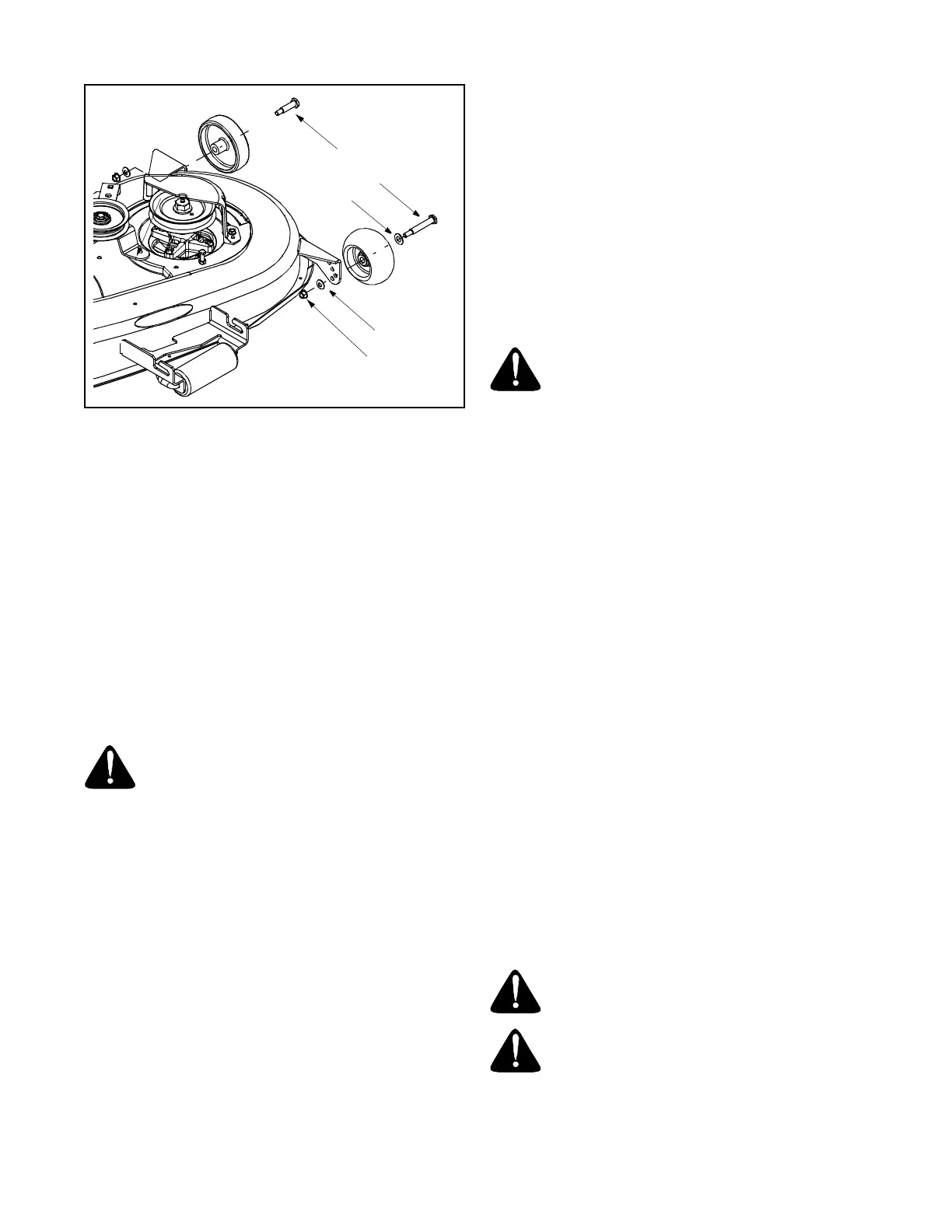

Lock nut
Shoulder Screws
Flat Washer
Bell Washer
