Moving The Tractor Manually
Your tractor’s transmission is equipped with a
hydrostatic relief valve for occasions when it is
necessary to move the tractor manually. Opening this
valve permits the fluid in the transmission to bypass its
normal route, allowing the rear tires to "freewheel." To
engage the hydrostatic relief valve, proceed as follows:
• Locate the hydrostatic bypass rod in the rear of the
tractor. See Figure 9.

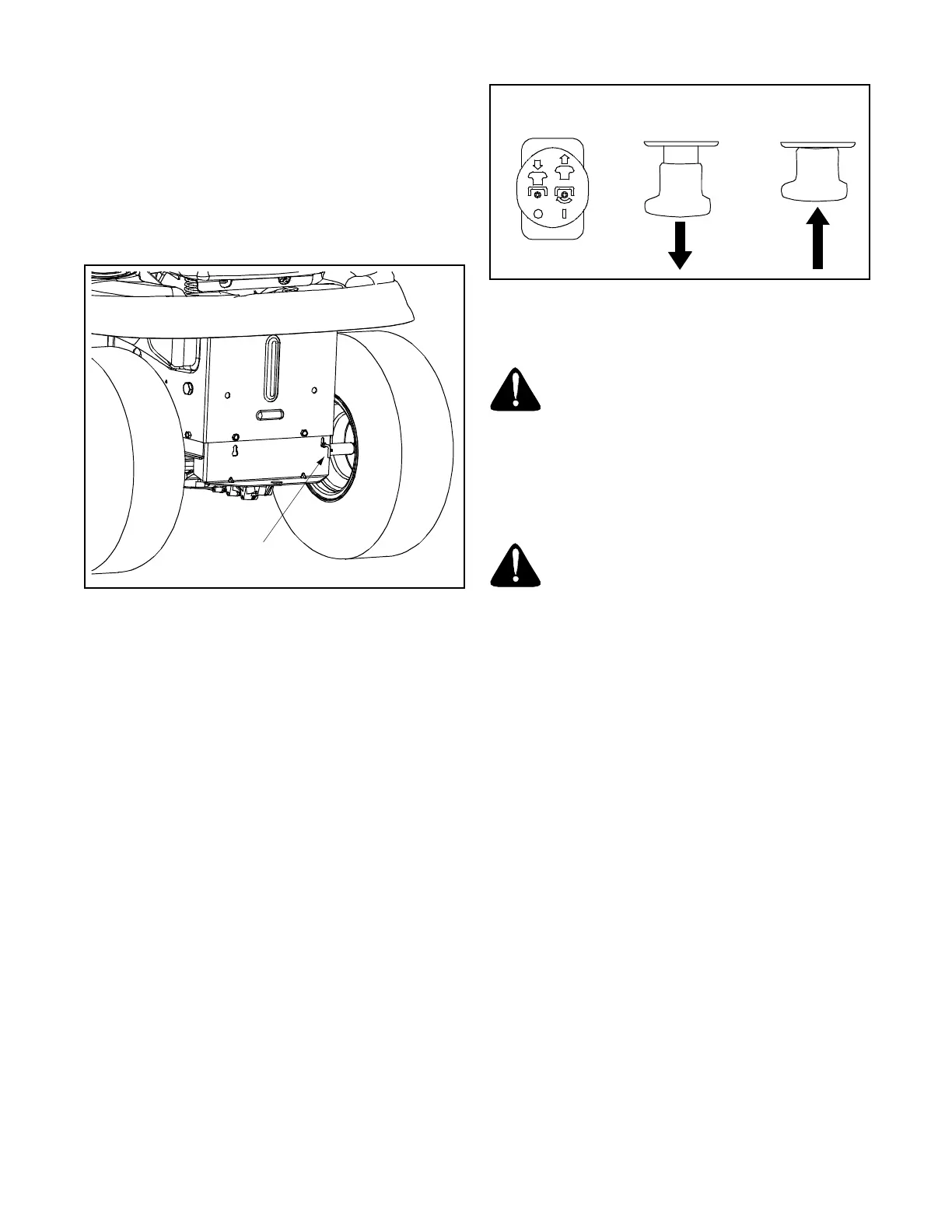

Figure 9
• Pull the hydrostatic bypass rod outward, then
down, to lock it in place.
NOTE: The transmission will NOT engage when the
hydrostatic bypass rod is pulled out. Return the rod to
its normal position prior to operating the tractor.
IMPORTANT:
Never attempt to move the tractor
manually without first engaging the hydrostatic relief
valve. Doing so will result in serious damage to the
tractor’s transmission.
Engaging the PTO
Engaging the PTO transfers power to the cutting deck
or other (separately available) attachments. To engage
the PTO, proceed as follows:
• Move the throttle control lever to the FAST (rabbit)
position.
• Pull the PTO knob outward into the engaged (ON)
position. See Figure 10.
• Keep the throttle lever in the FAST (rabbit) position
for the most efficient use of the cutting deck or other
(separately available) attachments
IMPORTANT:
The electric PTO clutch will automatically
shut off if the PTO is engaged with the drive pedal in
position for reverse travel. Refer to Safety Interlock
Switches on page 12.
Figure 10
Mowing
WARNING: To help avoid blade contact or
a thrown object injury, keep bystanders,
helpers, children and pets at least 75 feet
from the machine while it is in operation. Stop
machine if anyone enters the area.
This tractor is equipped with one of Cub Cadet’s quality
cutting decks. The following information will be helpful
when using the cutting deck with your tractor.
WARNING: Plan your mowing pattern to
avoid discharge of materials toward roads,
sidewalks, bystanders and the like. Also,
avoid discharging material against a wall or
obstruction which may cause discharged
material to ricochet back toward the operator.
• Do not mow at high ground speed, especially if a
mulch kit or grass collector is installed.
• For best results it is recommended that the first two
laps be cut with the discharge thrown towards the
center. After the first two laps, reverse the direction
to throw the discharge to the outside for the
balance of cutting. This will give a better
appearance to the lawn.
• Do not cut the grass too short. Short grass invites
weed growth and yellows quickly in dry weather.
• Mowing should always be done with the engine at
full throttle.
• Under heavier conditions it may be necessary to go
back over the cut area a second time to get a clean
cut.
• Do NOT attempt to mow heavy brush and weeds
and extremely tall grass. Your tractor is designed to
mow lawns, NOT clear brush.
• Keep the blades sharp and replace the blades
when worn. Refer to Cutting Blades on page 25 of this
manual for proper blade sharpening instructions.
Hydrostatic
Bypass Rod
ON
OFF
Front View Pull Out
Push In
