Cast Iron Transmission Disassembly15
15A- 4
5. Remove the center hex lock nuts securing the
axle hubs to the axles using a 1-5/16” socket.
See Figure 2.
6. Chock and level the hydrostatic transmission
from below. See Figure 3.
7. Remove the hex screw and clamp securing the
hydraulic pickup tube to the charge pump using a
7/16” socket. See Figure 4.
8. Remove the hex screw and clamp securing the
hydraulic pickup tube to the transmission hous-
ing using a 7/16” socket. See Figure 5.

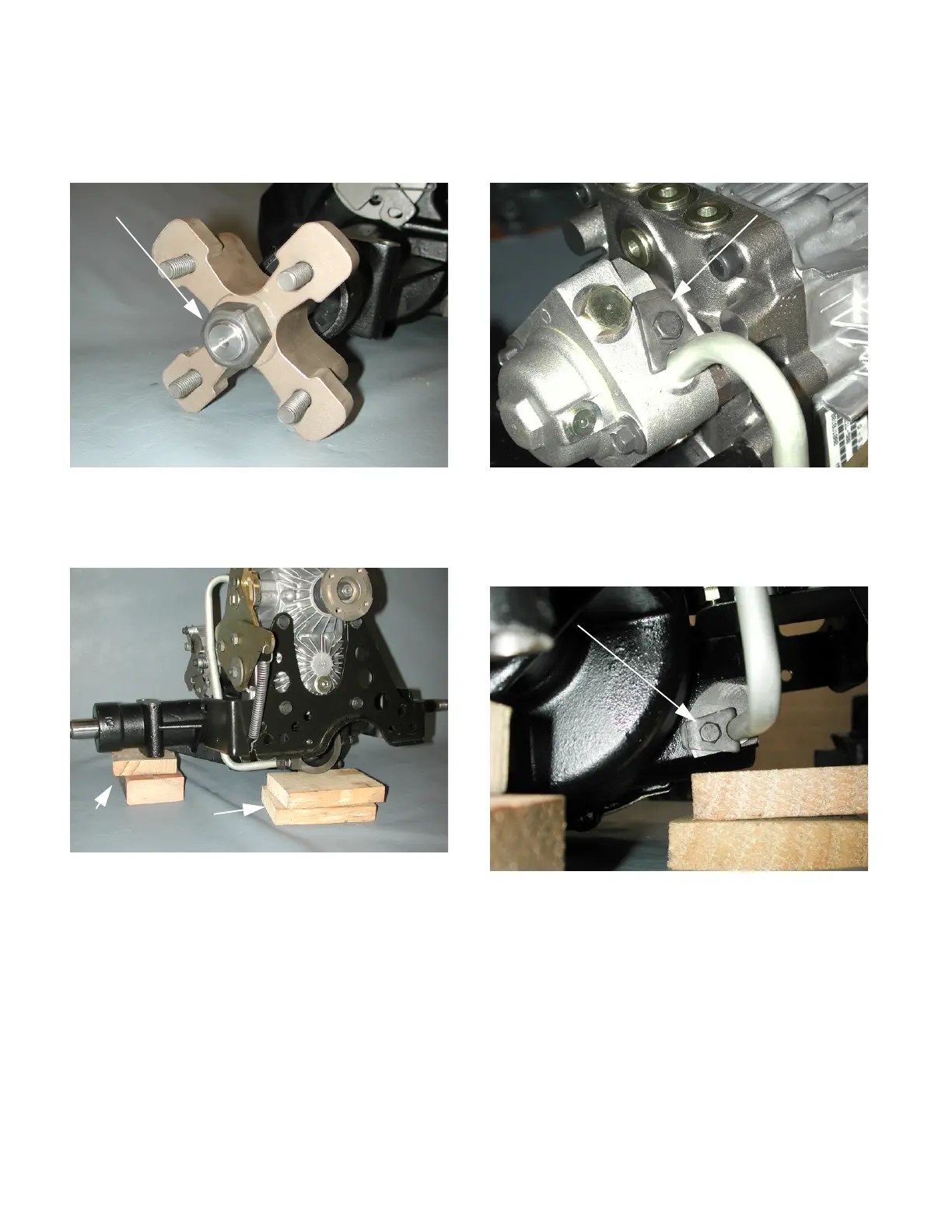

Figure 2
Center Hex Lock Nut
Figure 3
Wooden Chocks
Figure 4
Hex Screw and Clamp
Figure 5
Hex Screw and Clamp
