Cast Iron Transmission Disassembly1
15A- 5

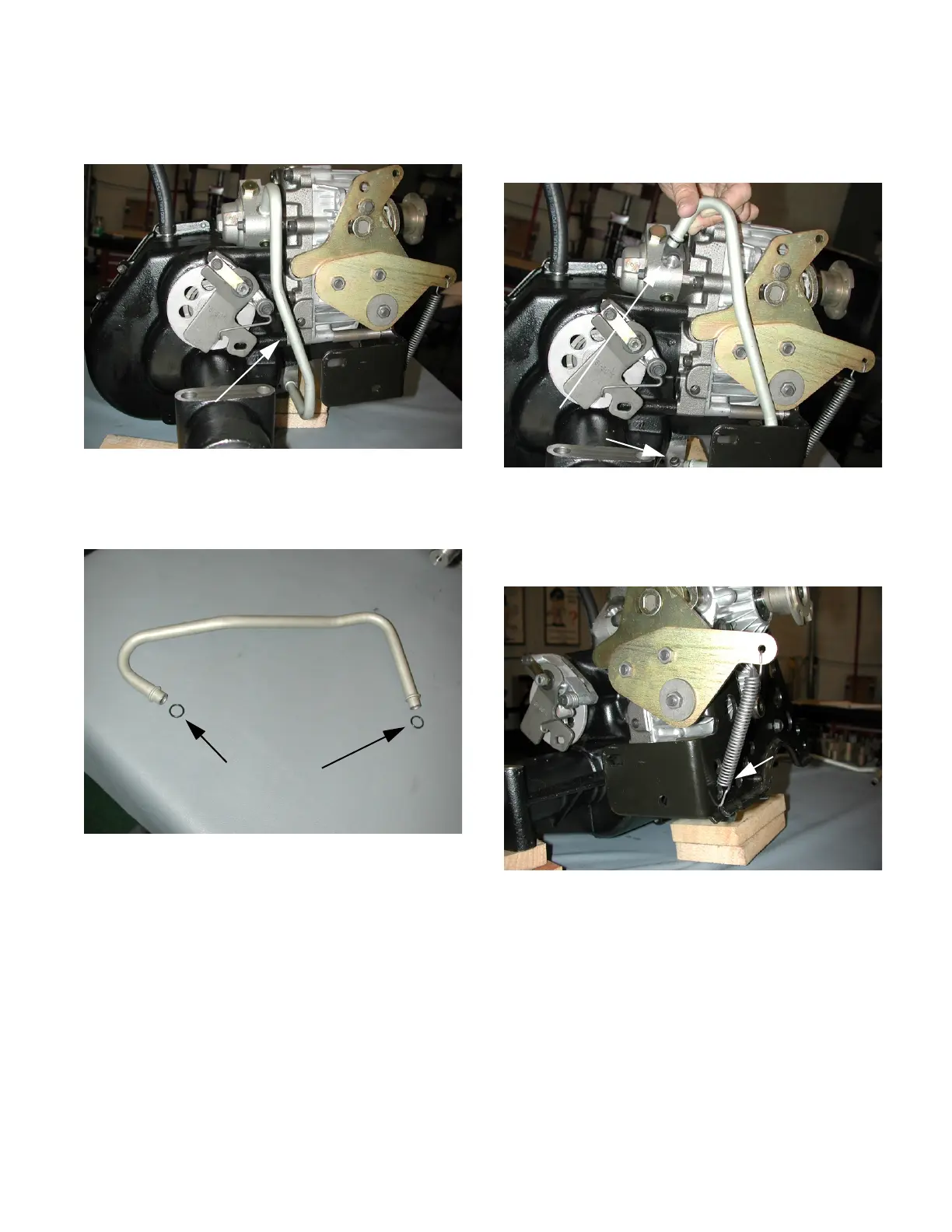

9. Remove the hydraulic pickup tube and inspect
for contamination. See Figure 6.
10. Remove and replace the “O” ring on each end of
the pickup tube. See Figure 7.
Figure 6
Hydraulic Pickup Tube
Figure 7
“O” Rings
11. Inspect and cap the input and output ports where
the hydraulic pickup tube was removed.
See Figure 8.
12. Remove the extension spring from the torque
bracket using a short piece of recoil rope. See
Figure 9.
Figure 8
Inspect and cap the inlet ports
Figure 9
Extension
Spring
