12
Figure 10
SECTION 5: MAKING ADJUSTMENTS
Adjusting the Mower Deck Height
• To push or pull the lift lever, depress and hold the
button. Refer to Figure 5.
• Move the handle up/down to the desired location.
• Release button at the desired position.
Adjusting the Seat Position
• Lift the seat adjustment lever. Refer to Figure 4.
• Slide the seat either forward or back to the desired
location.
• Lock the seat in position by releasing the seat
adjustment lever.

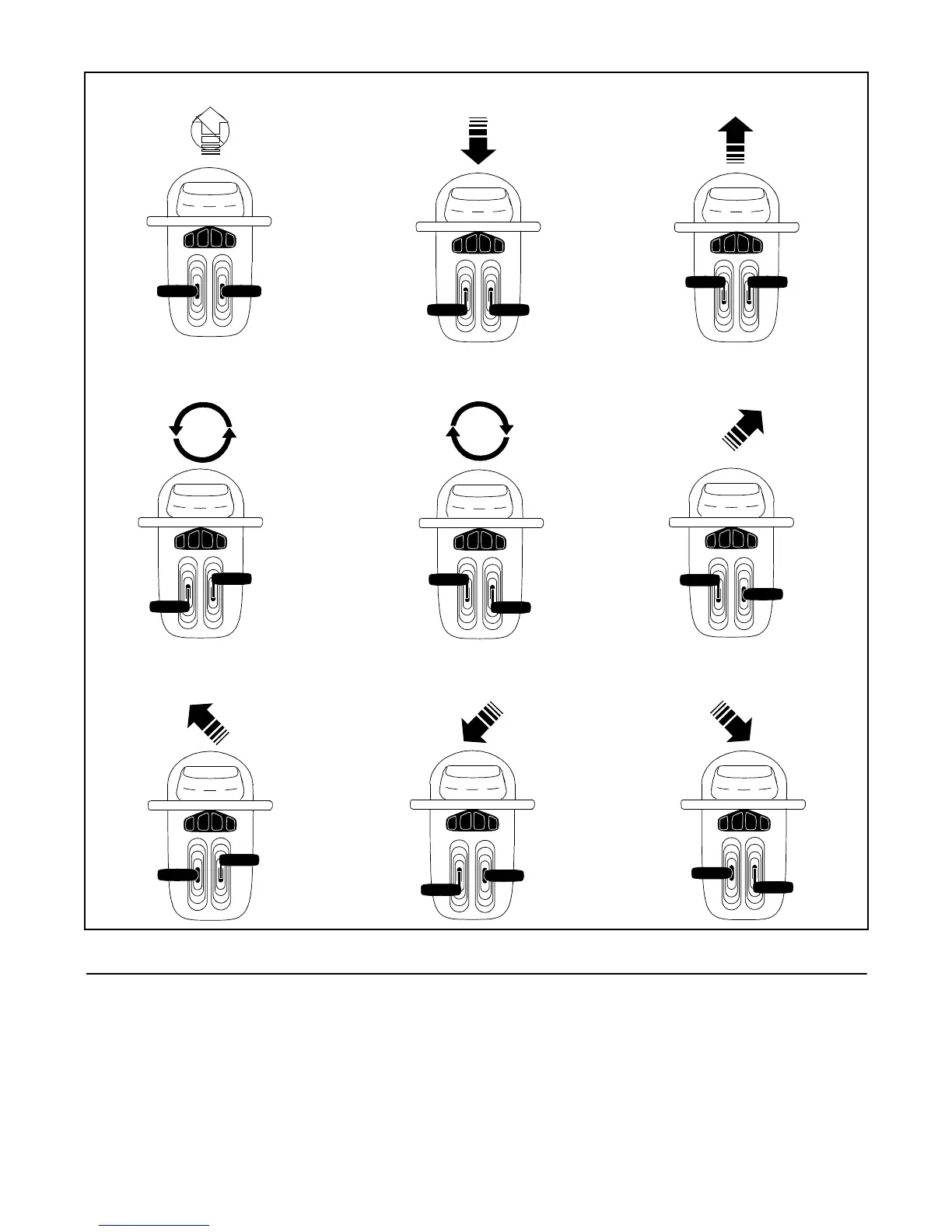

Release Handles = Neutral / Stop
Pull Handles Equal Back =
Straight Reverse
Push Handles Equal Forward =
Straight Forward
Full Right Forward And Full
Left Back = Zero Turn Left
Full Right Back and Full Left
Forward = Zero Turn Right
Right Neutral And Left Forward =
Right Turn
Right Forward And Left Neutral =
Left Turn
Right Neutral And Left Back =
Reverse Left
Right Back And Left Neutral =
Reverse Right
