Cub Cadet 7304 - Starter

-37-

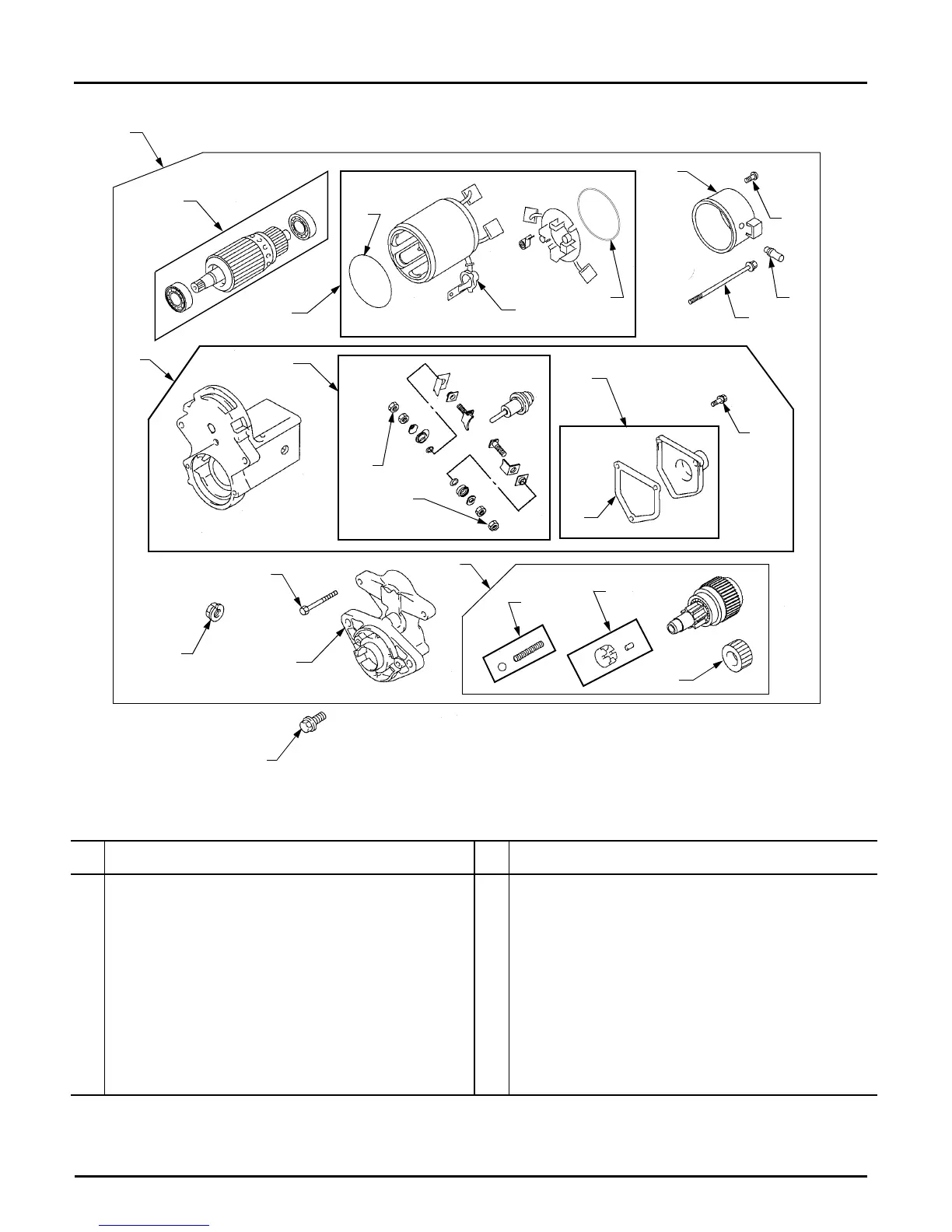

STARTER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
11
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 BS-820767 Gear, Starter Drive .......................... 1
2 BS-825222 Motor, Starter ................................... 1
3 BS-820773 Screw, Starter Motor ........................ 2
4 BS-825437 Terminal Kit, Solenoid ..................... 1
5 BS-820067 Nut, Starter Motor Terminal ............. 1
6 BS-820719 Gasket, Solenoid Cover ................... 1
7 BS-820725 Boot, Terminal ................................. 1
8 BS-820763 Screw, Solenoid Cover .................... 1
9 BS-825406 Drive, Starter ................................... 1
10 BS-825404 Armature .......................................... 1
11 BS-820769 Seal, O-Ring .................................... 2
12 BS-820723 Nut, Solenoid Terminal .................... 1
13 BS-820721 Nut, Solenoid Terminal .................... 1
14 BS-825422 Cover, Solenoid ............................... 1
15 BS-825402 Spring, Detent .................................. 1
16 BS-820777 Screw, Drive Cap ............................. 1
17 BS-825401 Clutch Roller .................................... 1
18 BS-825408 Cap, Drive ........................................ 1
19 BS-820771 Cap, End .......................................... 1
20 BS-825423 Housing, Starter (Includes 2 Brushes) 1
21 BS-825410 Solenoid, Starter .............................. 1
22 BS-820019 Screw, Starter Motor ........................ 1
23 BS-820779 Plug, Vent ........................................ 1
24 BS-820775 Screw, End Cap ............................... 1
