Cub Cadet CC 3000 User Manual

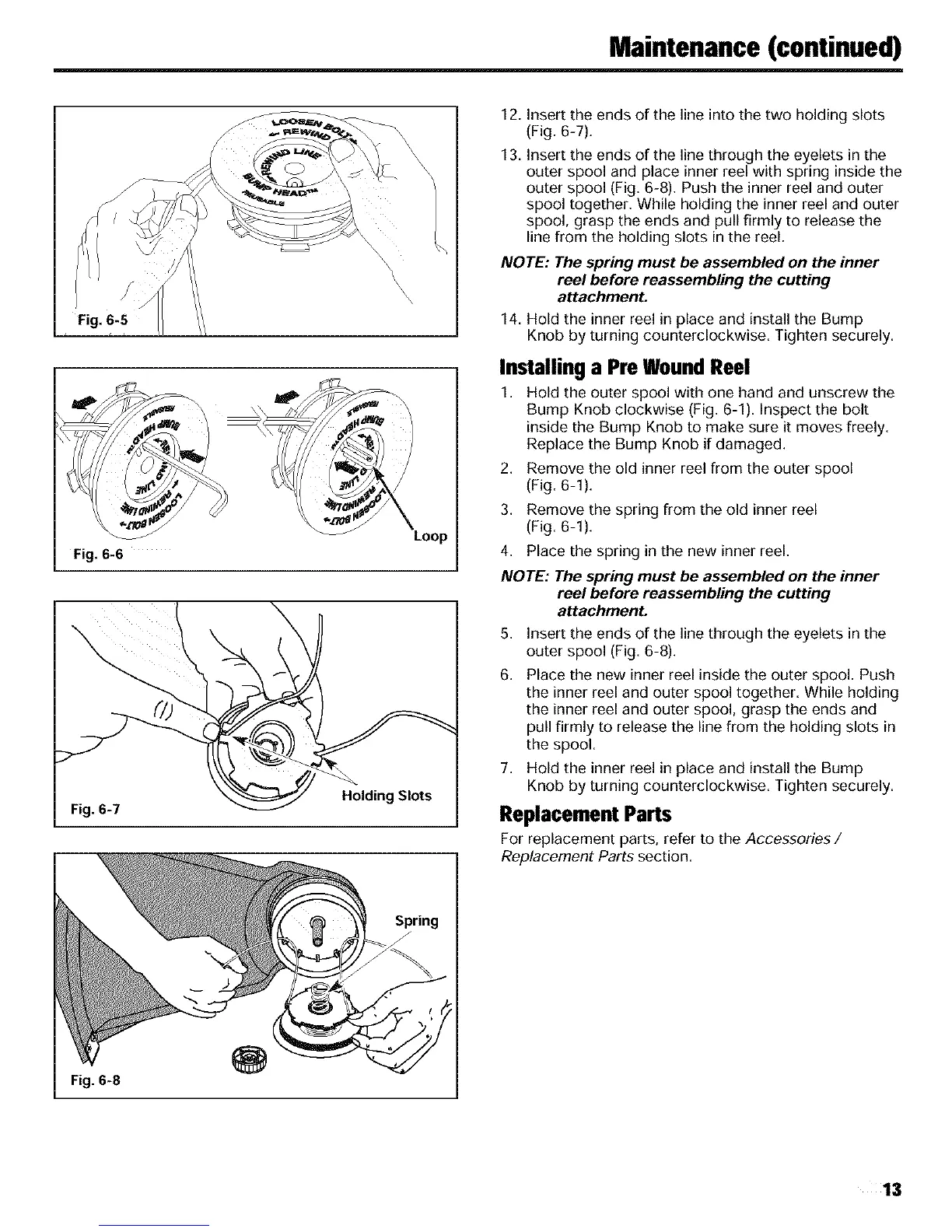

Maintenance (continued)
Fig. 6-6
Loop
Fig. 6-7
Holding Slots
Spring
@
Fig. 6-8
12. Insert the ends of the line into the two holding slots
(Fig. 6-7).
13. Insert the ends of the line through the eyelets in the
outer spool and place inner reel with spring inside the
outer spool (Fig. 6-8). Push the inner reel and outer
spool together. While holding the inner reel and outer
spool, grasp the ends and pull firmly to release the
line from the holding slots in the reel.
NOTE: The spring must be assembled on the inner
reel before reassembling the cutting
attachmenL
14. Hold the inner reel in place and install the Bump
Knob by turning counterclockwise. Tighten securely.
Installing a Pre Wound Reel
1. Hold the outer spool with one hand and unscrew the
Bump Knob clockwise (Fig. 6-1). Inspect the bolt
inside the Bump Knob to make sure it moves freely.
Replace the Bump Knob if damaged.
2.
3.
Remove the old inner reel from the outer spool
(Fig. 6-1).
Remove the spring from the old inner reel
(Fig. 6-1).
4. Place the spring in the new inner reel.
NOTE: The spring must be assembled on the inner
reel before reassembling the cutting
attachmenL
5. Insert the ends of the line through the eyelets in the
outer spool (Fig. 6-8).
.
Place the new inner reel inside the outer spool. Push
the inner reel and outer spool together. While holding
the inner reel and outer spool, grasp the ends and
pull firmly to release the line from the holding slots in
the spool.
7. Hold the inner reel in place and install the Bump
Knob by turning counterclockwise. Tighten securely.
Replacement Parts
For replacement parts, refer to the Accessories/
Replacement Parts section.
13
