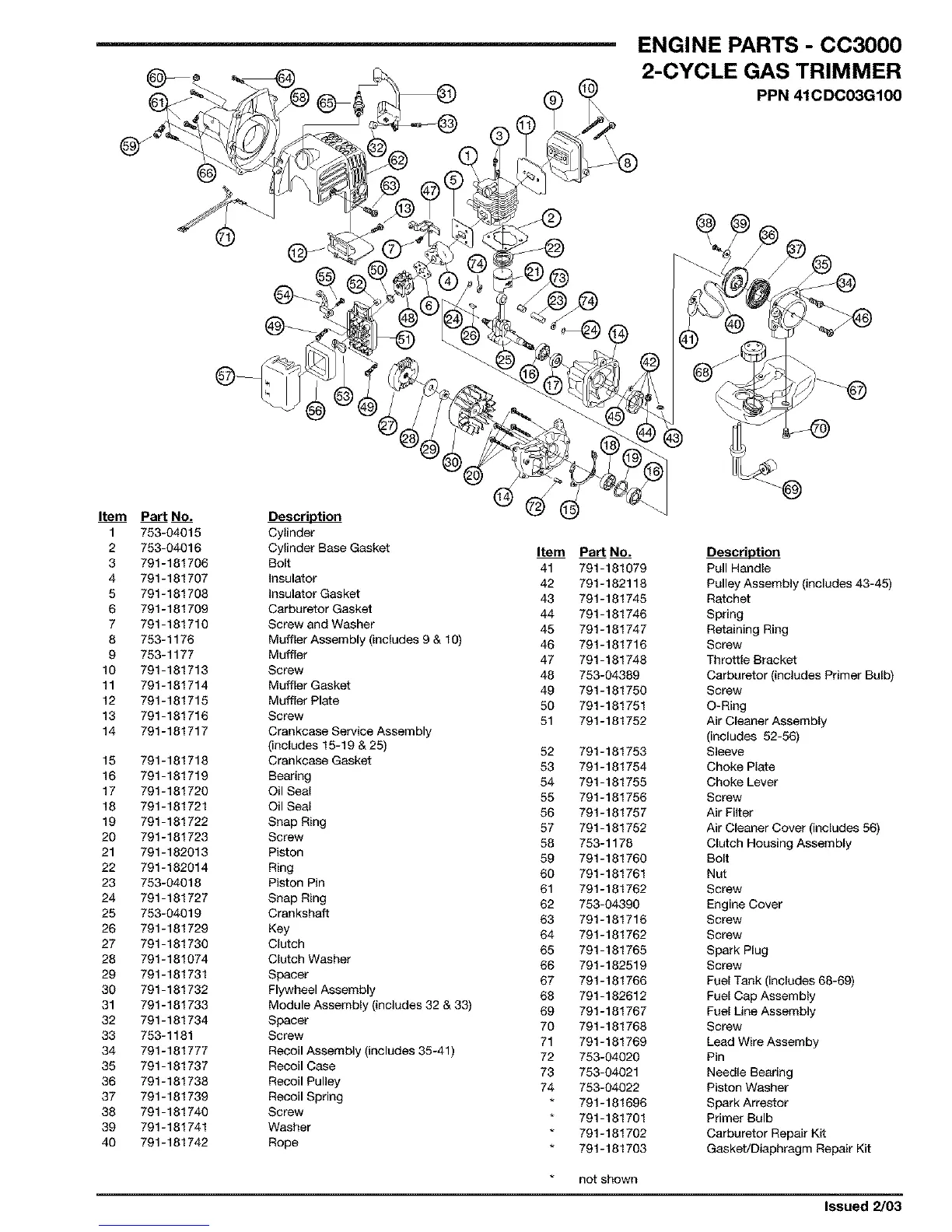

-- ENGINE PARTS - CC3000
2-CYCLE GAS TRIMMER
_ PPN 410DC03G100
@
Item Part No. Description
1 753-04015 Cylinder
2 753-04016 Cylinder Base Gasket Item Part NO. Description
3 791-181706 Bolt 41 791-181079 Pull Handle
4 791-181707 Insulator 42 791-182118 Pulley Assembly (includes 43-45)
5 791-181708 Insulator Gasket 43 791-181745 Ratchet
6 791-181709 Carburetor Gasket 44 791-181746 Spring
7 791-181710 Screw and Washer 45 791-181747 Retaining Ring
8 753-1176 Muffler Assembly (includes 9 & 10) 46 791-181716 Screw
9 753-1177 Muffler 47 791-181748 Throttle Bracket
10 791-181713 Screw 48 753-04389 Carburetor (includes Primer Bulb)
11 791-181714 Muffler Gasket 49 791-181750 Screw
12 791-181715 Muffler Plate 50 791-181751 O-Ring
13 791-181716 Screw 51 791-181752 Air Cleaner Assembly
14 791-181717 Crankcase Service Assembly (includes 52-56)
(includes 15-19 & 25) 52 791-181753 Sleeve
15 791-181718 Crankcase Gasket 53 791-181754 Choke Plate
16 791-181719 Bearing 54 791-181755 Choke Lever
17 791-181720 Oil Seal 55 791-181756 Screw
18 791-181721 Oil Seal 56 791-181757 Air Filter
19 791-181722 Snap Ring 57 791-181752 Air Cleaner Cover (includes 56)
20 791-181723 Screw 58 753-1178 Clutch Housing Assembly
21 791-182013 Piston 59 791-181760 Bolt
22 791-182014 Ring 60 791-181761 Nut
23 753-04018 Piston Pin 61 791-181762 Screw
24 791-181727 Snap Ring 62 753-04390 Engine Cover
25 753-04019 Crankshaft 63 791-181716 Screw
26 791-181729 Key 64 791-181762 Screw
27 791-181730 Clutch 65 791-181765 Spark Plug
28 791-181074 Clutch Washer 66 791-182519 Screw
29 791-181731 Spacer 67 791-181766 Fuel Tank (includes 68-69)
30 791-181732 Flywheel Assembly 68 791-182612 Fuel Cap Assembly
31 791-181733 Module Assembly (includes 32 & 33) 69 791-181767 Fuel Line Assembly
32 791-181734 Spacer 70 791-181768 Screw
33 753-1181 Screw 71 791-181769 Lead Wire Assemby
34 791-181777 Recoil Assembly (includes 35-41) 72 753-04020 Pin
35 791-181737 Recoil Case 73 753-04021 Needle Beadng
36 791-181738 Recoil Pulley 74 753-04022 Piston Washer
37 791-181739 Recoil Spring 791-181696 Spark Arrestor
38 791-181740 Screw 791-181701 Primer Bulb
39 791-181741 Washer 791-181702 Carburetor Repair Kit
40 791-181742 Rope 791-181703 Gasket/Diaphragm Repair Kit
not shown
